Outboard Rigging Guide - 2001 Fuel Management Gauge
Fuel Flow Meter
The meter displays fuel flow within one hour, at
the rate of current engine operation.
If two engines are installed on the boat, the meter
will display total fuel flow of both port and star-
board engines. It also displays “PS” indication at
the same time.
By pressing the Set button, the meter will display
fuel flow for the Starboard engine and indicate
“S.”
By pressing the Set button again, the meter will
display the fuel flow for the Port engine and indi-
cate this with a “P” showing.
By pressing the Set button again, the meter will
return to the total fuel flow indication (“PS”).
NOTE: The meter displays gallon/hour and
liter/hour depending upon operator preference.
Select the desired unit of measurement by setting
the selector switch on the back of the meter dur-
ing installation.
The fuel consumption meter and fuel economy
meter will display the same unit of measurement.
Fuel Consumption Meter
Push and release the Mode button until the indi-
cator on the face of the meter points to total
(“TTL”). The meter will display the total amount
of fuel consumed after the meter was last reset.
To reset the total fuel consumption to “0”, press
the Set and “Mode” buttons together.
NOTE: The fuel consumption is kept in memory
by battery power. The stored data will be lost if
the battery is disconnected.
Fuel Economy
Push and release the “Mode” button until the indi-
cator on the face of the meter points to “ECON.”
The meter will display the distance per liter or
gallon for the operator's reference when cruising.
NOTE: If dual-engines are installed on the boat,
the meter will display only the total fuel economy
of both engines.

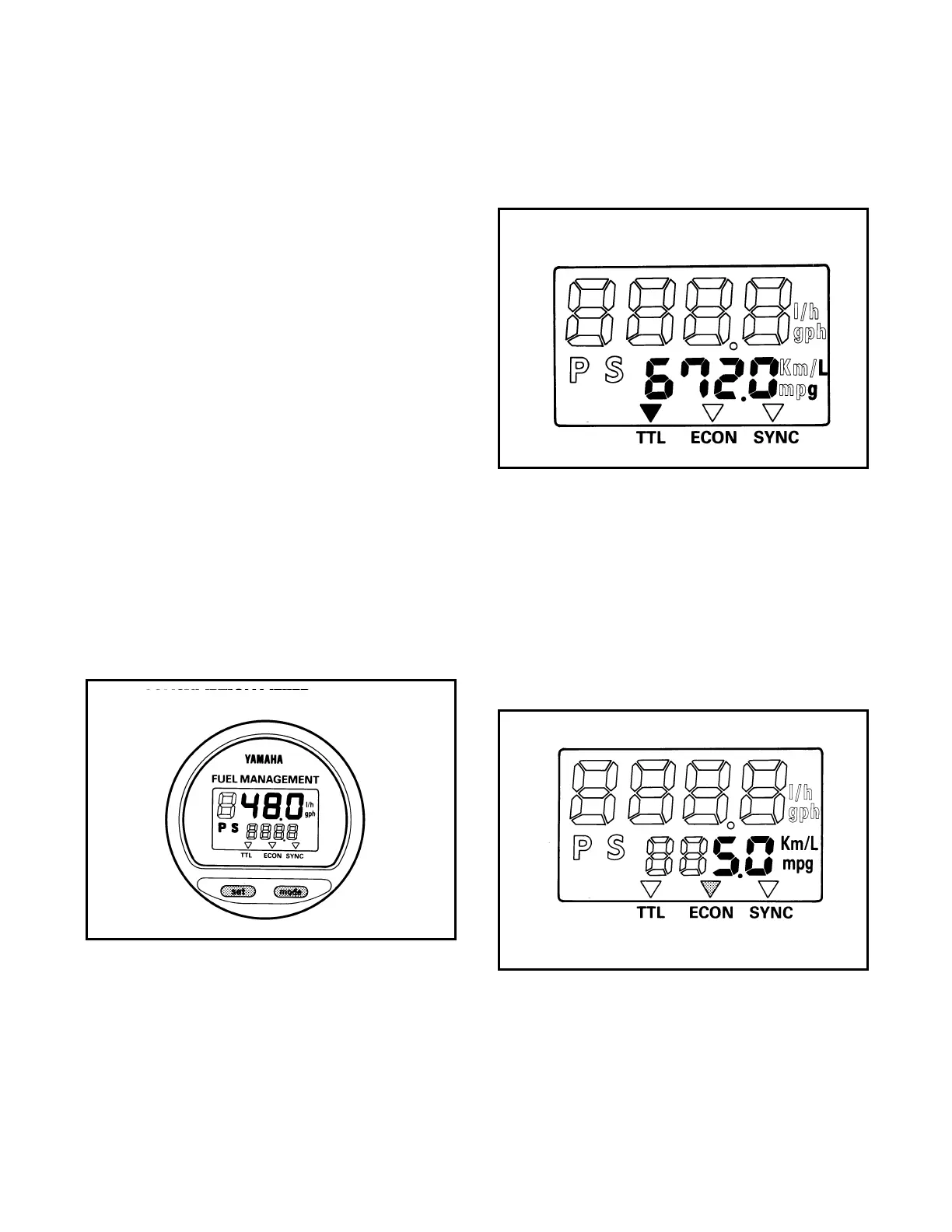

FUEL FLOW METER
FUEL CONSUMPTION METER
