6-1
Outboard Rigging Guide - 2001

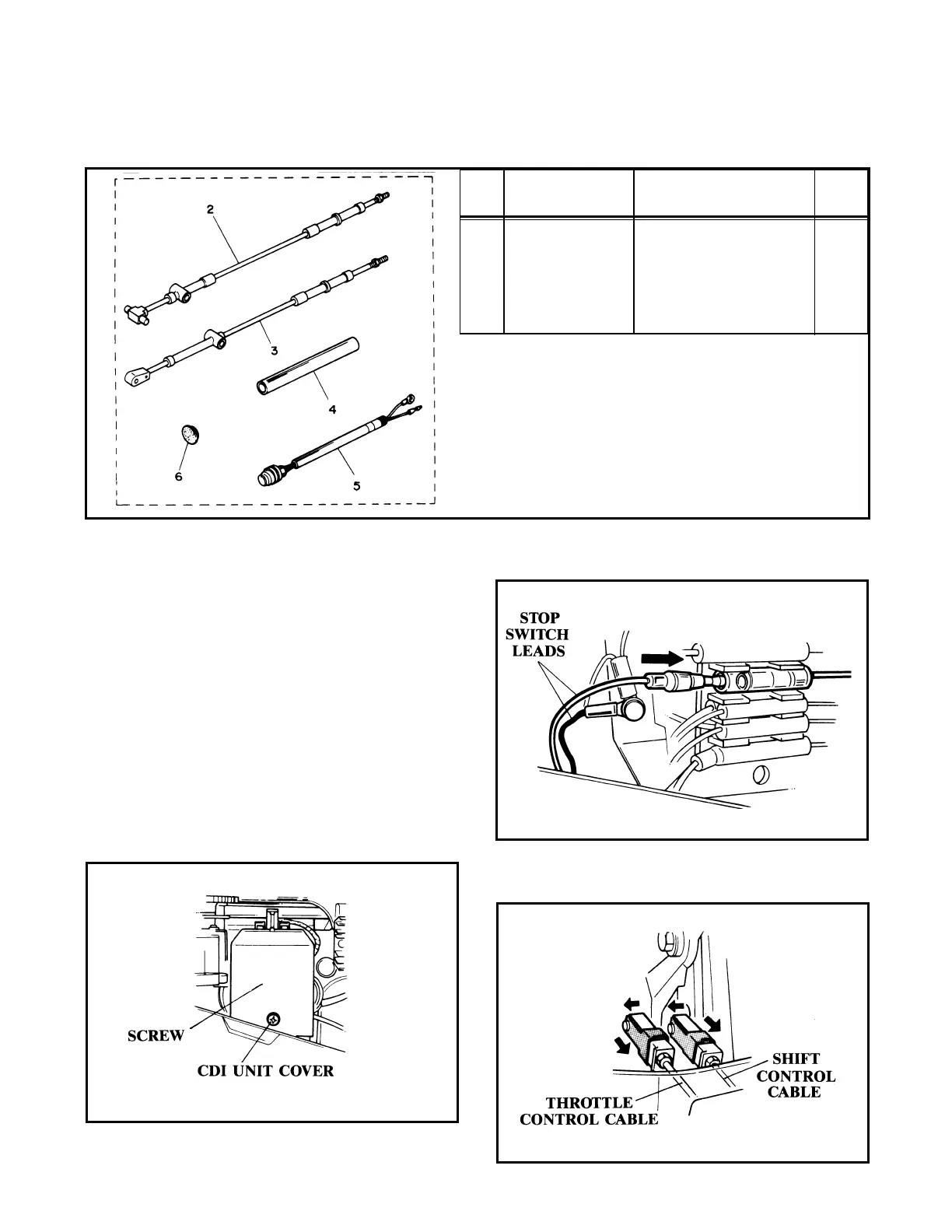

T9.9 REMOTE TILLER RIGGING KIT (6G8-W4831-01-00)
REF
NO PART NUMBER DESCRIPTION QTY.
1 Remote Tiller Rigging Kit 1
2 6G8-48311-11-00 • Cable 1
3 6G8-48321-10-00 • Cable 1
4 90445-20ME5-00 • Damper 1
5 6G8-82550-10-00 • Stop Switch Ass’y1
6 • Grommet
• Component parts
NOTE: This kit is intended to be used only with
the 2m (6.6 ft) cables provided.
The steering handle on the T9.9 models can be
removed from the motor and used as a remote
control unit for the throttle, shifter, and the stop
switch.
The remote tiller rigging kit provides the neces-
sary cables, hose (cable sheath), and stop switch
assembly to relocate the steering handle.
Removal
1. Remove the screw holding the CDI cover,
then remove the CDI cover.
2. Remove the stop switch leads (white and
black).
3. Disconnect the throttle control and shift con-
trol cables.
To Next Page
