Yamaha AR190 2019 User Manual

Trouble recovery
131

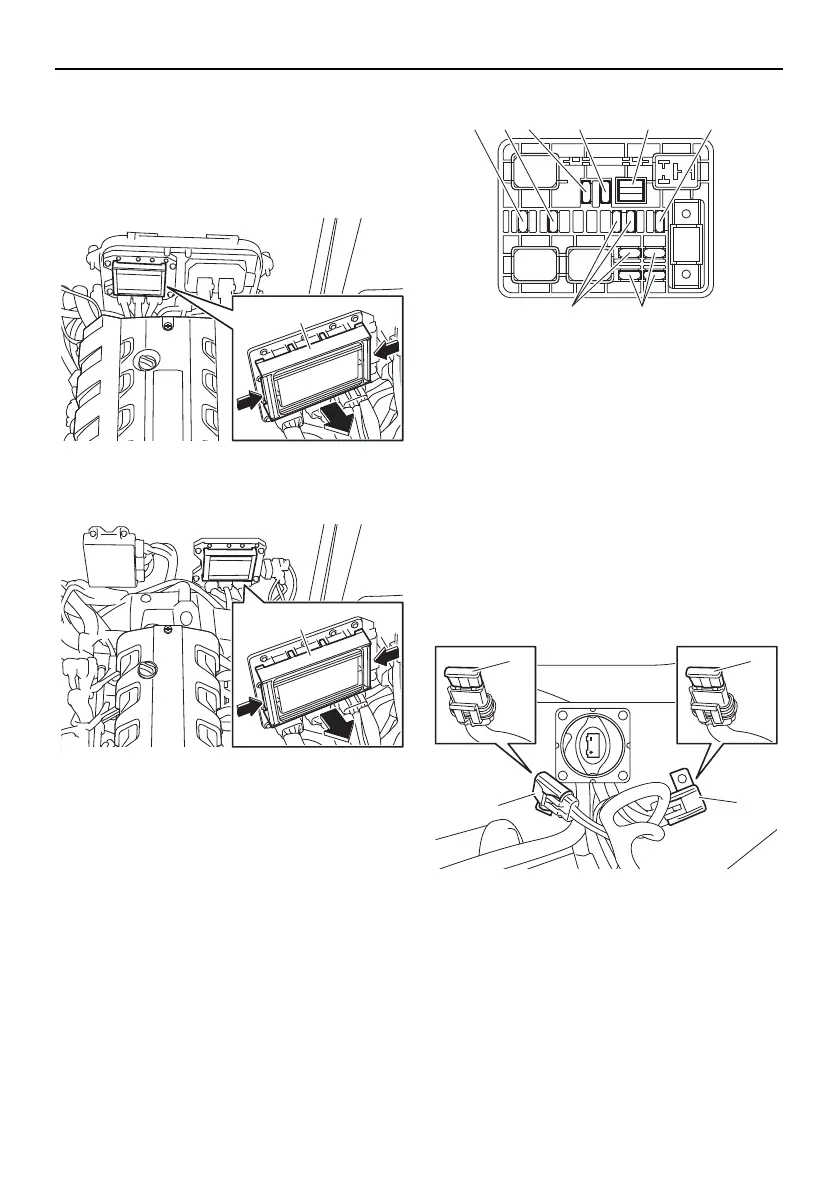

(2) While pushing both sides of the fuse box
cover inward, pull the cover toward the
bow and remove it.
3-star models
1 Fuse box cover
4-star models
1 Fuse box cover
1 Electronic throttle valve fuse
2 Fuel pump fuse
3 Main relay drive fuse
4 Main fuse
5 Fuse puller
6 Battery fuse
7 Spare fuse
8 Unused fuse
(3) When replacing an accessory fuse and
bilge pump fuse, remove the fuse holder.
(See page 63 for rear port seat removal
and installation procedures.)
1 Fuse holder
2 Accessory fuse
3 Bilge pump fuse
(4) Replace the blown fuse with the spare
fuse of the correct amperage by using
the fuse puller.
1
1
123 4 5 6
78
2 3
1
1
