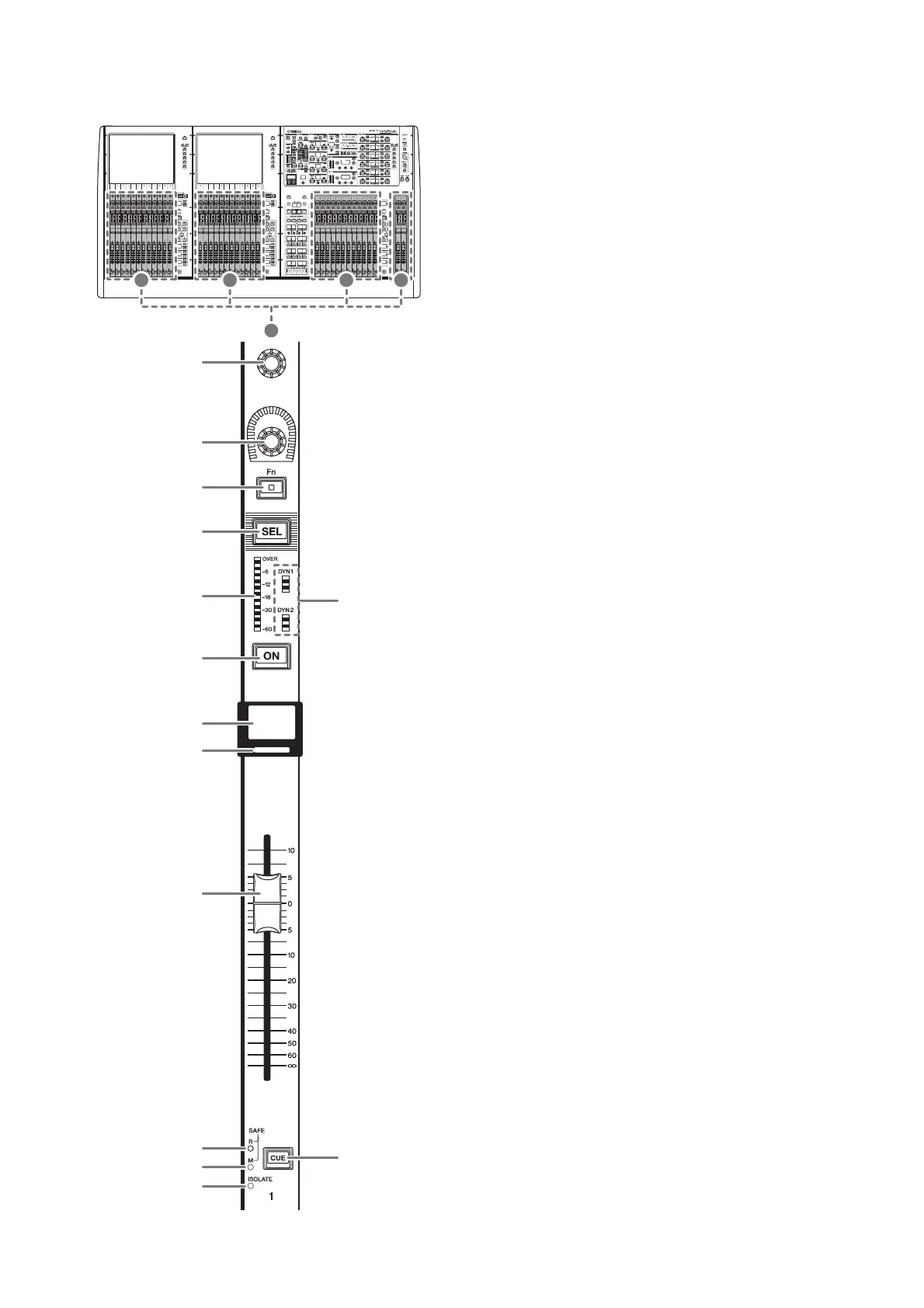

Channel Strip section (Bay L, Bay R, Bay C)
1 Screen encoder (Bay L and C only)
Controls the knob currently selected on the touch
screen. The knob function varies depending on the
screen currently displayed.
2 Channel strip encoder
Adjusts the gain, pan, and the other parameters of the
channel. You can assign five parameter functions
(selected from the following list) to this encoder, and
use the [UP]/[DOWN] keys to select the function.
• PAN/BALANCE
• ANALOG GAIN
• DIGITAL GAIN
•SELECTED SEND
• MIX1 SEND - MIX60 SEND
• MATRIX1 SEND - MATRIX24 SEND
•HPF FREQUENCY
•LPF FREQUENCY
• DYNAMICS1 THRESHOLD
• DYNAMICS2 THRESHOLD
•DELAY
•SILK TEXTURE
• SURROUND L-R PAN
• SURROUND F-R PAN
• SURROUND DIV
• SURROUND LFE
3 [Fn] key
Executes the function as assigned by the user. You
can assign one of the following functions:
•INPUT A/B
•ISOLATE
•ALTERNATE CUE
•ENCODER PARAM
•GC ON/OFF
• SURROUND CUE
•EQ A/B
• DYNAMICS1 A/B
• DYNAMICS2 A/B
4 [SEL] key
Enables you to select the channel that will be
controlled in the Channel Strip section or on the
display. When the channel is selected, the key LED
will light.
5 Meter LEDs
Indicate the channel level.
6 Dynamics LEDs
Indicate the status of Dynamics 1 and 2.
