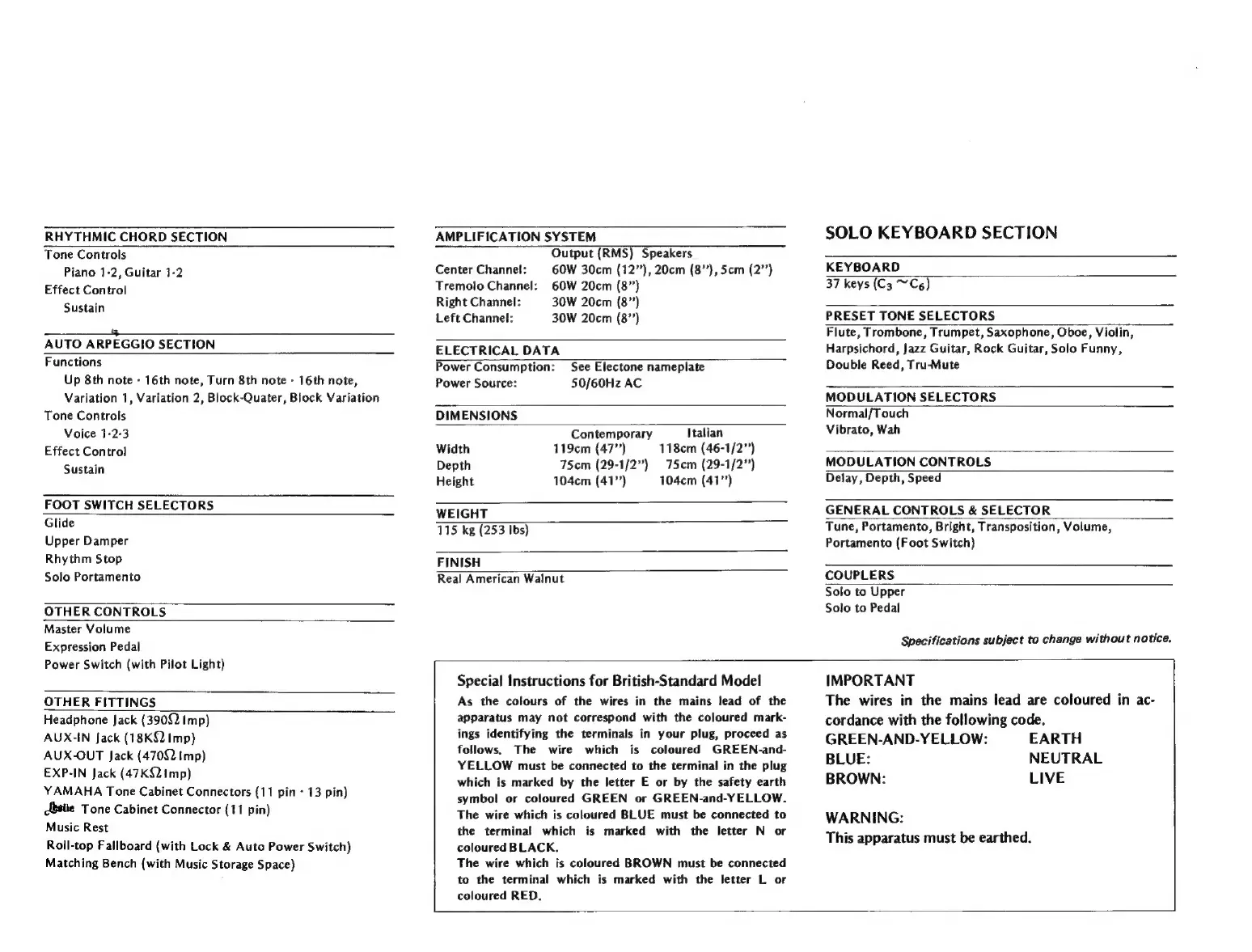

Yamaha D-85 - Solo Keyboard and System Specifications; Solo Keyboard and Modulation Specs; System, Power, and Wiring Information

RHYTHMIC CHORD SECTION
Tone Controls
Piano 1-2, Guitar 1-2
Effect Control
Sustain
AUTO ARPEGGIO SECTION
Functions
Up 8th note - 16th note, Turn 8th note - 16th note,
Variation 1, Variation 2, Block-Quater, Block Variation
Tone Controls
Voice 1-2-3
Effect Control
Sustain
FOOT SWITCH SELECTORS
Glide
Upper Damper
Rhythm Stop
Solo Portamento
AMPLIFICATION SYSTEM
Output (RMS) Speakers
Center Channel: 60W 30cm (12”), 20cm (8"), 5cm (2")
Tremolo Channel: 60W 20cm (8”)
Right Channel: 30W 20cm (8”)
Left Channel: 30W 20cm (8”’)
ELECTRICAL DATA
OTHER CONTROLS
Master Volume
Expression Pedal
Power Switch (with Pilot Light)
Power Consumption: See Electone nameplate
Power Source: 50/60Hz AC
DIMENSIONS
Contemporary Italian
Width 119cm (47”) 118cm (46-1/2")
Depth 75cm (29-1/2") 75cm (29-1/2")
Height 104cm (41") 104cm (41")
WEIGHT
115 kg (253 Ibs)
SOLO KEYBOARD SECTION
KEYBOARD
37 keys (Cs ^" Ce)
PRESET TONE SELECTORS
Flute, Trombone, Trumpet, Saxophone, Oboe, Violin,
Harpsichord, Jazz Guitar, Rock Guitar, Solo Funny,
Double Reed, Tru-Mute
MODULATION SELECTORS
Normal/Touch
Vibrato, Wah
MODULATION CONTROLS
Delay, Depth, Speed
GENERAL CONTROLS & SELECTOR
Tune, Portamento, Bright, Transposition, Volume,
Portamento (Foot Switch)
OTHER FITTINGS
Headphone Jack (39092 Imp)
AUX-IN Jack (18KQ Imp)
AUX-OUT Jack (470Q2 Imp)
EXP-IN Jack (47KQ. Imp)
YAMAHA Tone Cabinet Connectors (11 pin - 13 pin)
Bele Tone Cabinet Connector (11 pin)
Music Rest
Roll-top Fallboard (with Lock & Auto Power Switch)
Matching Bench (with Music Storage Space)
FINISH
Real American Walnut COUPLERS
Solo to Upper
Solo to Pedal
Specifications subject to change without notice.
Special Instructions for British-Standard Model IMPORTANT
As the colours of the wires in the mains lead of the
apparatus may not correspond with the coloured mark-
ings identifying the terminals in your plug, proceed as
follows. The wire which is coloured GREEN-and-
YELLOW must be connected to the terminal in the plug
which is marked by the letter E or by the safety earth
symbol or coloured GREEN or GREEN-and-YELLOW.
The wire which is coloured BLUE must be connected to
the terminal which is marked with the letter N or
coloured BLACK.
The wire which is coloured BROWN must be connected
to the terminal which is marked with the letter L or
coloured RED.
The wires in the mains lead are coloured in ac-
cordance with the following code.
GREEN-AND-YELLOW: EARTH
BLUE: NEUTRAL
BROWN: LIVE
WARNING:
This apparatus must be earthed.
