Yamaha DM2000 Service Manual

23
DM2000

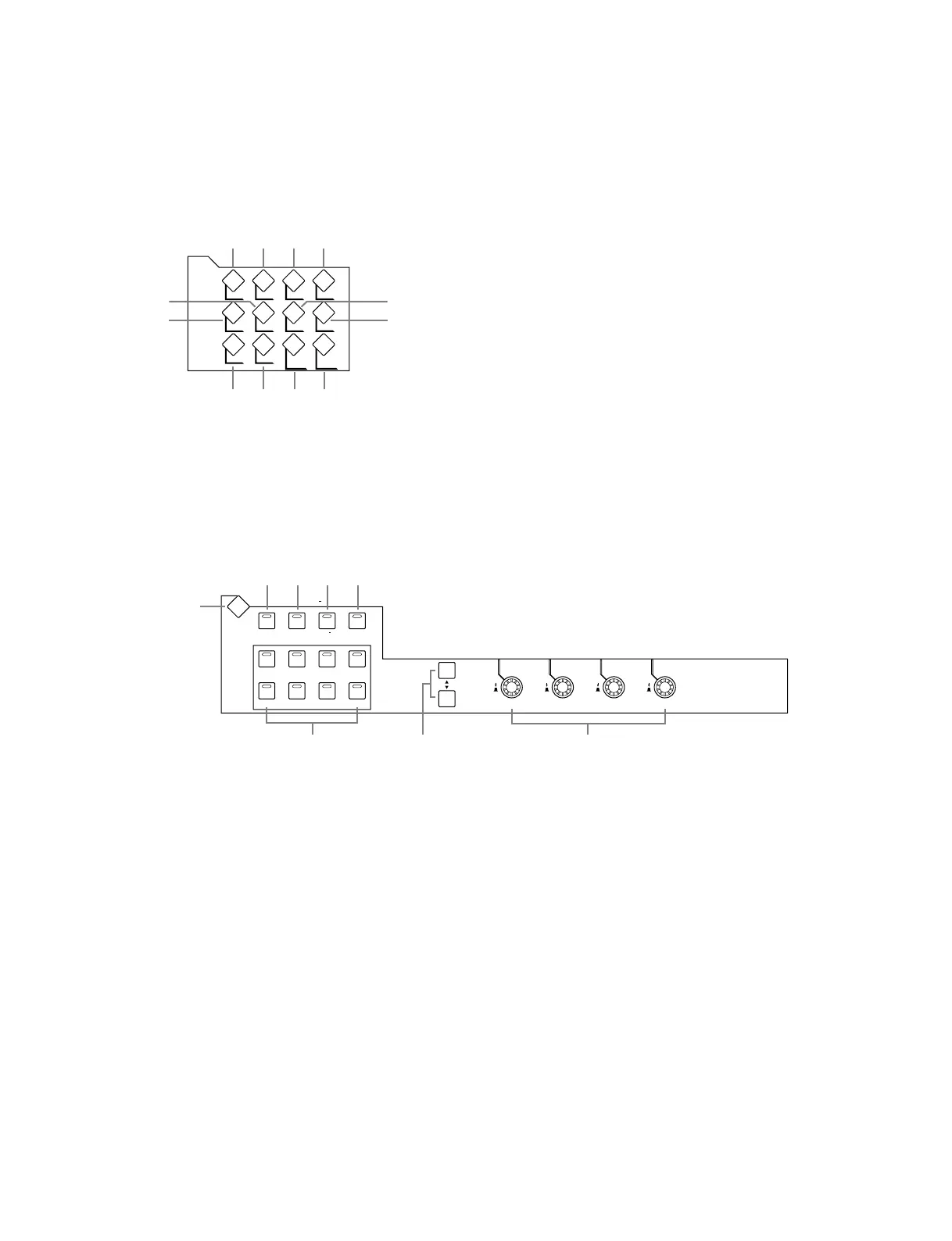

DISPLAY ACCESS
q [DATA] button
w [DIO] button
e [SETUP] button
r [UTILITY] button
t [REMOTE] button
y [MIDI] button
u [METER] button
i [VIEW] button
o [PAIR] button
!0 [GROUP] button
!1 [INPUT PATCH] button
!2 [OUTPUT PATCH] button
DATA DIO SETUP UTILITY
MIDI REMOTE METER VIEW
PAIR GROUP INPUT
PATCH
OUTPUT
PATCH
o
y
t
i
u
q w e r
DISPLAY ACCESS
!0
!2!1
EFFECTS/PLUG-INS
q EFFECTS/PLUG-INS [DISPLAY] button
w [INTERNAL EFFECTS] button
e [GRAPHIC EQUALIZERS] button
r [PLUG-INS] button
t [CHANNEL INSERTS] button
y EFFECTS/PLUG-INS [1]–[8] buttons
u Parameter Up/Down buttons
i Parameter controls [1]–[4]
INTERNAL
EFFECTS
1234
5678
CHANNEL
INSERTS
GRAPHIC
EQUALIZERS
DISPLAY
PLUG INS
w e r t
q
EFFECTS / PLUG INS
y
1234
i
u

Yamaha DM2000 Specifications

General

Type	Digital Mixing Console
Channels	96
Sampling Rate	44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz
Bit Depth	24-bit
Aux Sends	12
Matrix	8 x 8
EQ Bands	4-band parametric
Word Clock	Yes
Effects	Internal Effects Processors
Digital I/O	AES/EBU, ADAT
Display	LCD
