Yamaha DM2000 Service Manual

DM2000
26

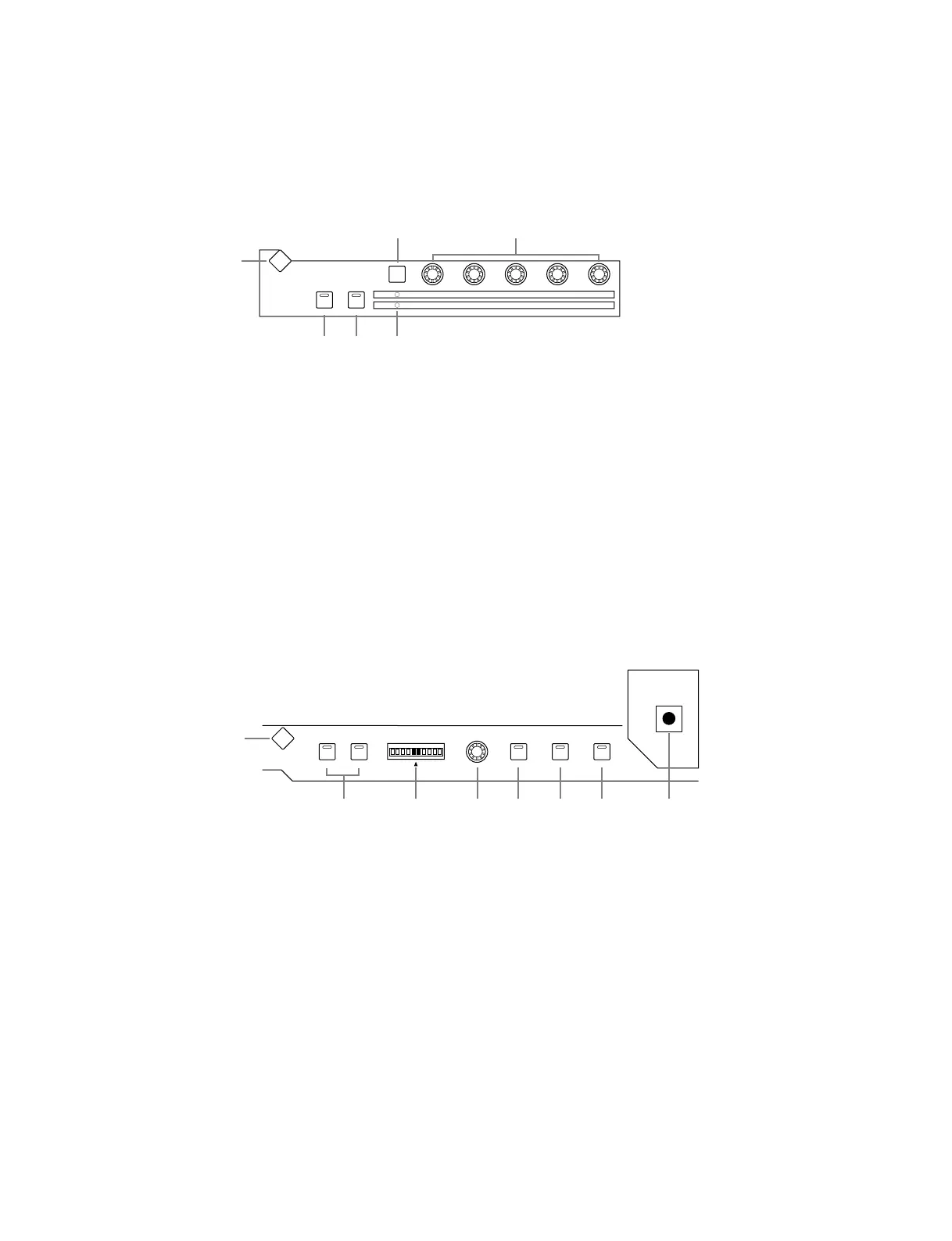

DYNAMICS
q DYNAMICS [DISPLAY] button
w [GATE/COMP] button
e [THRESHOLD], [RANGE], [ATTACK], [DECAY],
[HOLD] ([THRESHOLD], [RATIO], [ATTACK],
[RELEASE], [GAIN]) controls
r [GATE ON] button
t [COMP ON] button
y [GATE/COMP] indicators
GATE ON COMP ON
GATE
COMP
RANGE
RATIO
ATTAC K
ATTAC K
DECAY
RELEASETHRESHOLD
THRESHOLD HOLD
DYNAMICS
GATE / COMP
GAIN
DISPLAY
q
r t y
w e
LINK GRAB EFFECT
L
EVEN
R
L
R
PAN / SURROUND
DISPLAY
ODD
q
w e r t y u i
q PAN/SURROUND [DISPLAY] button
w [L] & [R] buttons
e PAN display
r PAN control
t [LINK] button
y [GRAB] button
u [EFFECT] button
i Joystick
PAN/SURROUND

Yamaha DM2000 Specifications

General

Type	Digital Mixing Console
Channels	96
Sampling Rate	44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz
Bit Depth	24-bit
Aux Sends	12
Matrix	8 x 8
EQ Bands	4-band parametric
Word Clock	Yes
Effects	Internal Effects Processors
Digital I/O	AES/EBU, ADAT
Display	LCD
