Yamaha DM2000 Service Manual

27
DM2000
CHANNEL
COPY
PASTE
EQ ON
AT T.
dB
Hz
kHz
HIGH
GAIN
Q
FREQUENCY
dB
Hz
kHz
GAIN
Q
FREQUENCY
dB
Hz
kHz
GAIN
Q
FREQUENCY
dB
Hz
kHz
GAIN
Q
FREQUENCY
DISPLAY
HIGH MIDLOW MID
q
ew tr yu
EQUALIZER
LOW
EQUALIZER

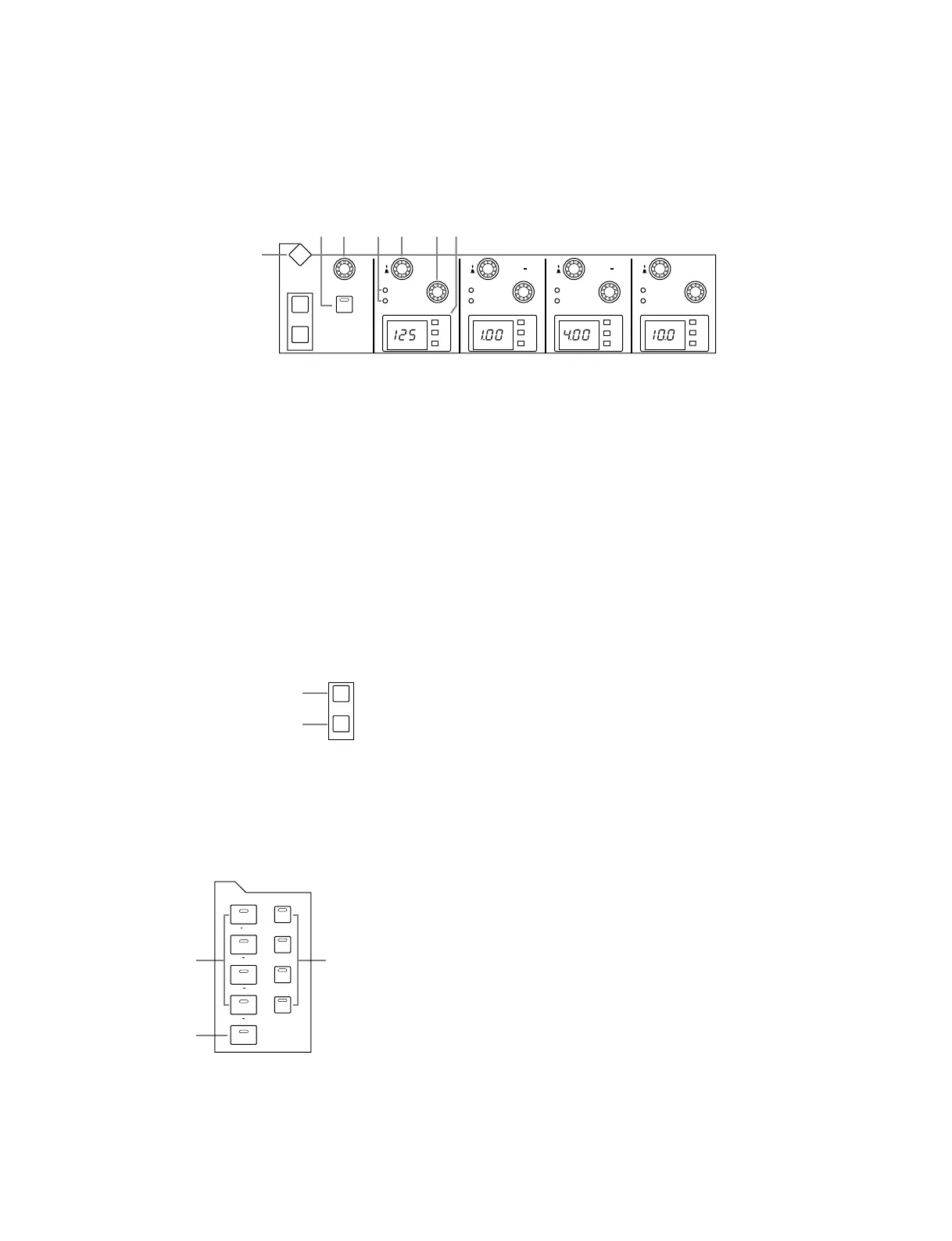

q EQUALIZER [DISPLAY] button
w [EQ ON] button
e [ATT] control
r [FREQUENCY/Q] indicators
t [FREQUENCY/Q] controls
y EQ [GAIN] controls
u EQ displays
CHANNEL
COPY
PASTE
q
w
CHANNEL (COPY/PASTE)
q [COPY] button
w [PASTE] button
q e
w
REMOTE 1
REMOTE 2
REMOTE 3
REMOTE 4
LAYER
MASTER
124
25 48
49 72
73 96
LAYER
q [1–24], [25–48], [49–72] &
[73–96] buttons
w [MASTER] button
e [REMOTE 1]–[REMOTE 4] buttons

Yamaha DM2000 Specifications

General

Type	Digital Mixing Console
Channels	96
Sampling Rate	44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz
Bit Depth	24-bit
Aux Sends	12
Matrix	8 x 8
EQ Bands	4-band parametric
Word Clock	Yes
Effects	Internal Effects Processors
Digital I/O	AES/EBU, ADAT
Display	LCD
