Yamaha DM2000 Service Manual

DM2000
30
INC
REC
REW
FF STOP PLAY
DEC
BACK FORWARD
SHUTTLE
DISPLAY HISTORY
SCRUB
y
o
u
i
!0
q w e r t
!1 !2
ENTER
q [REW] button
w [FF] button
e [STOP] button
r [PLAY] button
t [REC] button
y DISPLAY HISTORY [BACK]/
[FORWARD] buttons
u [SHUTTLE] button
i [SCRUB] button
o [–DEC] & [+INC] buttons
!0 [ENTER] button
!1 Parameter wheel
!2 Cursor buttons

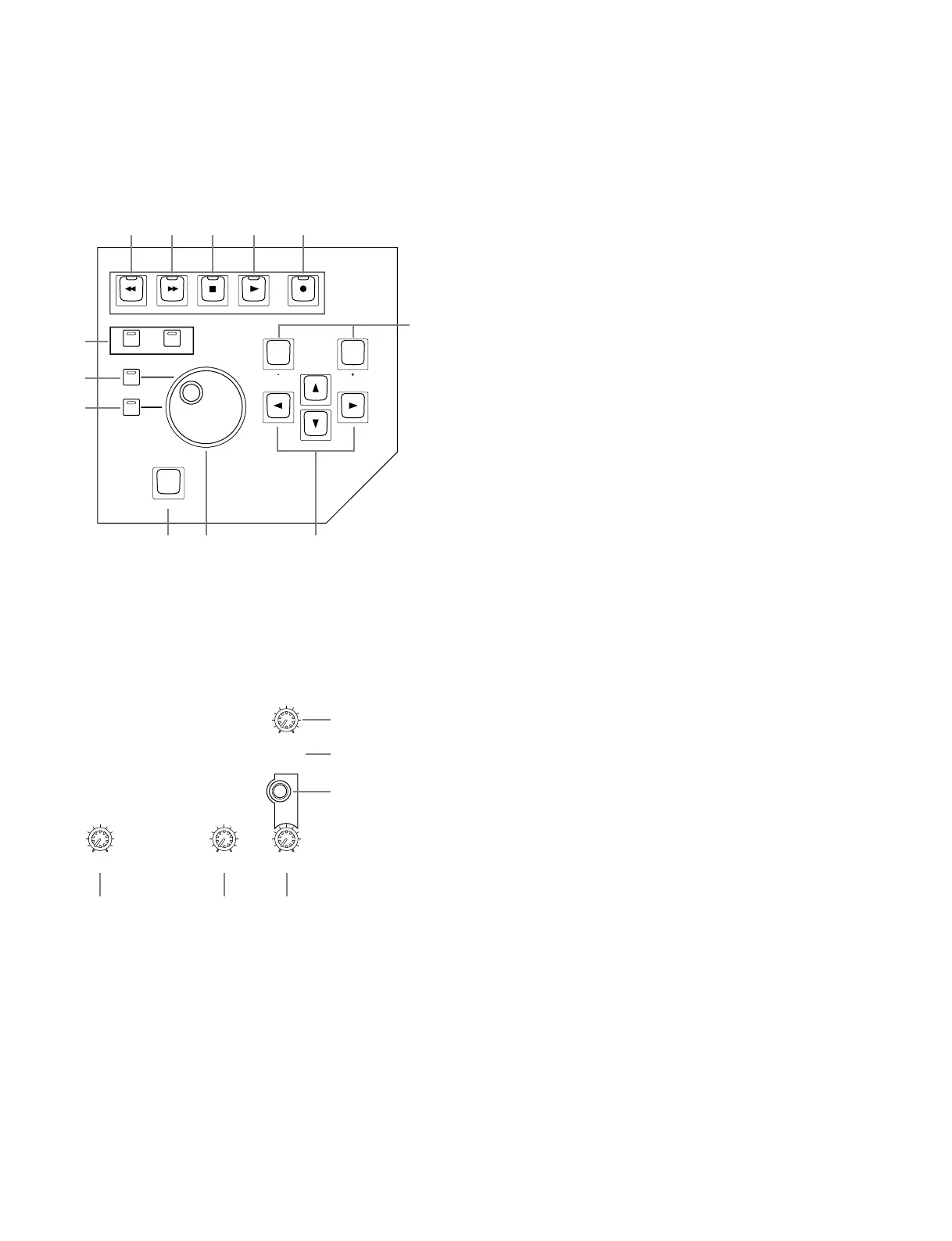

Data Entry & Transport
q [SMALL TRIM] control
w [STUDIO LEVEL] control
e [PHONES LEVEL] control
r [PHONES] jack
t Talkback mic
y [TALKBACK LEVEL] control
Monitor, Phones & Talkback Section
TALKBACK LEVEL
PHONES
LEVEL
PHONES
STUDIO
LEVEL
010 010
010
SMALL
TRIM
0010
r
y
t
q w e

Yamaha DM2000 Specifications

General

Type	Digital Mixing Console
Channels	96
Sampling Rate	44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz
Bit Depth	24-bit
Aux Sends	12
Matrix	8 x 8
EQ Bands	4-band parametric
Word Clock	Yes
Effects	Internal Effects Processors
Digital I/O	AES/EBU, ADAT
Display	LCD
