Yamaha DM2000 Service Manual

31
DM2000

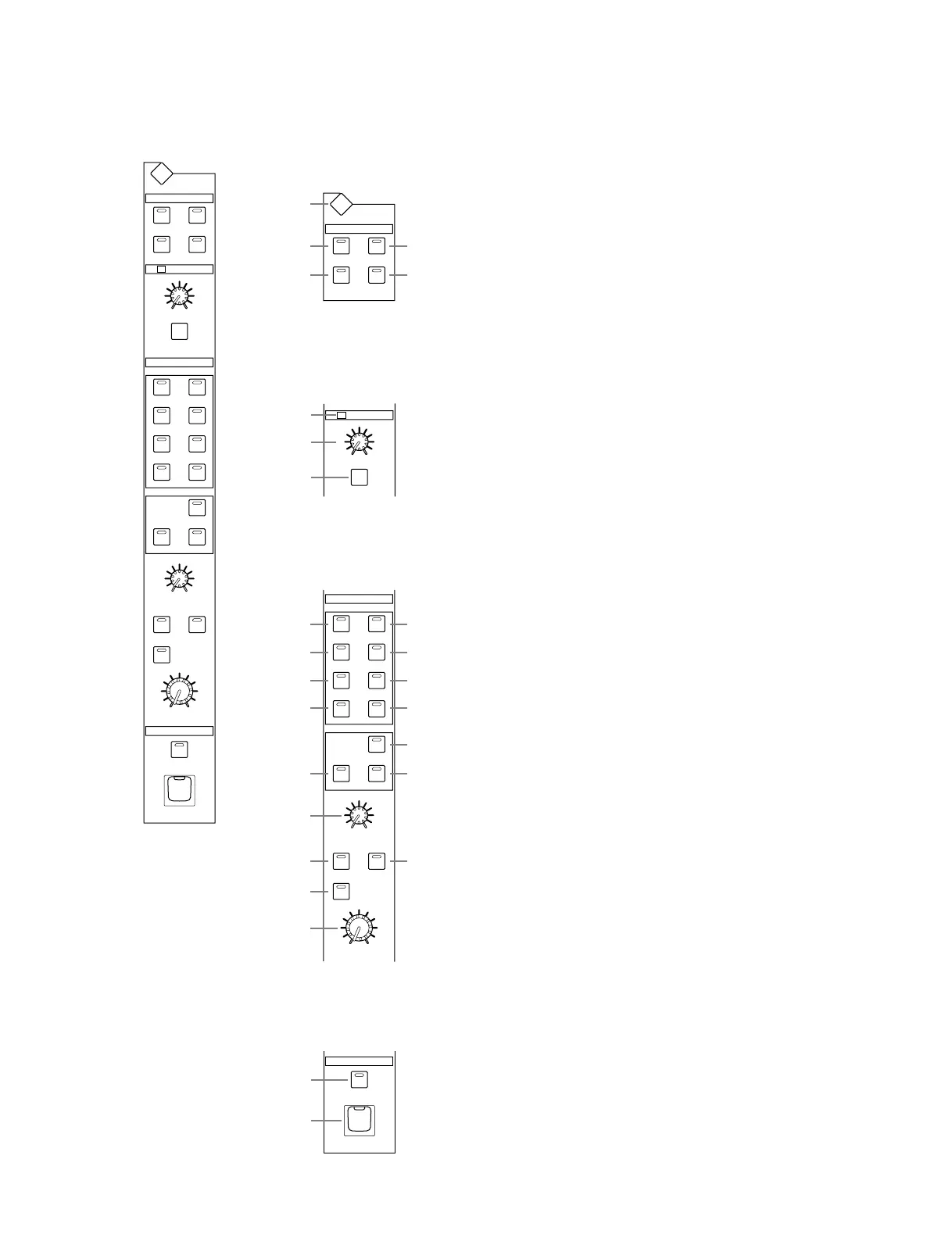

MONITOR Section
q MONITOR [DISPLAY] button
w [CONTROL ROOM] button
e [STEREO] button
r [AUX 11] button
t [AUX 12] button
STUDIO
STUDIO
CONTROL
ROOM
STEREO
AUX 11 AUX 12
CONTROL ROOM
SOLO
CLEAR
SOLO CONTRAST
2TR D1 2TR A1
2TR D2 2TR A2
2TR D3 STEREO
ASSIGN 1 ASSIGN 2
ASSIGN 1 ASSIGN 2
DIMMER
SMALL
MONO
SURROUND
MONITOR LEVEL
SLATE
TALKBACK
MONITOR
CONTROL ROOM LEVEL
BUS
TALKBACK
DISPLAY
STEREO
SURROUND
100
STUDIO
CONTROL
ROOM
STEREO
AUX 11 AUX 12
MONITOR
DISPLAY
q
w
r
e
t
q [SOLO] indicator
w [SOLO CONTRAST] control
e [CLEAR] button
SOLO
SOLO
CLEAR
SOLO CONTRAST
q
w
e
CONTROL ROOM
2TR D1 2TR A1
2TR D2 2TR A2
2TR D3 STEREO
ASSIGN 1 ASSIGN 2
ASSIGN 1 ASSIGN 2
DIMMER
SMALL
MONO
SURROUND
MONITOR LEVEL
CONTROL ROOM LEVEL
BUS
STEREO
SURROUND
100
q r
w t
e y
u i
!0
!2
!1
!3
!5
!6
!4
o
CONTROL ROOM
q STEREO [2TR D1] button
w STEREO [2TR D2] button
e STEREO [2TR D3] button
r STEREO [2TR A1] button
t STEREO [2TR A2] button
y [STEREO] button
u STEREO [ASSIGN 1] button
i STEREO [ASSIGN 2] button
o SURROUND [BUS] button
!0 SURROUND [ASSIGN 1] button
!1 SURROUND [ASSIGN 2] button
!2 [SURROUND MONITOR LEVEL]
control
!3 [MONO] button
!4 [DIMMER] button
!5 [SMALL] button
!6 [CONTROL ROOM LEVEL]
control
q [SLATE] button
w [ TALKBACK] button
TALKBACK
SLATE
TALKBACK
TALKBACK
q
w

Yamaha DM2000 Specifications

General

Type	Digital Mixing Console
Channels	96
Sampling Rate	44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz
Bit Depth	24-bit
Aux Sends	12
Matrix	8 x 8
EQ Bands	4-band parametric
Word Clock	Yes
Effects	Internal Effects Processors
Digital I/O	AES/EBU, ADAT
Display	LCD
