Yamaha DM2000 Service Manual

DM2000
58
This section explains how to install I/O Cards.

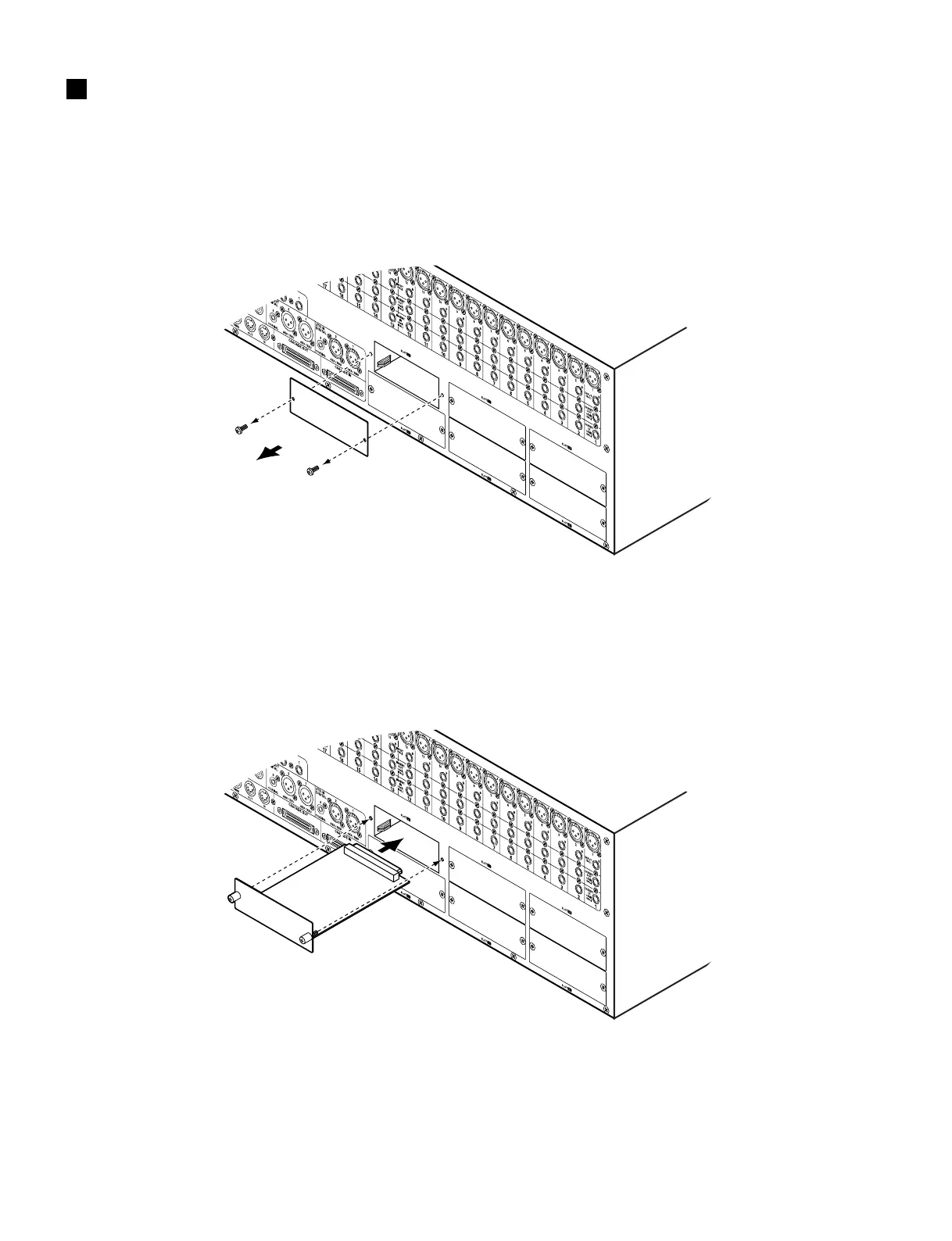

1 Turn off the DM2000.
2 Undo the two fixing screws and remove the slot
cover, as shown below.
INSTALLING I/O CARDS
Keep the cover and fixing screws in a safe place for future use.
3 Insert the card between the guide rails and slide it
all the way into the slot, as shown below. You may
have to push firmly to plug the card into the inter-
nal connector.
4 Secure the card using the attached thumbscrews.
Do not leave them loose, as the card will not be
grounded correctly, which may cause the DM2000
to malfunction.
You can check which I/O Cards are installed on the Word
Clock Select page

Yamaha DM2000 Specifications

General

Type	Digital Mixing Console
Channels	96
Sampling Rate	44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz
Bit Depth	24-bit
Aux Sends	12
Matrix	8 x 8
EQ Bands	4-band parametric
Word Clock	Yes
Effects	Internal Effects Processors
Digital I/O	AES/EBU, ADAT
Display	LCD
