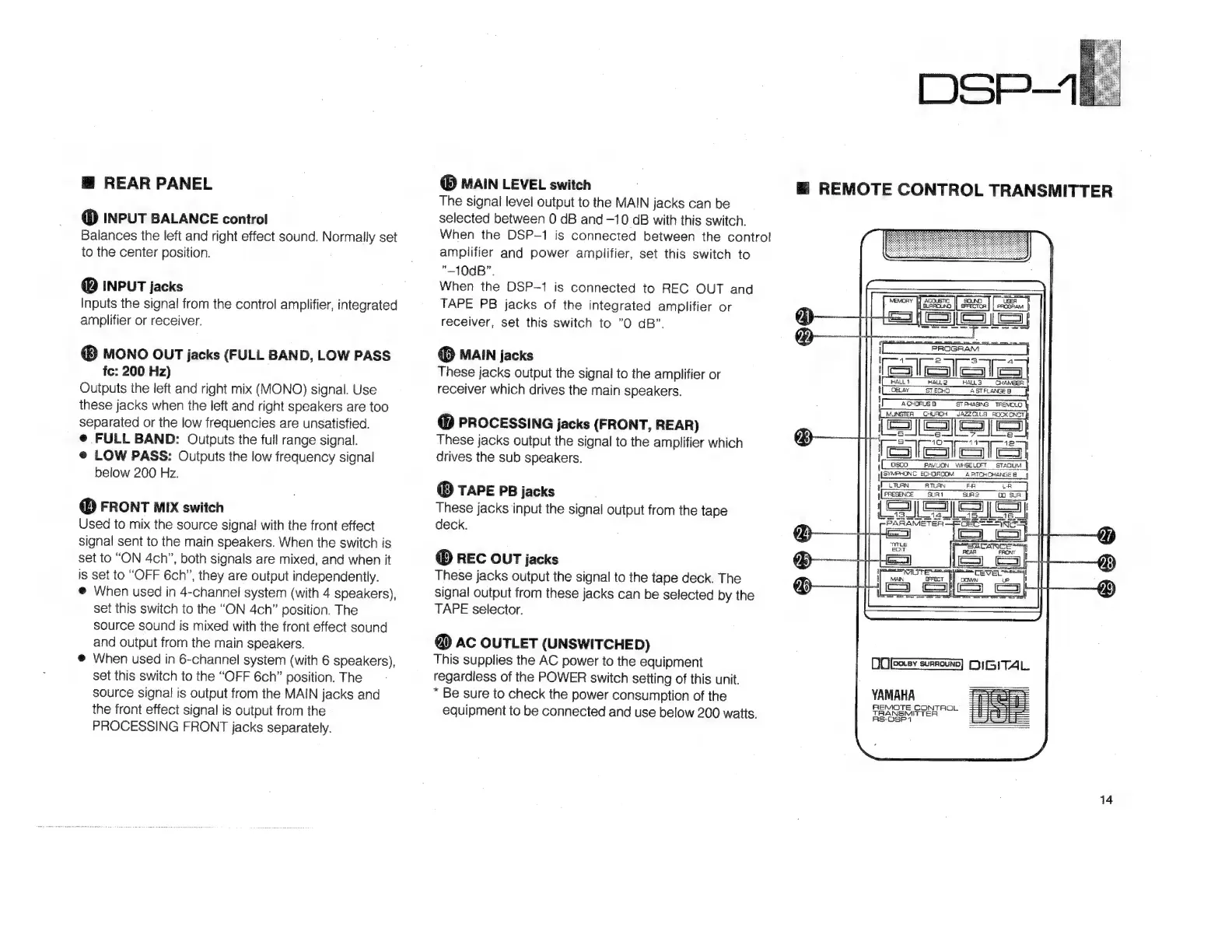

= REAR PANEL
@ INPUT BALANCE control
Balances the left and right effect sound. Normally set
to the center position.
@ INPUT jacks
Inputs the signal from the control amplifier, integrated
amplifier or receiver.
@® MONO OUT jacks (FULL BAND, LOW PASS
fc: 200 Hz)
Outputs the left and right mix (MONO) signal. Use
these jacks when the left and right speakers are too
separated or the low frequencies are unsatisfied.
è FULL BAND: Outputs the full range signal.
@ LOW PASS: Outputs the low frequency signal
below 200 Hz.
@ FRONT MIX switch
Used to mix the source signal with the front effect
Signal sent to the main speakers. When the switch is
set to “ON 4ch”, both signals are mixed, and when it
is set to “OFF 6ch”, they are output independently.
@ When used in 4-channel system (with 4 speakers),
set this switch to the “ON 4ch” position. The
source sound is mixed with the front effect sound
and output from the main speakers.
@
When
used
in
6-channel
system
(with
6
speakers),
set
this
switch
to
the
“OFF
6ch”
position.
The
source
signal
is
output
from
the
MAIN
jacks
and
the
front
effect
signal
is
output
from
the-
PROCESSING
FRONT
jacks
separately.
@® MAIN LEVEL switch
The
signal
level
output
to
the
MAIN
jacks
can
be
selected
between
0
dB
and
—10
dB
with
this
switch.
When
the
DSP-1
is
connected
between
the
control
amplifier
and
power
amplifier,
set
this
switch
to
"—10dB”.
When
the
DSP-1
is
connected
to
REC
OUT
and
TAPE
PB
jacks
of
the
integrated
amplifier
or
receiver,
set
this
switch
to
”0
dB”.
@ MAIN jacks
These jacks output the signal to the amplifier or
receiver which drives the main speakers.
(>
PROCESSING
jacks
(FRONT,
REAR)
These
jacks
output
the
signal
to
the
amplifier
which
drives
the
sub
speakers.
@D TAPE PB jacks
These
jacks
input
the
signal
output
from
the
tape
deck.
@ REC OUT jacks
These
jacks
output
the
signal
to
the
tape
deck.
The
signal
output
from
these
jacks
can
be
selected
by
the
TAPE
selector.
@ AC OUTLET (UNSWITCHED)
This supplies the AC power to the equipment
regardiess
of
the
POWER
switch
setting
of
this
unit.
*
Be
sure
to
check
the
power
consumption
of
the
equipment
to
be
connected
and
use
below
200
watts.
DSP
E
REMOTE
CONTROL
TRANSMITTER
23
f: HAIE I
f f DISCO PAVILON WHSELOFT STADIUM
pLEMEHONC ECHOROOM __APTOHOHANGEE $
i L TURN R TLAN F-RA L-R
PRESENCE =] <= cS SUR
D- 28
@)-
-®
DO [eccey surni) ISITA
YAMAHA
REMOTE CONTROL, i
TRANSMITTE
RS-DS :
