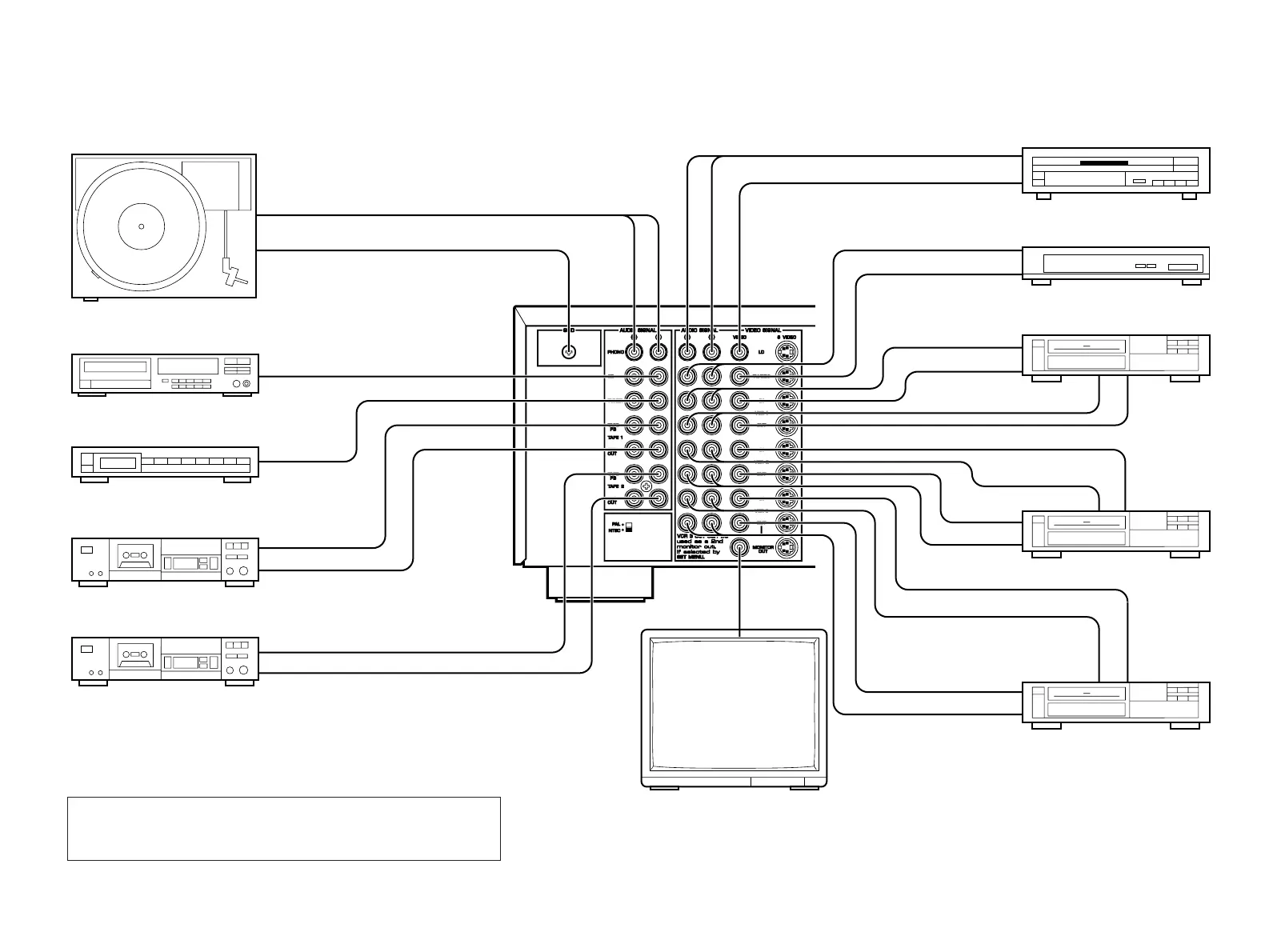

CONNECTING AUDIO/VIDEO SOURCE EQUIPMENTS TO THIS UNIT
If you wish to connect a second monitor TV (or a projector) to this
unit, you can switch the VCR 3 VIDEO OUT jack (and S VIDEO jack
also) to a second monitor out jack. (See page 27.)
14
OUTPUT
OUTPUT
OUTPUT
LINE OUT
LINE IN
AUDIO OUT
VIDEO OUT
AUDIO OUT
VIDEO OUT
VIDEO IN
AUDIO IN
VIDEO IN
AUDIO IN
VIDEO OUT
AUDIO OUT
AUDIO OUT
VIDEO OUT
AUDIO OUT
VIDEO OUT
AUDIO OUT
VIDEO OUT
LINE OUT
LINE IN
GND
Turntable
CD player
Tuner
Tape deck 1
Tape deck 2
Monitor TV
Video disc player
TV/Satellite tuner
Video cassette recorder 1
Video cassette recorder 2
Video cassette recorder 3

Yamaha DSP-A2070 Specifications

General

Number of Channels	7
Total Harmonic Distortion	0.015%
Damping Factor	80
Digital Inputs	Coaxial, Optical
Video Connections	Composite, S-Video
Channel Separation	60 dB
Speaker Load Impedance	4 ohms to 16 ohms
Signal-to-Noise Ratio	100dB (CD)
