RX-V530/RX-V530RDS/HTR-5550/HTR-5550RDS/DSP-AX530
RX-V430/RX-V430RDS/HTR-5540/HTR-5540RDS/DSP-AX430
6
56
FUNCTION (9) P. C. B.
(Lead Type Device)
FUNCTION (8) P. C. B.
(Lead Type Device)
FUNCTION (10) P. C. B.
(Lead Type Device)
FUNCTION (6) P. C. B.
(Lead Type Device)
FUNCTION (7) P. C. B.
(Lead Type Device)
FUNCTION (5) P. C. B.
(Lead Type Device)
FUNCTION (7) P. C. B.
(Surface Mount Device)
AC3 E E AC3 AC3 AC2 AC2 E E AC2 AC3 AC2
AC3
E E
AC3 AC3 AC2 AC2
E E
AC2 AC3 AC2
MAIN (4)
Power Transformer
Power Transformer
Power Transformer
-B3
DG
+B3
-B2
E
+B2
MAIN (2)
PRY MG S12
AC Power Cord
BR
BR
GY
GY
RE
WH
BE
YE
BR
BE
WH
OR
YE
RE
OR
BR
240V 1-2/5-6
220V 2-3/6-7
110V 3-4/7-8
120V 4-5/8-1
VOLTAGE SELECTOR
R, T models
R, T models
BR
GY
BE BE
U, C, A, B, G, L, K, J models
FUNCTION
(1)
FUNCTION
(2)
VCROUT L
E
SW
GND SW
MTSW
DVD R
V-AUX R
E
D-TV R
D-TV L
V-AUX L
VCRIN R
VCRIN L
VCROUT R
DVD L
VCROUT L
E
SW
GND SW
MTSW
DVD R
V-AUX R
E
D-TV R
D-TV L
V-AUX L
VCRIN R
VCRIN L
VCROUT R
DVD L
K model only

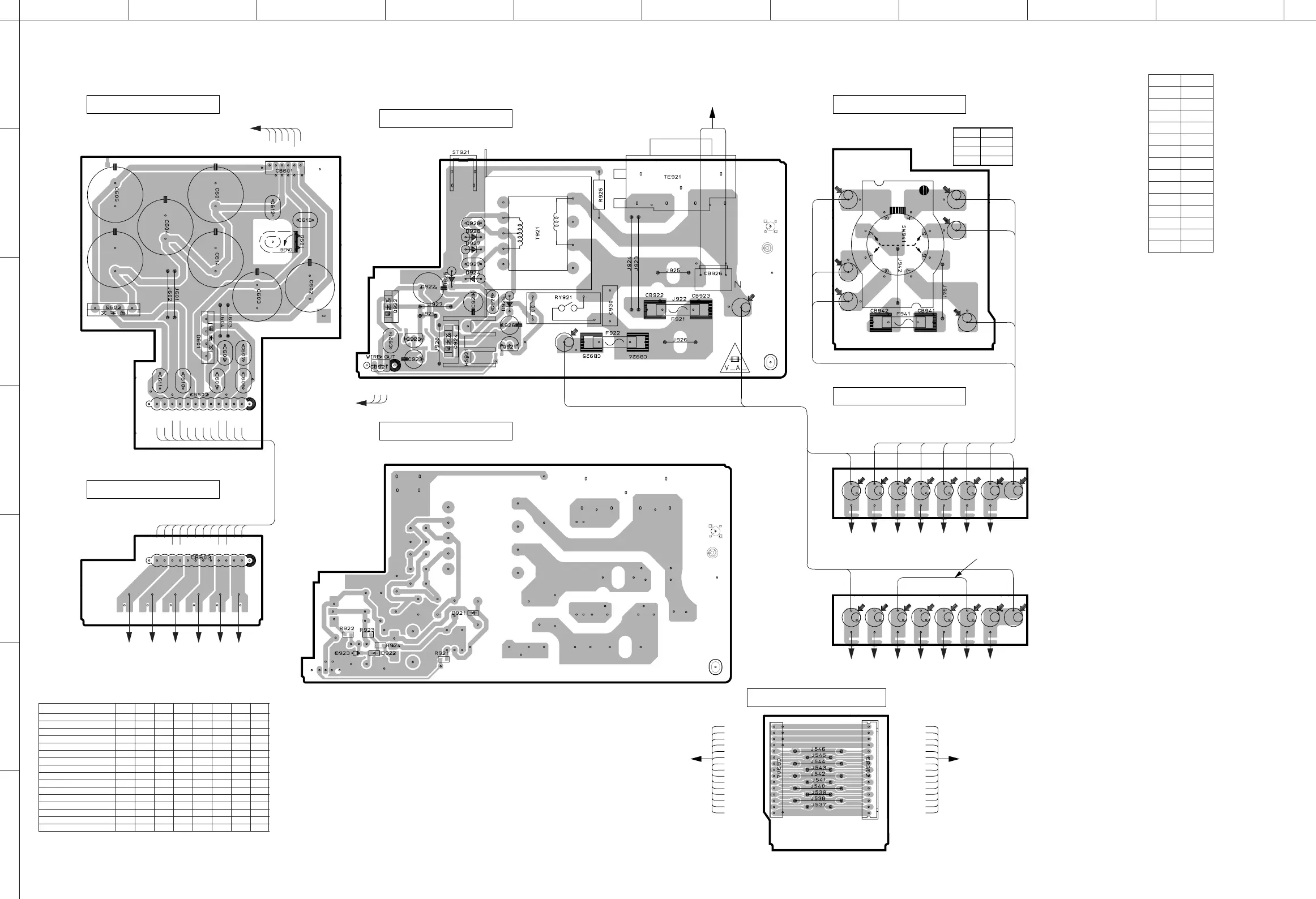

■ PRINTED CIRCUIT BOARD (Foil side)
• Semiconductor Location
Ref. No. Location
D601 B3
D602 A3
D921 D5
D922 C6
D923 C6
D924 D3
D925 D3
D926 D3
D927 D2
D928 D2
Q921 D3
Q922 D3
Q923 D3
Q924 D3
Circuit No. J U, C R, T A B G LK
C923, 925, 926, 928, 929 X X O X X X X X
C927 OOXOOOOO
CB922, 923 X X X X X O O X
CB941, 942 X X O X X X X X
D922, 923, 925, 926 X X O X X X X X
F921 X X X X X O O X
F941 X X O X X X X X
J921 OOXOOOOO
J922 OOOOOXXX
Q922~924 X X O X X X X X
R922~924 X X O X X X X X
R925 XOXXXXXX
SW941 XXOXXXXX
TE921 OOOOOOOX
W941~946 X X O X X X X X
W947 X X X X X X X O
X: NOT USED
O: USED / APPLICABLE
