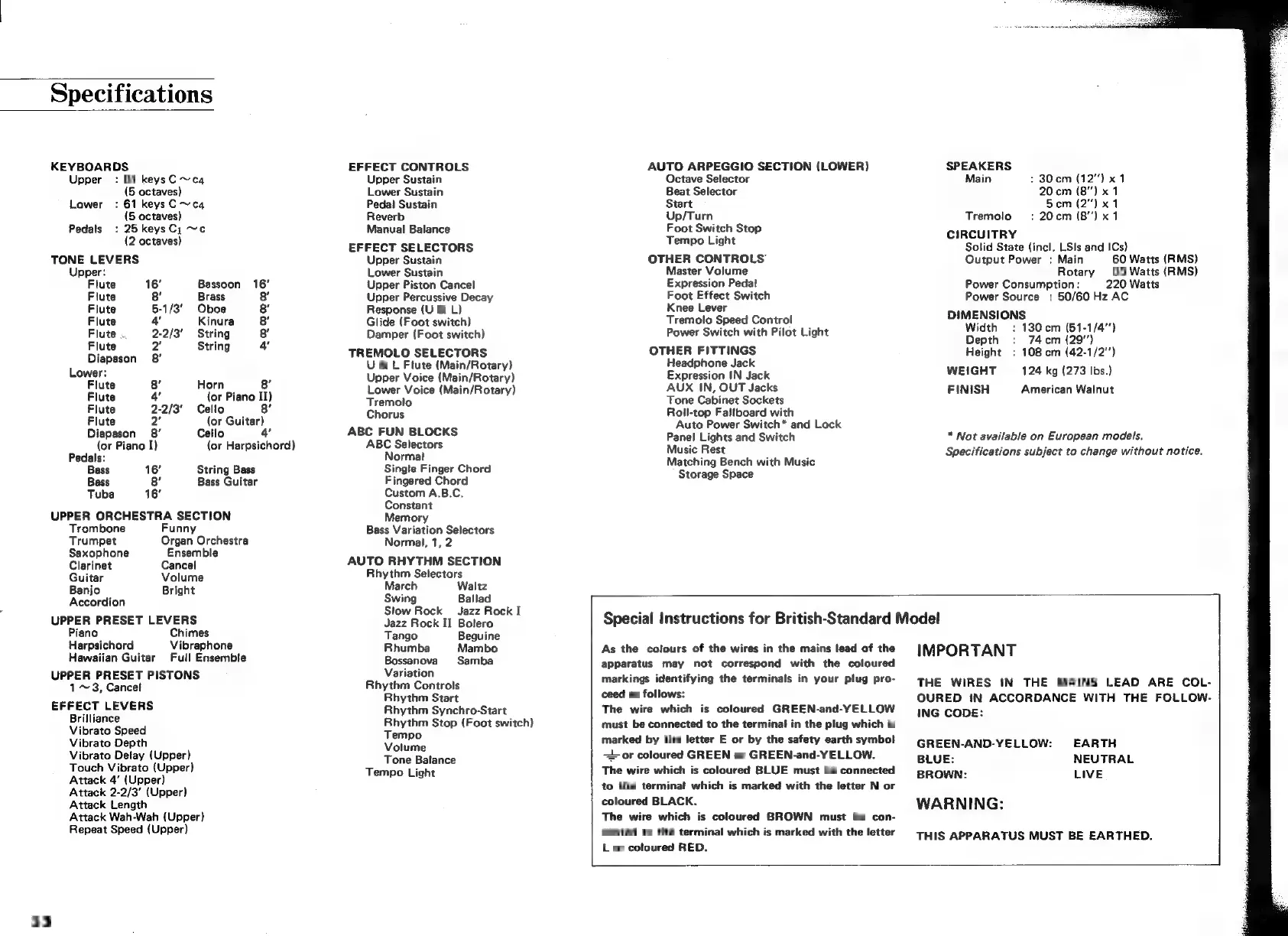

Specifications
33
KEYBOARDS
Upper : 61 keys C —c4
(5 octaves)
Lower : 61 keys C ^ c4
(5 octaves)
Pedals : 25 keys C, ^c
(2 octaves)
TONE LEVERS
Upper:
Flute 16' Bassoon 16’
Flute EN Brass 8
Flute 5-1/3' Oboe 8'
Flute 4 Kinura 8'
Flute ... 2-2/3’ String 8
Flute 2 String 4
Diapason 8’
Lower:
Flute EN Horn 8’
Flute Ai {or Piano II)
Flute 2-2/3' Cello 8'
Flute 2 (or Guitar)
Diapason 8' Cello EN
lor Piano I) {or Harpsichord)
Pedals:
Bass 16’ String Bass
Bass 8' Bass Guitar
Tuba 16’
UPPER ORCHESTRA SECTION
Trombone Funny
Trumpet Organ Orchestra
Saxophone Ensemble
Clarinet Cancel
Guitar Volume
Banjo Bright
Accordion
UPPER PRESET LEVERS
Piano Chimes
Harpsichord Vibraphone
Hawaiian Guitar Full Ensemble
UPPER PRESET PISTONS
13, Cancel
EFFECT LEVERS
Brilliance
Vibrato Speed
Vibrato Depth
Vibrato Detay (Upper)
Touch Vibrato (Upper)
Attack 4’ (Upper)
Attack 2-2/3’ (Upper)
Attack Length
Attack Wah-Wah {Upper}
Repeat Speed (Upper)
EFFECT CONTROLS
Upper Sustain
Lower Sustain
Pedal Sustain
Reverb
Manual Balance
EFFECT SELECTORS
Upper Sustain
Lower Sustain
Upper Piston Cancel
Upper Percussive Decay
Response (U & L)
Glide (Foot switch)
Damper (Foot switch)
TREMOLO SELECTORS
U & L Flute (Main/Rotary)
Upper Voice (Main/Rotary)
Lower Voice (Main/Rotary)
Tremolo
Chorus
ABC FUN BLOCKS
ABC Selectors
Normal
Single Finger Chord
Fingered Chord
Custom A.B.C.
Constant
Memory
Bass Variation Selectors
Normal, 1, 2
AUTO RHYTHM SECTION
Rhythm Selectors
March Waltz
Swing Ballad
Slow Rock Jazz Rock I
Jazz Rock II Bolero
Tango Beguine
Rhumba Mambo
Bossanova Samba
Variation
Rhythm Controls
Rhythm Start
Rhythm Synchro-Start
Rhythm Stop (Foot switch)
Tempo
Volume
Tone Balance
Tempo Light
AUTO ARPEGGIO SECTION (LOWER)
Octave Selector
Beat Selector
Start
Up/Turn
Foot Switch Stop
Tempo Light
OTHER CONTROLS
Master Volume
Expression Peda!
Foot Effect Switch
Knee Lever
Tremolo Speed Control
Power Switch with Pilot Light
OTHER FITTINGS
Headphone Jack
Expression IN Jack
AUX IN, OUT Jacks
Tone Cabinet Sockets
Roll-top Fallboard with
Auto Power Switch* and Lock
Panel Lights and Switch
Music Rest
Matching Bench with Music
Storage Space
SPEAKERS
Main : 30cm (127) x 1
20 cm (8") x 1
5cm (2") x 1
Tremolo : 20cm (8'") x 1
CIRCUITRY
Solid State (incl. LSIs and ICs)
Output Power : Main 60 Watts (RMS)
Rotary 60 Watts (RMS)
Power Consumption: 220 Watts
Power Source : 50/60 Hz AC
DIMENSIONS
Width : 130 cm (51-1/4")
Depth : 74cm (29")
Height : 108 cm (42-1/2'')
WEIGHT 124 kg (273 lbs.)
FINISH American Walnut
* Not available on European models.
Specifications subject to change without notice.
