ELECTRICAL COMPONENTS
6-35
EAS30549

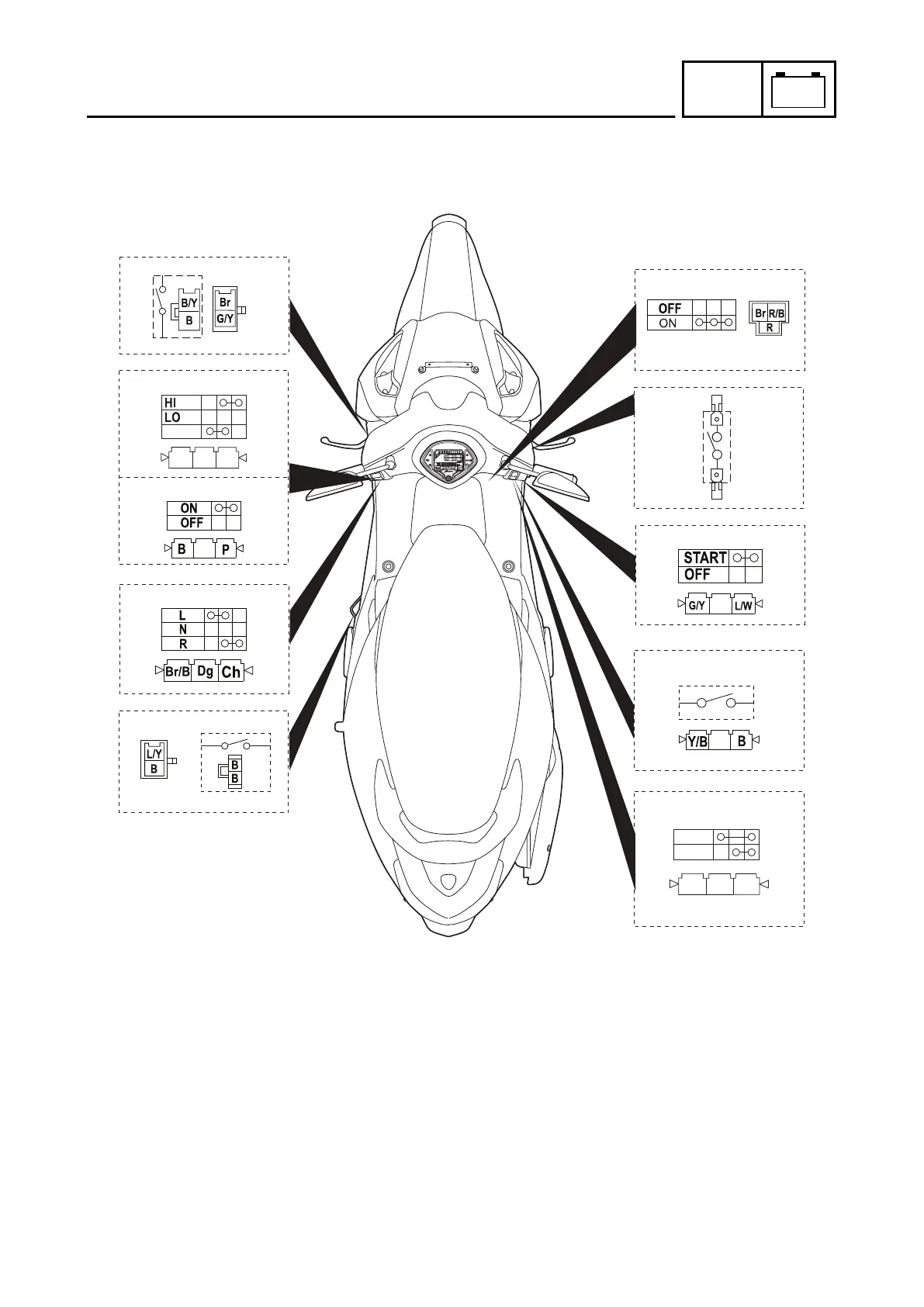

CHECKING THE SWITCHES (For Disc)
Check each switch for continuity with the multimeter. If the continuity reading is incorrect, check the wir-
ing connections and if necessary, replace the switch.
10
8
9
7
6
1
2
3
4
5
T
DRL
H/L
W/Y
Br/L
R
Br/Y
Br/L
Br/Y
Y
Pass
1. Main switch
2. Front brake switch
3. Start switch
4. Stop and start system switch
5. Headlight switch
6. Sidestand switch
7. Turn signal switch
8. Horn switch
9. Dimmer/pass switch
10.Rear brake light switch
B7JF8197E1.book Page 35 Tuesday, June 29, 2021 2:28 PM
