En 17
■ Connecting speakers
Connect the speakers placed in your room to this unit.
Speakers to be connected
If you have 7 speakers, use two of them as surround back speakers (*1) or front
presence speakers (*2).
• You can also connect up to 2 subwoofers (with built-in amplifier) to this unit.
• To use an external power amplifier (Hi-Fi amplifier, etc.) to enhance speaker output, see “Connecting an
external power amplifier” (p.23).
Cables necessary for connection (commercially available)
Speaker cables (x the number of speakers)
Audio pin cable (2 for connecting 2 subwoofers)

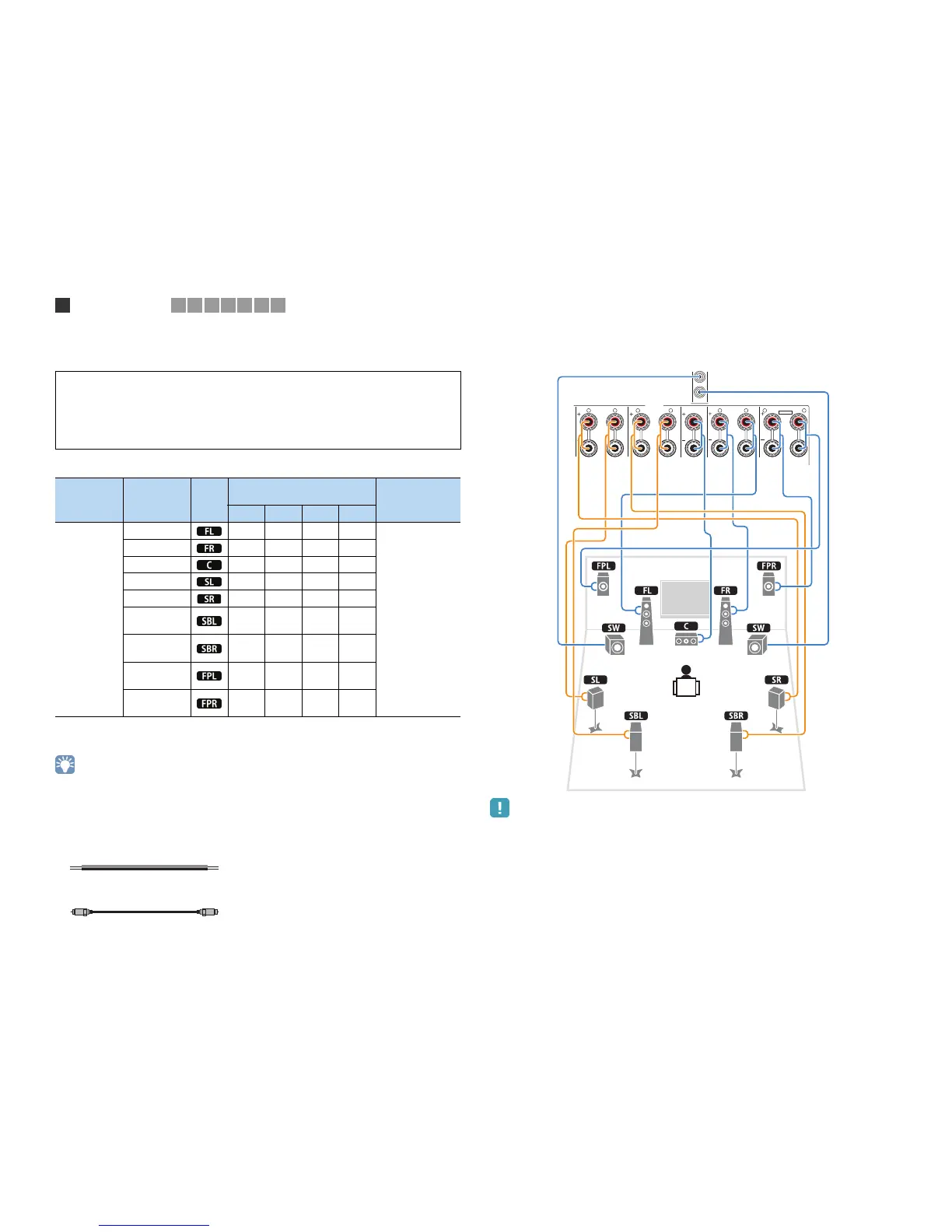

Connection diagram
Refer to the following diagram and connect the speakers to this unit.
• When using only one surround back speaker, connect it to the SINGLE jack (L side).
Caution
• Remove the power cable of this unit from an AC wall outlet and turn off the subwoofer before
connecting the speakers.
• Be careful that the core of the speaker cable does not touch anything or come into contact with the
metal areas of this unit. This may damage this unit or the speakers. If the speaker cables short circuit,
“CHECK SP WIRES” will appear on the front display when this unit is turned on.
Room Speaker type Abbr.
Speaker system
(the number of channels)
Power Amp
Assign
(p.104)
7+2 7 5 2
Main zone
Front (L) ●●●●
Basic (default)
Front (R) ●●●●
Center ●●●
Surround (L) ●●●
Surround (R) ●●●
Surround
back (L)
● {*1
Surround
back (R)
● {*1
Front
presence (L)
● {*2
Front
presence (R)
● {*2
–
+
–
+
To Next Page
