PERIODIC MAINTENANCE AND MINOR REPAIR

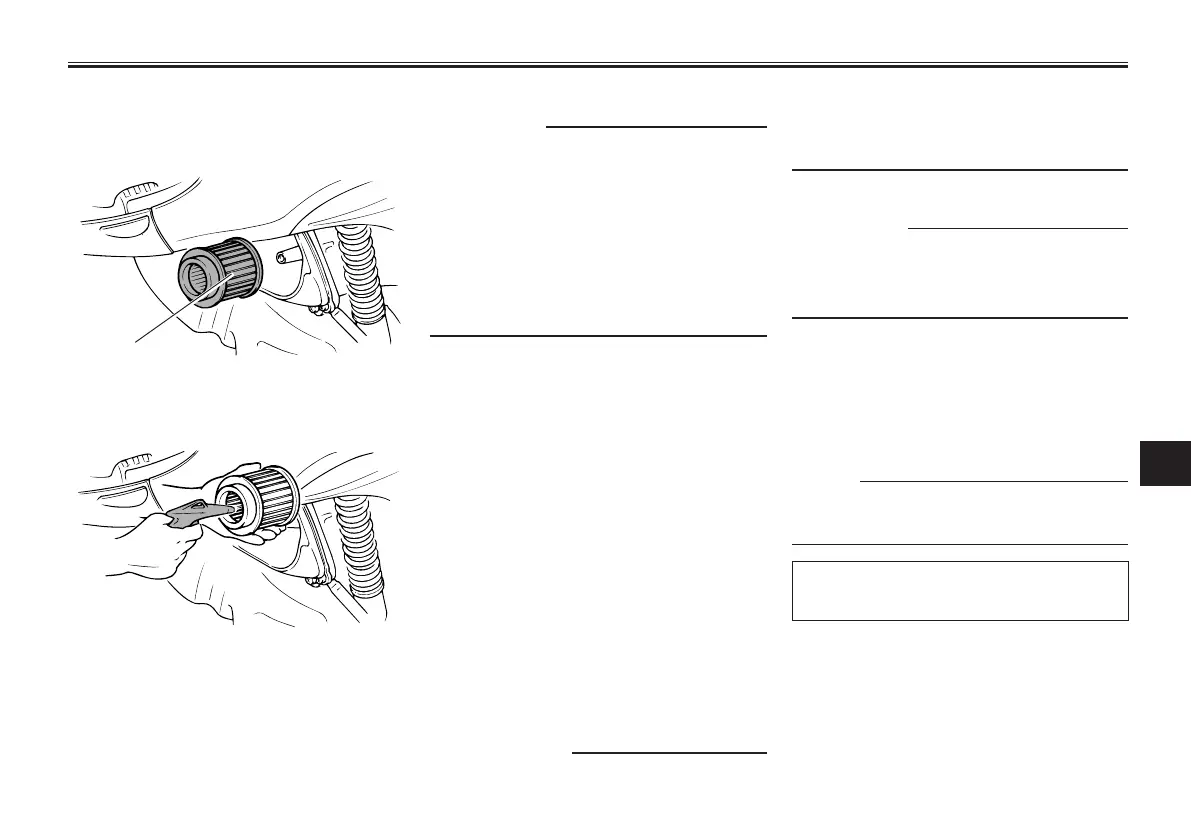

then blow the dirt out with com-
pressed air as shown.
1
ZAUM00**
1. Air filter element
ZAUM00**
4. Check the air filter element for dam-
age and replace it if necessary.
5. Insert the air filter element into the
air filter case.
ECA10480
cC
88
88
8 Make sure that the air filter ele-
ment is properly seated in the air
filter case.
88
88
8 The engine should never be op-
erated without the air filter ele-
ment installed, otherwise the
piston(s) and/or cylinder(s) may
become excessively worn.
6. Install the air filter case cover by
installing the screw.
Cleaning the V-belt case air filter ele-
ment
1. Remove the kickstarter lever by re-
moving the bolt.
2. Remove the crankcase cover by re-
moving the screws.
3. Remove the filter element holder by
removing the screw.
4. Pull the air filter element out, and
then clean it with solvent. After
cleaning, remove the remaining
solvent by squeezing the element.
EWA10430
w
Use only a dedicated parts cleaning
solvent. To avoid the risk of fire or
explosion, do not use gasoline or
solvents with a low flash point.
ECA10520
cC
To avoid damaging the air filter ele-
ment, handle it gently and carefully,
and do not twist it.
5. Apply oil of the recommended type
to the entire surface of the sponge
material, and then squeeze the ex-
cess oil out.
NOTE:
The air filter element should be wet but
not dripping.
Recommended oil:
Engine oil
6. Insert the element into the air filter
case.
7. Install the filter element holder by
installing the screw.
8. Install the crankcase cover by in-
stalling the screws.
5YR-F8199-14_ch6.pmd 2007/05/24, 19:5813
