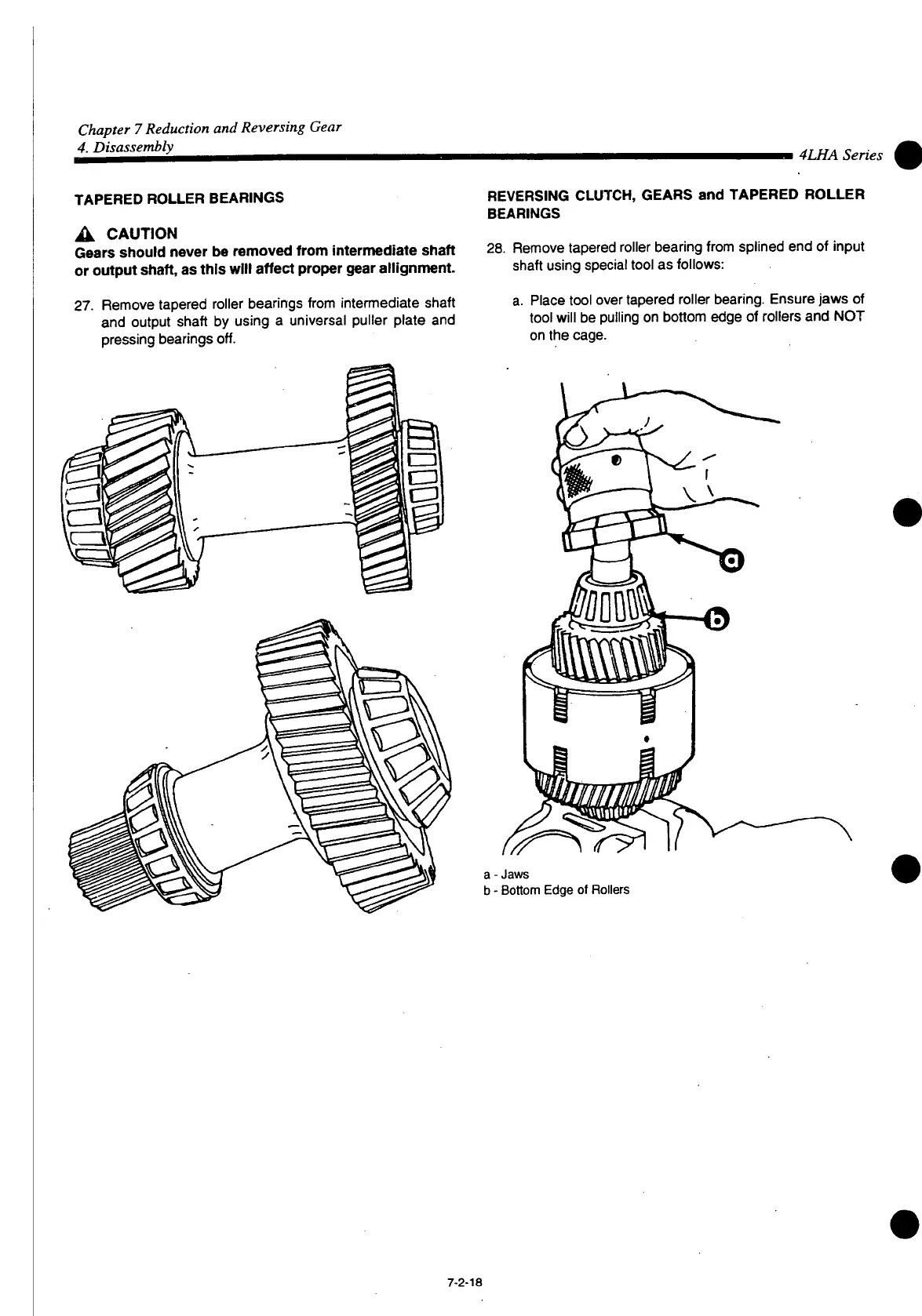

Chapter 7 Reduction and Reversing Gear
4. Disassembly
4LHA Series
TAPERED
ROLLER BEARINGS
A
CAUTION
Gears should
never
be
removed
from
intermediate
shaft
or
output
shaft,
as
this
will
affect
proper
gear
allignment.
27.
Remove tapered roller bearings from intermediate shaft
and
output shaft by using a universal puller plate and
pressing
bearings off.
REVERSING CLUTCH, GEARS and TAPERED ROLLER
BEARINGS
28.
Remove
tapered roller bearing from splined end of input
shaft using
special
tool as follows:
a.
Place
tool over tapered roller
bearing.
Ensure
jaws of
tool will be pulling on bottom edge of rollers and NOT
on the
cage.
a
-
Jaws
b - Bottom
Edge
of
Rollers
7-2-18
To Next Page
