Chapter 7 Reduction and Reversing Gear
4. Disassembly
4LHA Serit

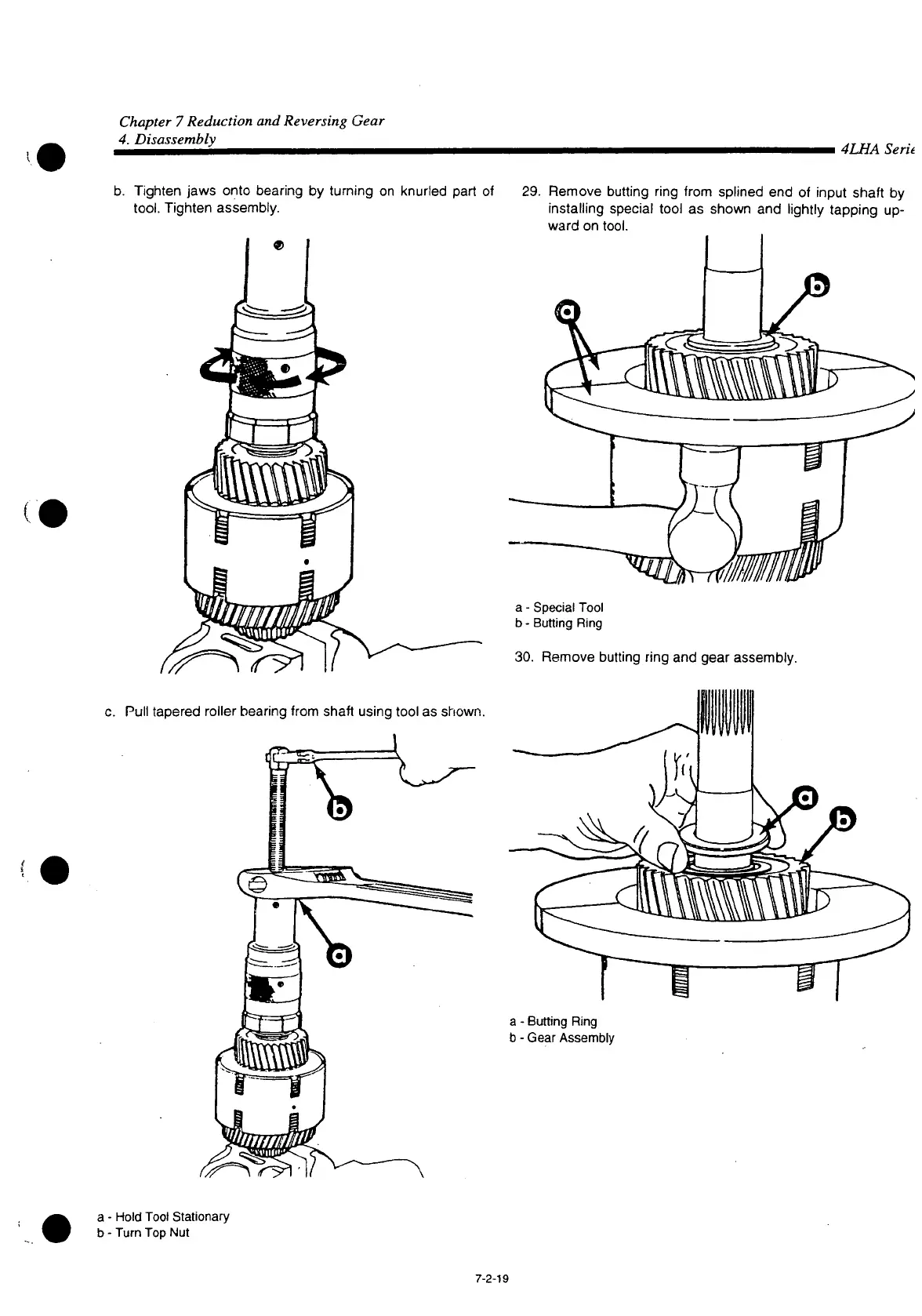

b. Tighten jaws onto bearing by turning on knurled part of
tool. Tighten assembly.
29. Remove butting ring from splined end of input shaft by
installing special tool as shown and lightly tapping up-
ward on tool.
30. Remove butting ring and gear assembly.
c. Pull tapered roller bearing from shaft using tool as shown.
a - Butting Ring
b - Gear Assembly
a - Hold Tool Stationary
b - Turn Top Nut
7-2-19
