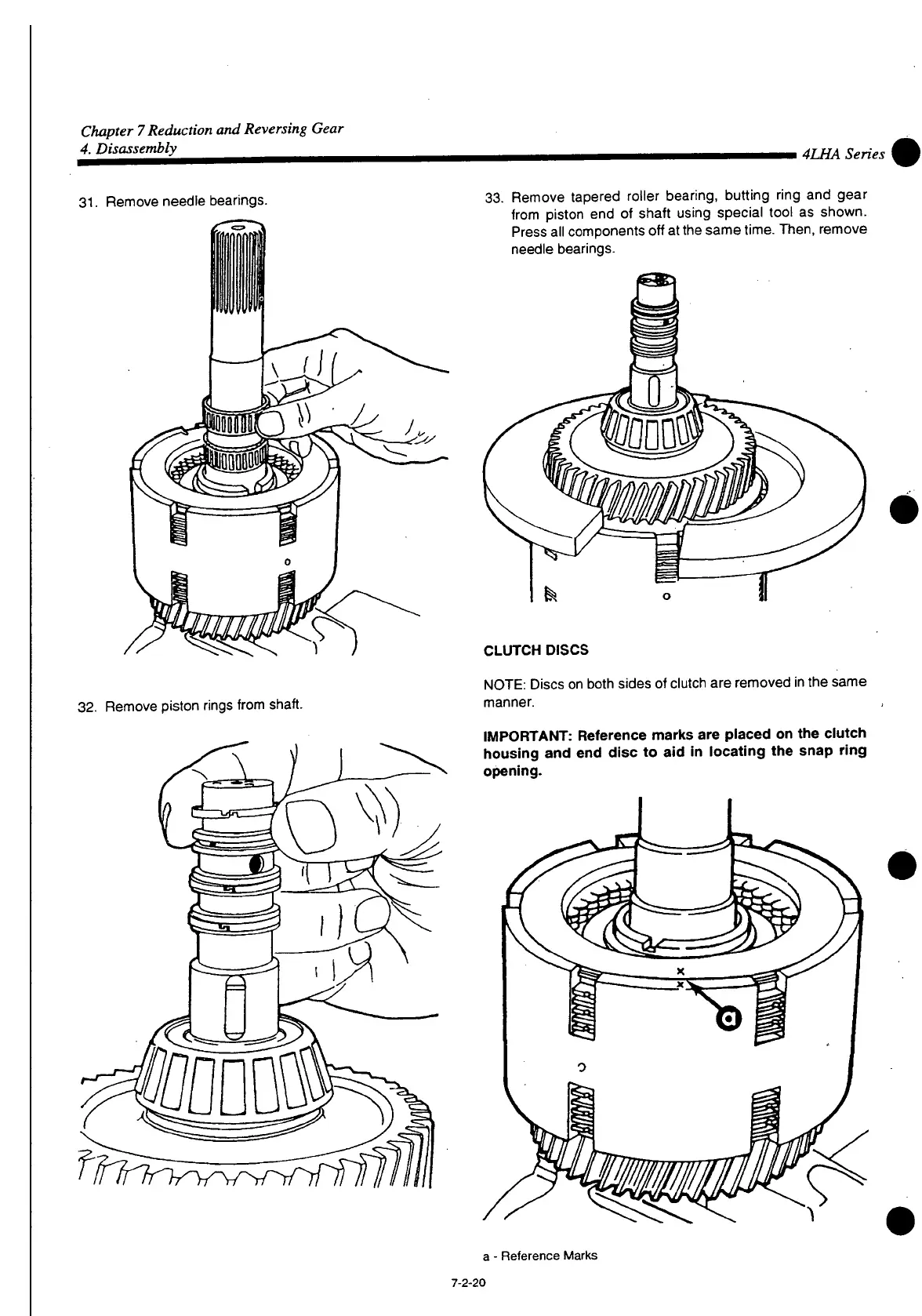

Chapter
7
Reduction and Reversing Gear
4. Disassembly
4LHA Series
31.
Remove needle bearings.
32.
Remove piston rings from shaft.
33.
Remove tapered roller bearing, butting ring and gear
from piston end of shaft using special tool as shown.
Press
all components off at the same time. Then, remove
needle
bearings.
CLUTCH
DISCS
NOTE:
Discs
on both sides of clutch are removed in the same
manner.
IMPORTANT:
Reference
marks
are placed on the clutch
housing and end disc to aid in
locating
the snap
ring
opening.
a
- Reference Marks
7-2-20
To Next Page
