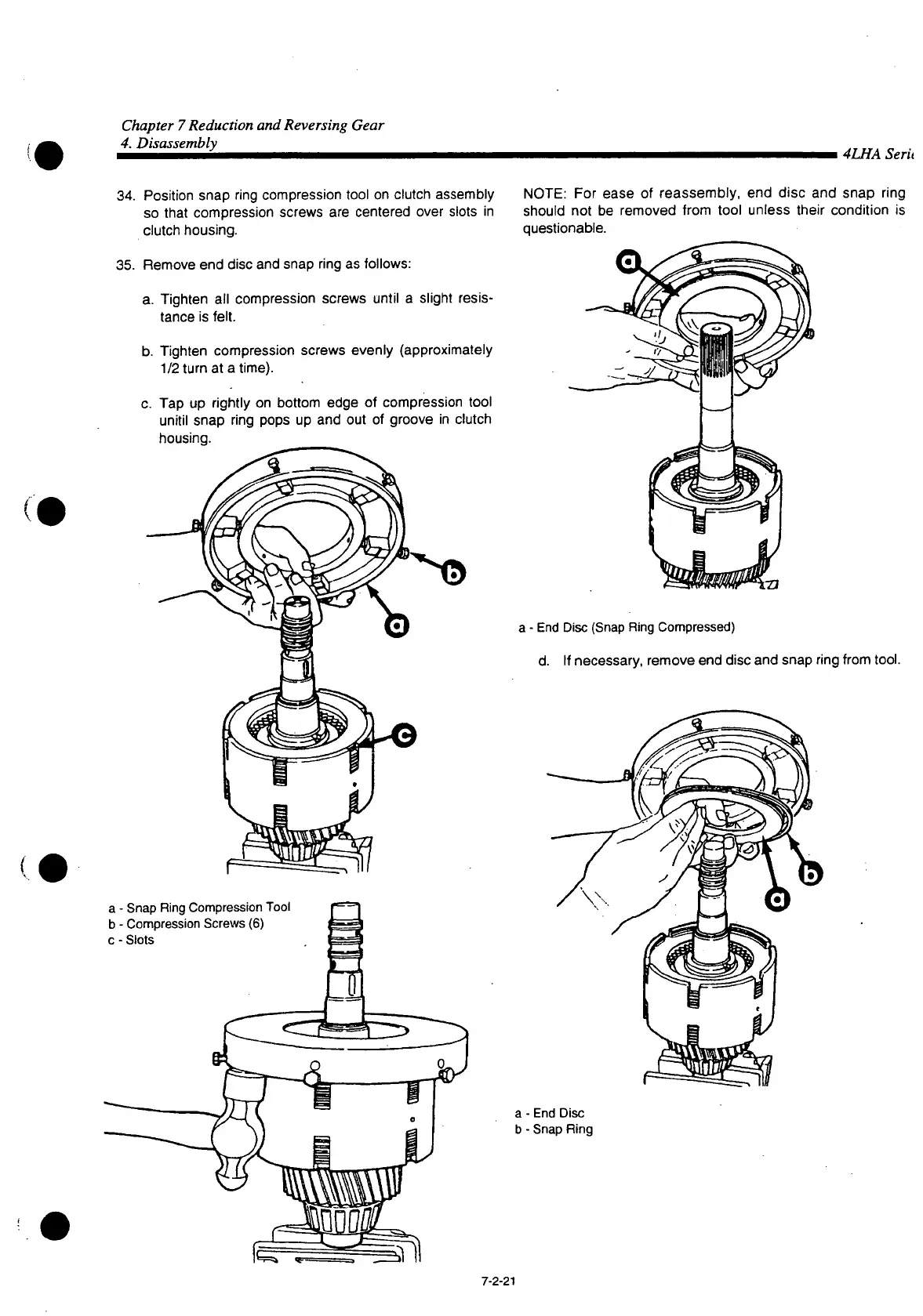

Chapter 7 Reduction and Reversing Gear
4. Disassembly
4LHA Serit
34. Position snap
ring
compression
tool
on clutch assembly
so
that
compression screws are centered over slots in
clutch housing.
35.
Remove end disc and snap
ring
as follows:
a.
Tighten all compression screws
until
a slight resis-
tance is
felt.
b. Tighten compression screws evenly (approximately
1/2
turn
at a
time).
c. Tap up
rightly
on
bottom
edge of compression
tool
unitil
snap
ring
pops up and out of groove in clutch
housing.
NOTE:
For ease of reassembly, end disc and snap
ring
should not be removed
from
tool
unless
their
condition is
questionable.
a
- End Disc (Snap Ring Compressed)
d.
If necessary, remove end disc and snap
ring
from
tool.
a
- End Disc
b - Snap Ring
7-2-21
