Chapter 7 Reduction and Reversing Gear
4. Disassembly
4LHA Series

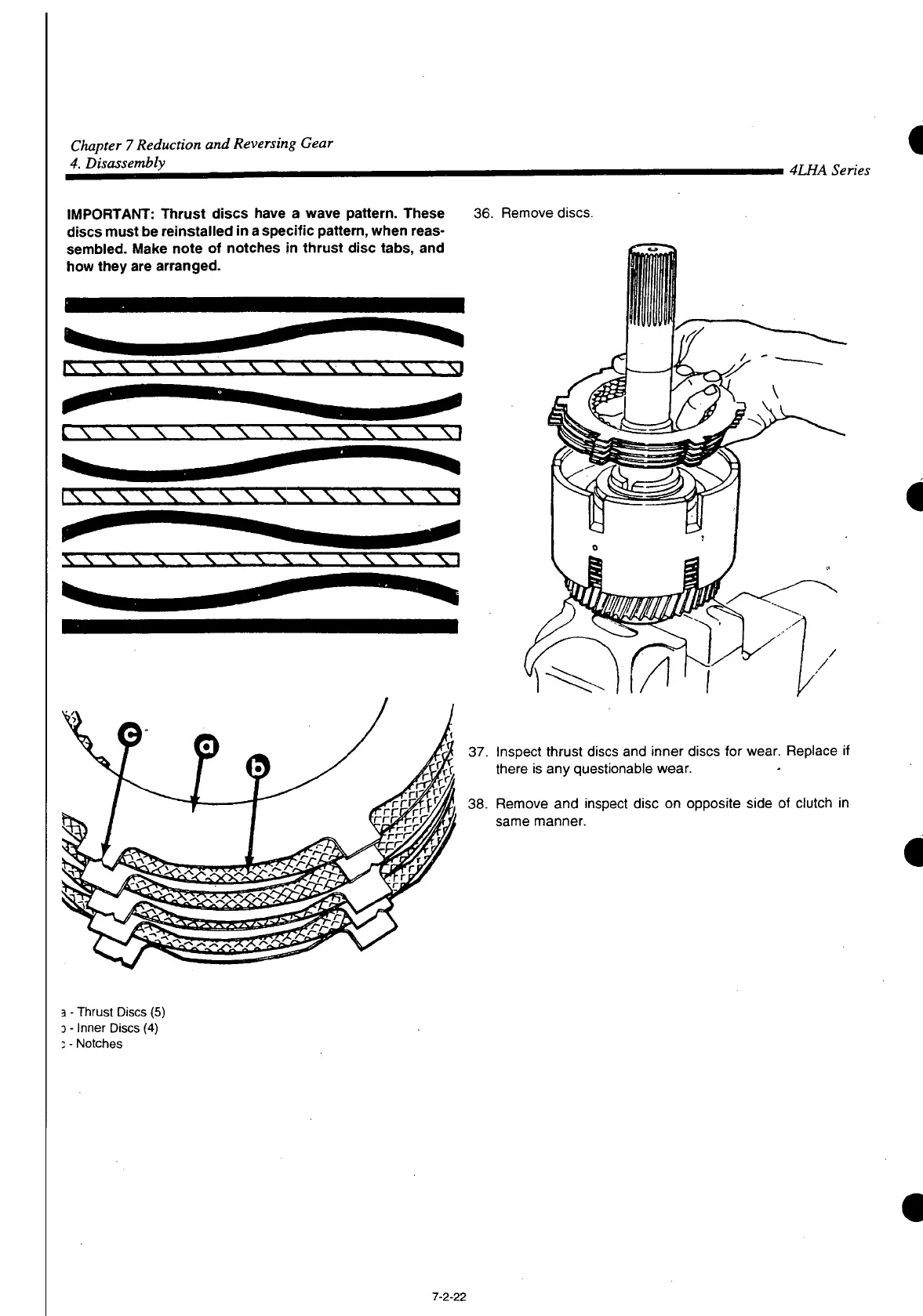

IMPORTANT: Thrust discs have a wave pattern. These
discs must be reinstalled in a specific pattern, when reas-
sembled. Make note of notches in thrust disc tabs, and
how they are arranged.
36. Remove discs.
SSSSSSSS SS\S\\\M
37. Inspect thrust discs and inner discs for wear. Replace if
there is any questionable wear.
38. Remove and inspect disc on opposite side of clutch in
same manner.
a - Thrust Discs (5)
3 - Inner Discs (4)
; - Notches
7-2-22
