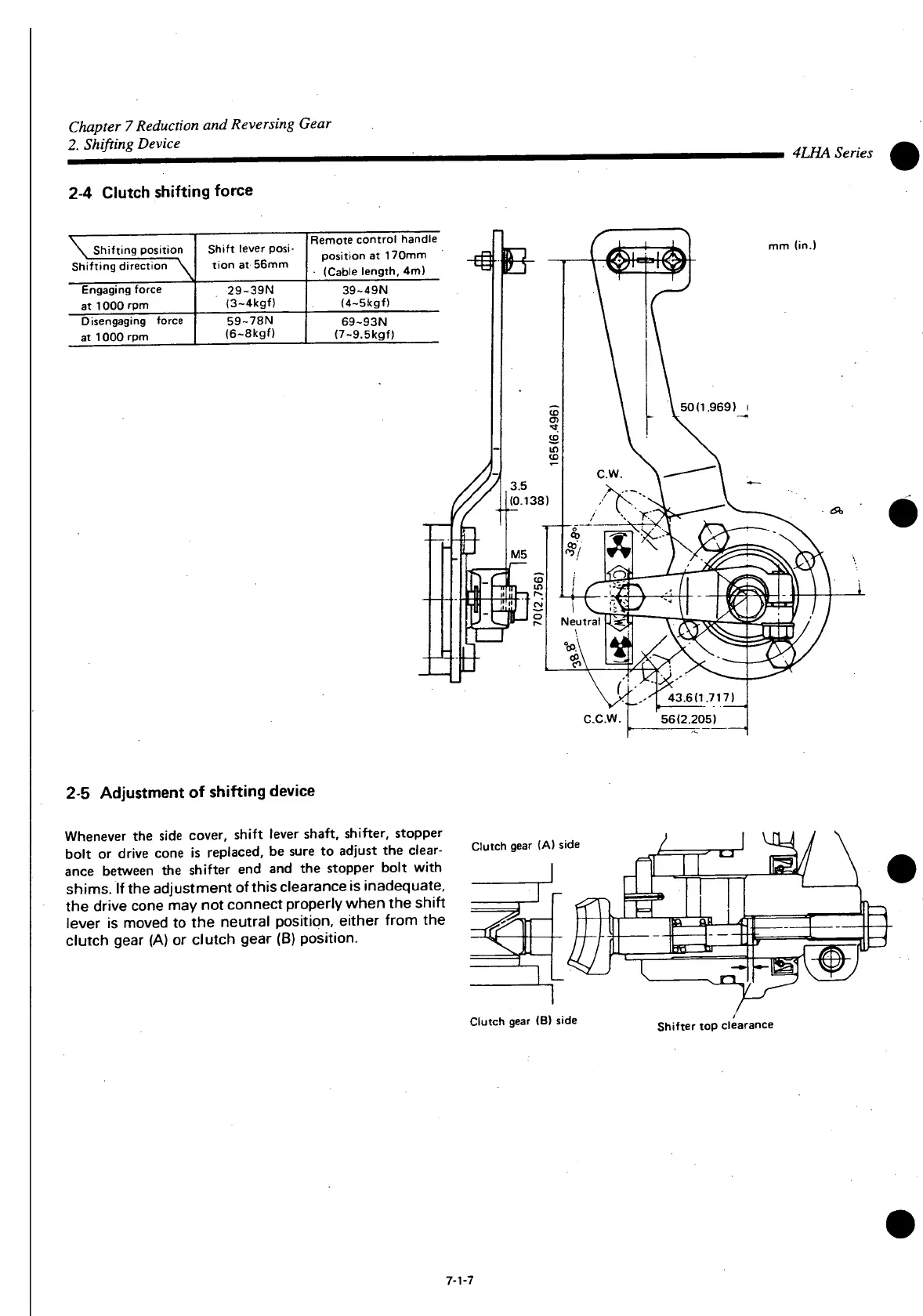

Chapter 7 Reduction
and
Reversing Gear
2. Shifting Device
4LHA Series
2-4 Clutch shifting force
\ Shifting position
Shifting direction
\^
Shift lever
posi-
tion
at
56mm
Remote
control handle
position
at
170mm
• (Cable length,
4m)
Engaging
force
at 1000 rpm
29~39N
(3-4kgf)
39-49N
(4~5k
g
f)
Disengaging
force
at 1000 rpm
59--78N
(6-8kgf)
69~93N
(7-9.5kgf)
mm
(in.)
C.C.W.
2-5 Adjustment of shifting device
Whenever
the
side cover, shift lever shaft, shifter, stopper
bolt
or
drive cone
is
replaced,
be
sure
to
adjust
the
clear-
ance
between
the
shifter
end and the
stopper bolt
with
shims.
If
the adjustment of this
clearance
is inadequate,
the drive cone may not connect properly when the shift
lever
is
moved
to the
neutral position, either from
the
clutch gear (A)
or
clutch gear (B) position.
Clutch
gear
(A)
side
Clutch
gear
(B)
side
Shifter
top
clearance
7-1-7
