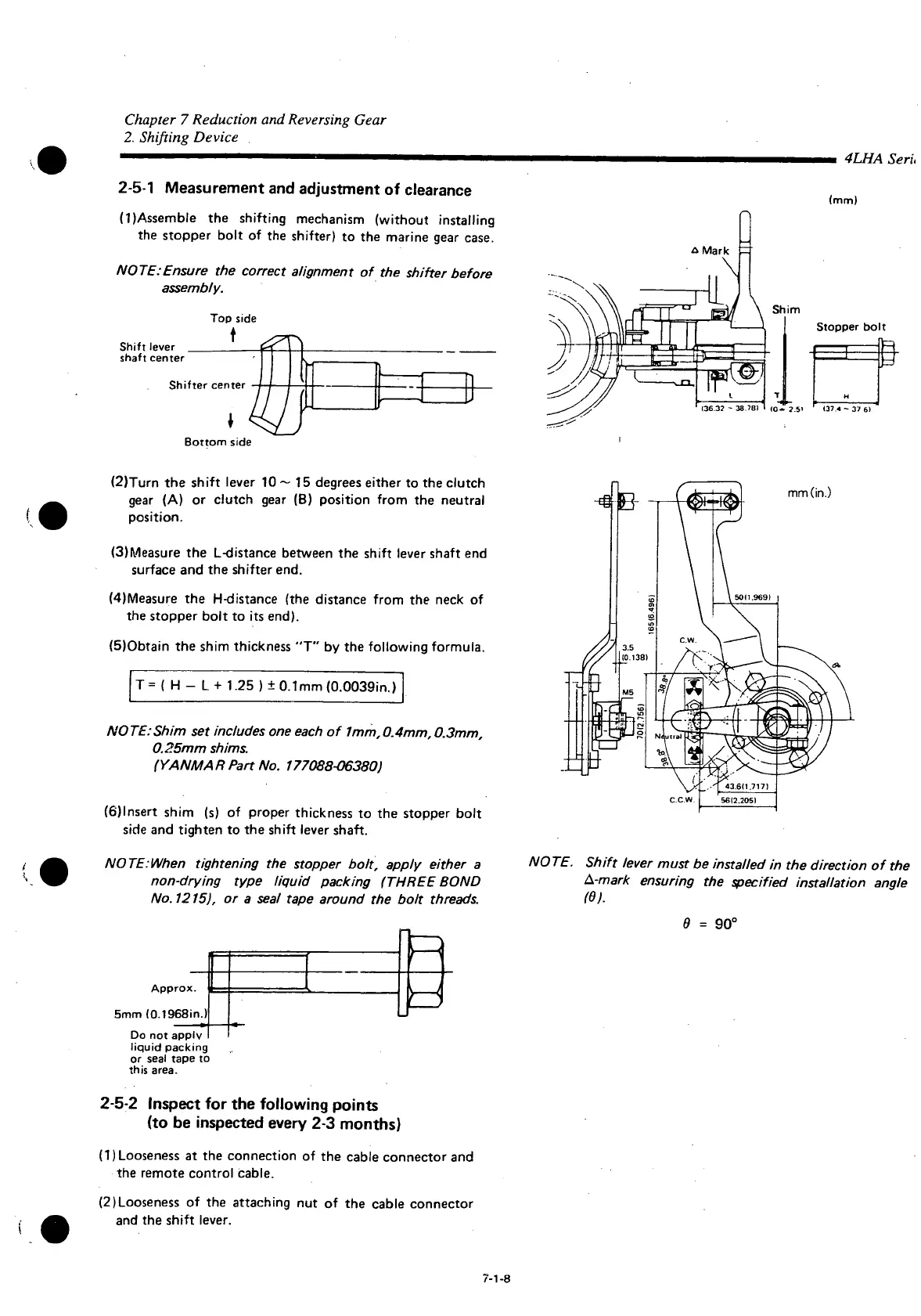

Chapter 7 Reduction and Reversing Gear
2. Shifting Device
4LHA Seru
2-5-1
Measurement
and
adjustment
of
clearance
(l)Assemble
the shifting mechanism
(without
installing
the stopper
bolt
of the
shifter)
to the marine gear
case.
NOTE:Ensure the correct alignment of the shifter before
assembly.
Shift lever .
shaft center
Top
side
t
Shifter center
Bottom side
(mm)
Shim
Stopper
bolt
(2) Turn the
shift
lever 10 ~ 15 degrees either to the clutch
gear
(A) or clutch gear (B) position
from
the neutral
position.
(3)
Measure
the L-distance between the
shift
lever shaft end
surface
and the shifter end.
(4)
Measure
the H-distance (the distance
from
the neck of
the stopper
bolt
to its end).
(5) Obtain the shim thickness "T" by the following formula.
T=( H - L +1.25 )± 0.1mm (0.0039in.)
NOTE:Shim set includes one
each
of 1mm,0.4mm,0.3mm,
0.25mm shims.
(YANMAR Part No. 177088-O6380)
{6)lnsert
shim (s) of proper thickness to the stopper
bolt
side
and
tighten
to the
shift
lever shaft.
NOTE:When tightening the stopper bolt, apply either a
non-drying type liquid packing (THREE BOND
No. 1215), or a seal tape around the bolt threads.
Approx.
5mm (0.1968in.
Do
not apply
liquid packing
or
seal
tape to
this
area.
NOTE. Shift lever must be installed in the direction of the
L-mark ensuring the specified installation angle
(6).
6 = 90°
2-5-2
Inspect
for the
following
points
(to be
inspected
every
2-3
months)
(1)
Looseness
at the connection of the cable connector and
the remote control
cable.
(2(Looseness
of the attaching nut of the cable connector
and
the
shift
lever.
7-1-8
