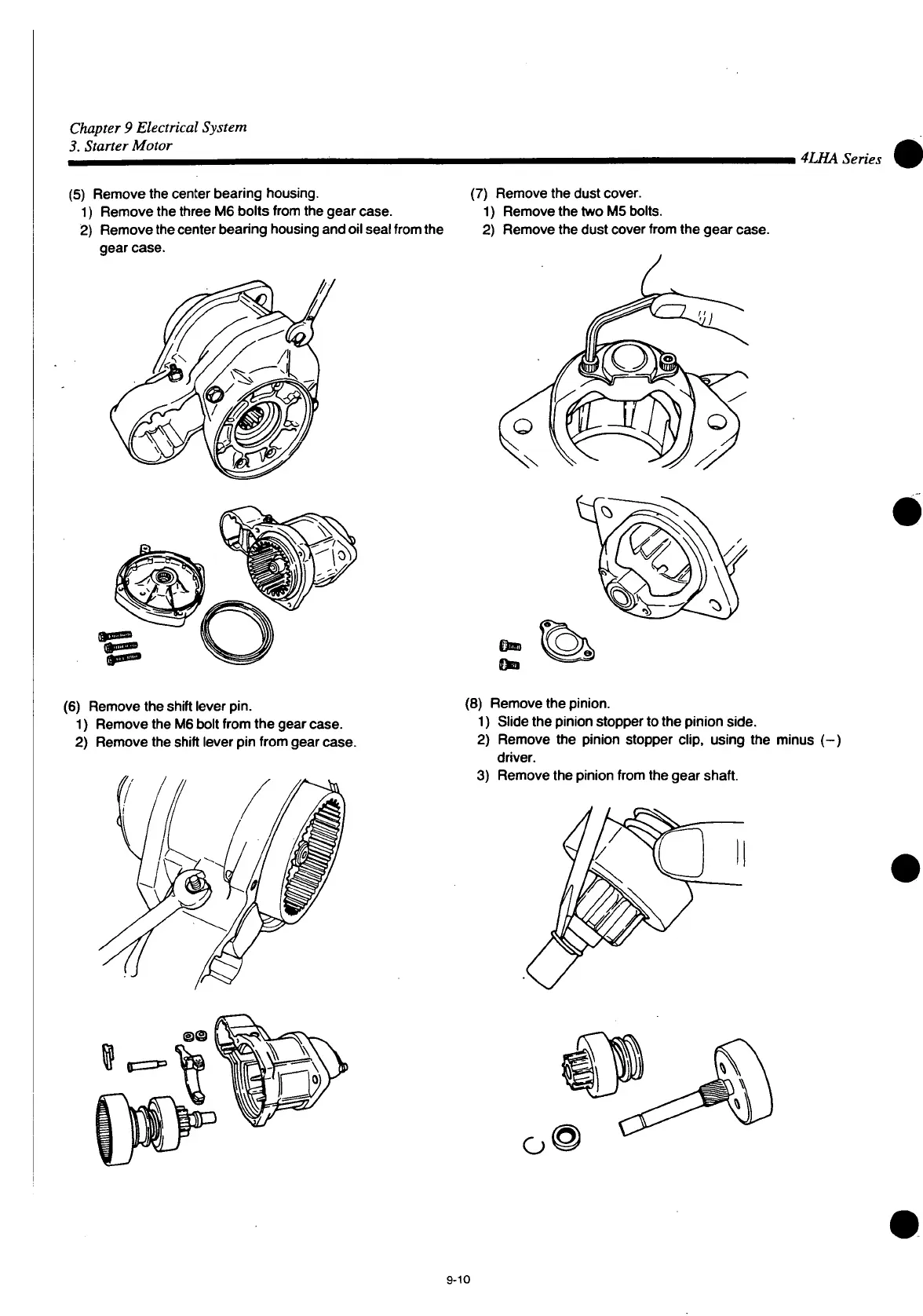

Chapter 9 Electrical System
3. Starter Motor
i 4LHA Series
(5) Remove the center bearing housing.
1) Remove the three M6 bolts from the gear case.
2) Remove the center bearing housing and oil seal from the
gear case.
(7) Remove the dust cover.
1) Remove the two M5 bolts.
2) Remove the dust cover from the gear case.
(6) Remove the shift lever pin.
1) Remove the M6 bolt from the gear case.
2) Remove the shift lever pin from gear case.
(8) Remove the pinion.
1) Slide the pinion stopper to the pinion side.
2) Remove the pinion stopper clip, using the minus (-)
driver.
3) Remove the pinion from the gear shaft.
9-10
