Yanmar 4LHA-STP User Manual

Chapter 6 Cooling Water System

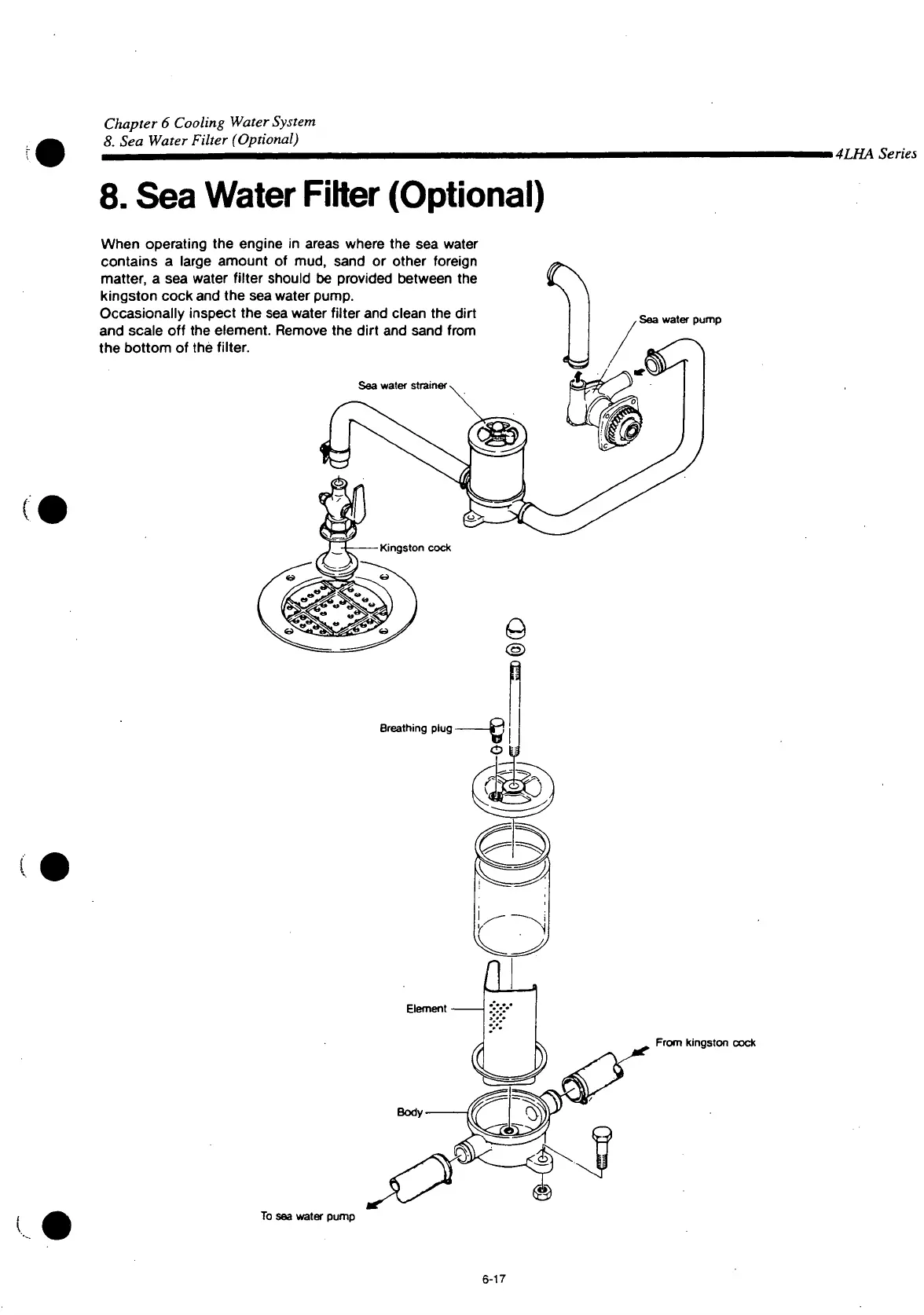

8. Sea Water Filter (Optional)
t4LHA Series
8. Sea Water Filter (Optional)
When operating the engine in areas where the sea water
contains a large amount of mud, sand or other foreign
matter, a sea water filter should be provided between the
kingston cock and the sea water pump.
Occasionally inspect the sea water filter and clean the dirt
and scale off the element. Remove the dirt and sand from
the bottom of the filter.
Sea water pump
From kingston cock
To sea water pump
6-17

Yanmar 4LHA-STP Specifications

General

Number of Cylinders	4
Fuel System	Direct Injection
Engine Type	4-Stroke Vertical Water-Cooled Diesel Engine
Displacement	3.455 L
Bore x Stroke	100 mm x 110 mm
Aspiration	Turbocharged
