Chapter 6 Cooling Water System

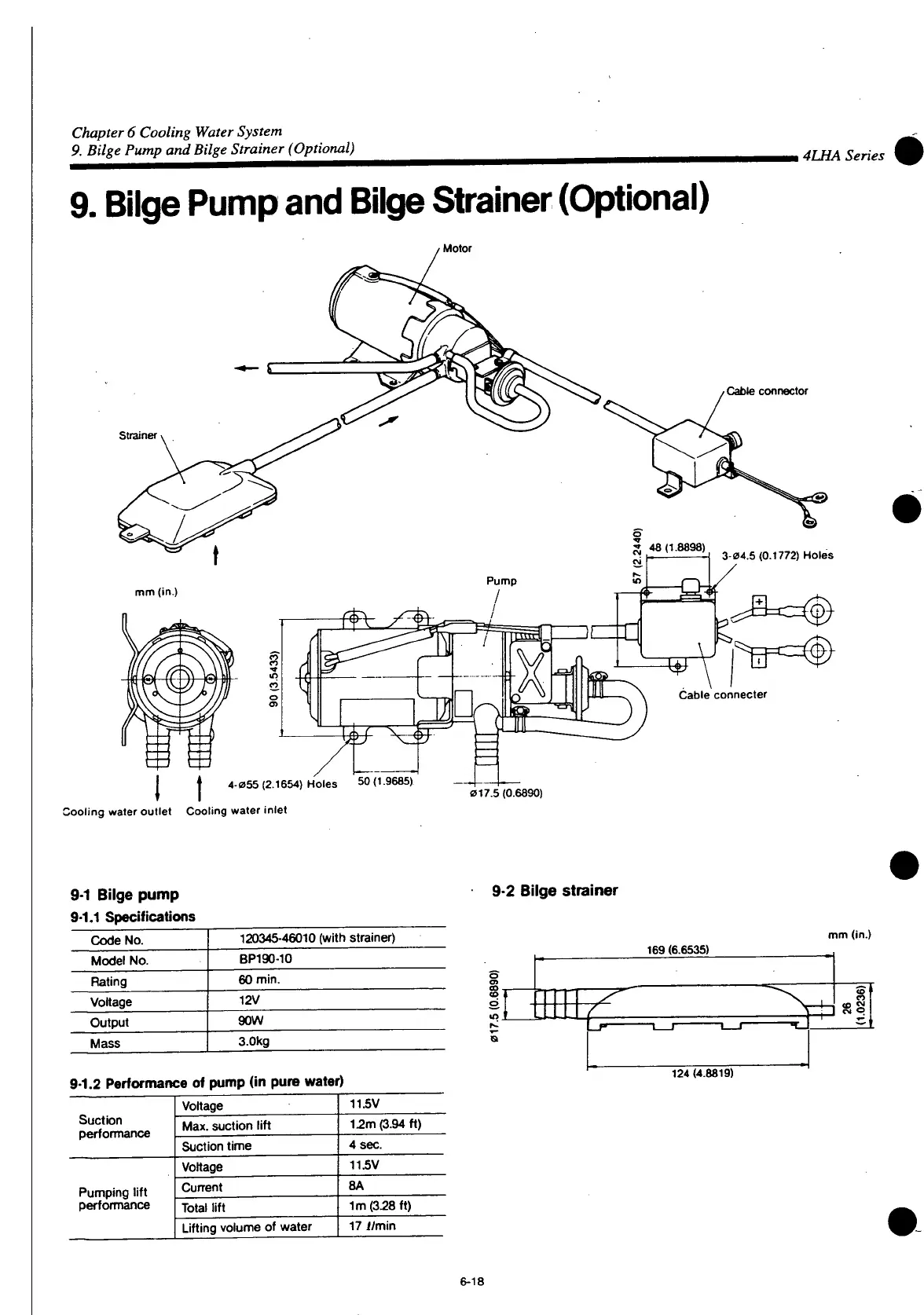

9. Bilge Pump and Bilge Strainer (Optional)
i 4LHA Series
9. Bilge Pump and Bilge Strainer (Optional)
/ Motor
Cable connector
Strainer
j j 4-055 (2.1654) Holes 50(1.9685)
Pooling water outlet Cooling water inlet
017.5 (0.6890)
9-1 Bilge pump
9-1.1 Specifications
Code No.
120345-46010 (with strainer)
Model No.
BP190-10
Rating
60 min.
Voltage
12V
Output
90W
Mass
3.0kg
9-1.2 Performance of pump (in pure water)
Suction
performance
Voltage
115V
Suction
performance
Max. suction lift
^2m (3.94 ft)
Suction
performance
Suction time
4 sec.
Pumping lift
performance
Voltage
115V
Pumping lift
performance
Current
8A
Pumping lift
performance
Total lift
Im (328 ft)
Pumping lift
performance
Lifting volume of water
17 l/min
9-2 Bilge strainer
169 (6.6535)
mm (in.)
f
f 1 1 1 ' T
— 1
6-18
