Yard Machines 650 Series User Manual

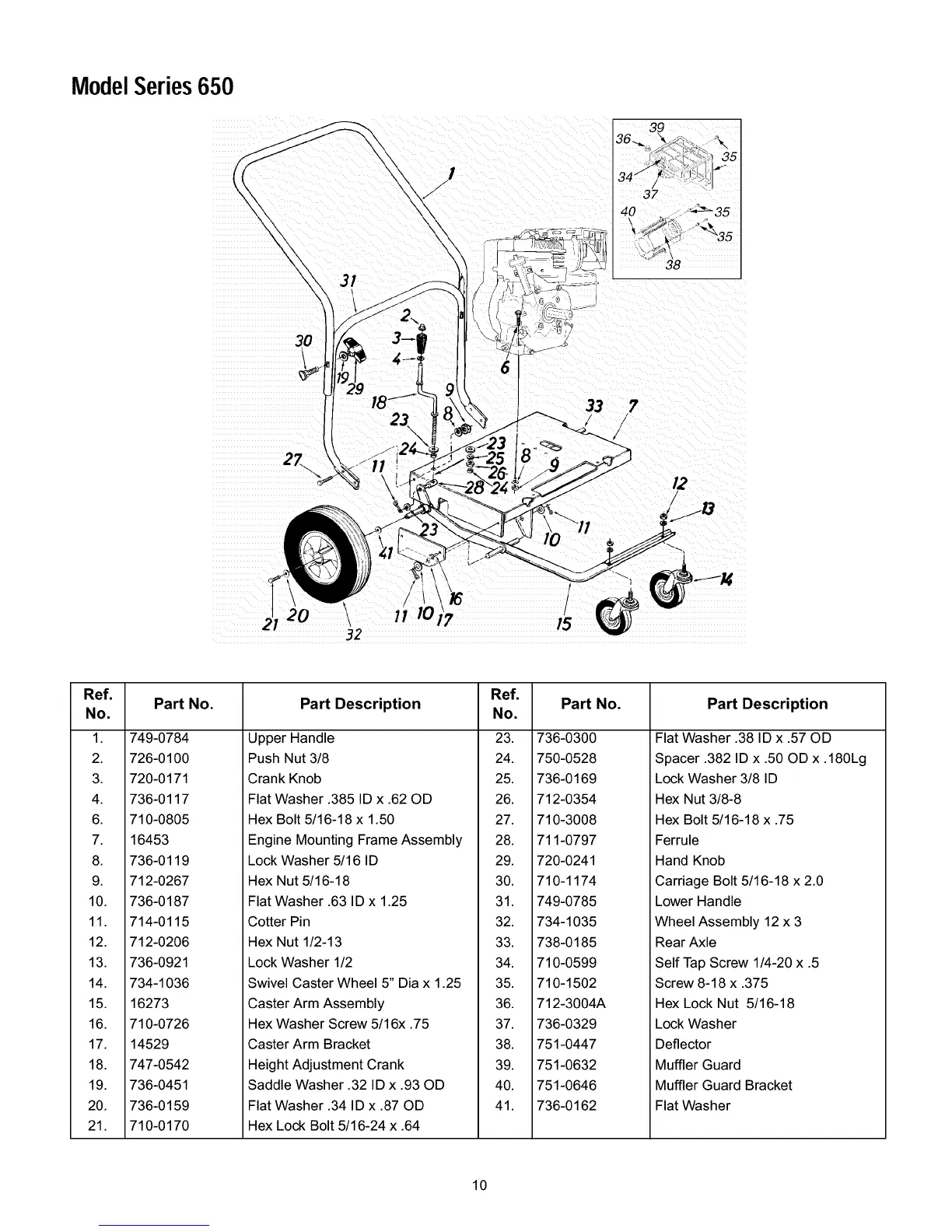

ModelSeries650
/I
39
37
31
12
21
32
11
17
Ref.
PaN No.
No.
1. 749-0784
2. 726-0100
3. 720-0171
4. 736-0117
6. 710-0805
7. 16453
8. 736-0119
9. 712-0267
10. 736-0187
11. 714-0115
12. 712-0206
13. 736-0921
14. 734-1036
15. 16273
16. 710-0726
17. 14529
18. 747-0542
19. 736-0451
20. 736-0159
21. 710-0170
Part Description
Upper Handle
Push Nut 3/8
Crank Knob
Flat Washer .385 ID x .62 OD
Hex Bolt 5/16-18 x 1.50
Engine Mounting Frame Assembly
Lock Washer 5/16 ID
Hex Nut 5/16-18
Flat Washer .63 ID x 1.25
Cotter Pin
Hex Nut 1/2-13
Lock Washer 1/2
Swivel Caster Wheel 5" Dia x 1.25
Caster Arm Assembly
Hex Washer Screw 5/16x .75
Caster Arm Bracket
Height Adjustment Crank
Saddle Washer .32 ID x .93 OD
Flat Washer .34 ID x .87 OD
Hex Lock Bolt 5/16-24 x .64
Ref.
No.
23.
24.
25.
26.
27.
28.
29.
30.
31.
32.
33.
34.
35.
36.
37.
38.
39.
40.
41.
Part No.
736-0300
750-0528
736-0169
712-0354
710-3008
711-0797
720-0241
710-1174
749-0785
734-1035
738-0185
710-0599
710-1502
712-3004A
736-0329
751-0447
751-0632
751-0646
736-0162
Part Description
Flat Washer .38 ID x .57 OD
Spacer .382 ID x .50 OD x .180Lg
Lock Washer 3/8 ID
Hex Nut 3/8-8
Hex Bolt 5/16-18 x .75
Ferrule
Hand Knob
Carriage Bolt 5/16-18 x 2.0
Lower Handle
Wheel Assembly 12 x 3
Rear Axle
Self Tap Screw 1/4-20 x .5
Screw 8-18 x .375
Hex Lock Nut 5/16-18
Lock Washer
Deflector
Muffler Guard
Muffler Guard Bracket
Flat Washer
10
