Page of 17
ASSEMBLY
REMOVE THE HARDWARE PACK AND ALL LOOSE PARTS FROM THE CARTON AND VERIFY
THAT ALL THE PARTS AND FASTENERS SHOWN ON THE LAST PAGE ARE INCLUDED.
Note: Right hand (R.H.) and left hand (L.H.) are determined from the operators’ position while seated on
the Tractor.

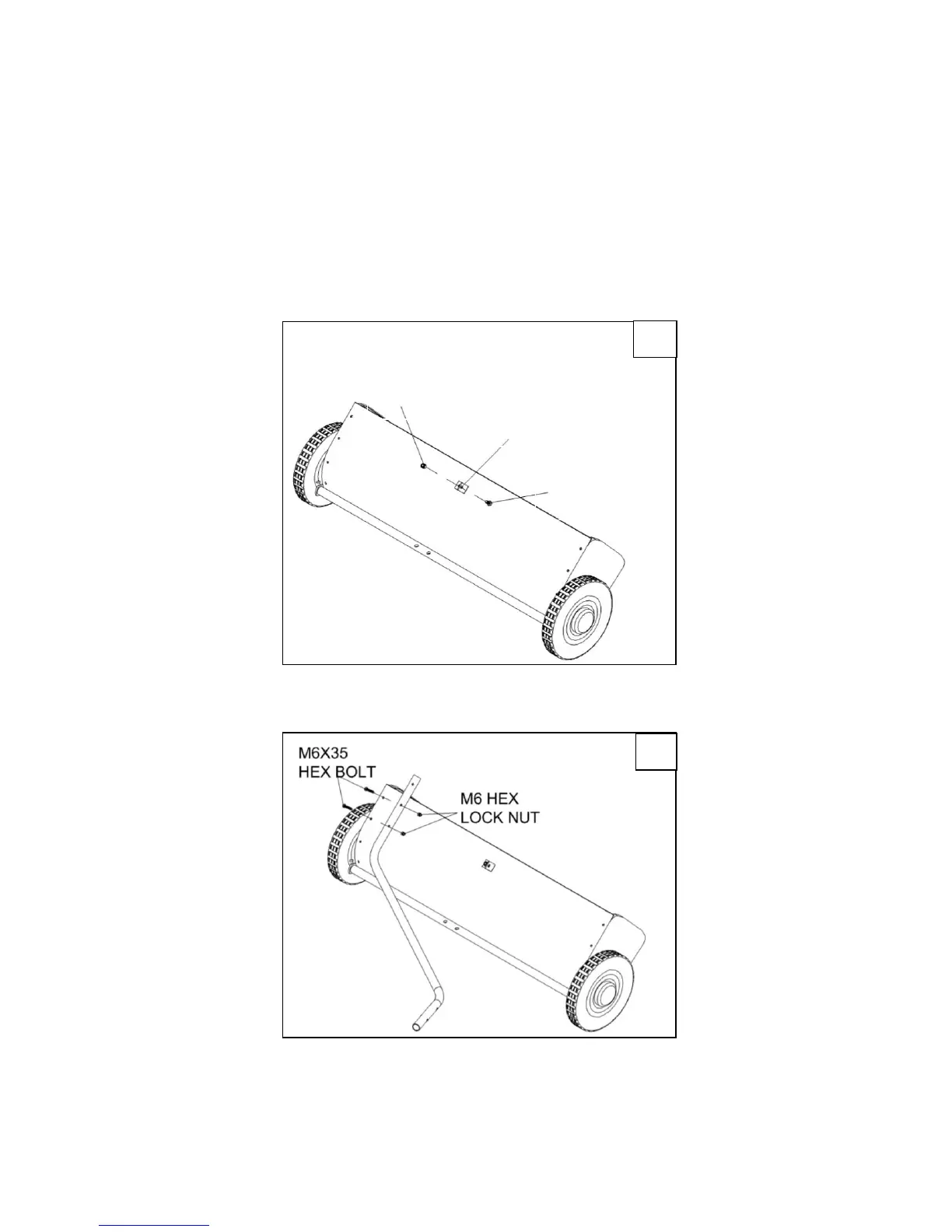

(Figure 1) Assemble the angle bracket to the sweeper housing using an M8x16 hex bolt and a M8 hex
lock nut. Make sure the bracket is turned as shown and aligned straight with the housing and then
tighten.
(Figure 2) Assemble the R.H Hitch Tube to the sweeper housing using M6x35 Hex Bolt and M6 Lock
Nut. Do not tighten yet. Repeat for the L.H hitch tube.
To Next Page
