Yardistry YM12863 - Page 94

94 support@yardistrystructures.com
Wood Parts
1 x (2239) Front Shelf
2 x (1137) Long Shelf Joist
Hardware
8 x #8 x 2-1/2” Wood Screw
S3
S3
Extra hole is on the side
where the Side Wall Shelf
will be installed
(2239)
1.59 cm [5/8 in]
Roof removed for
clarity

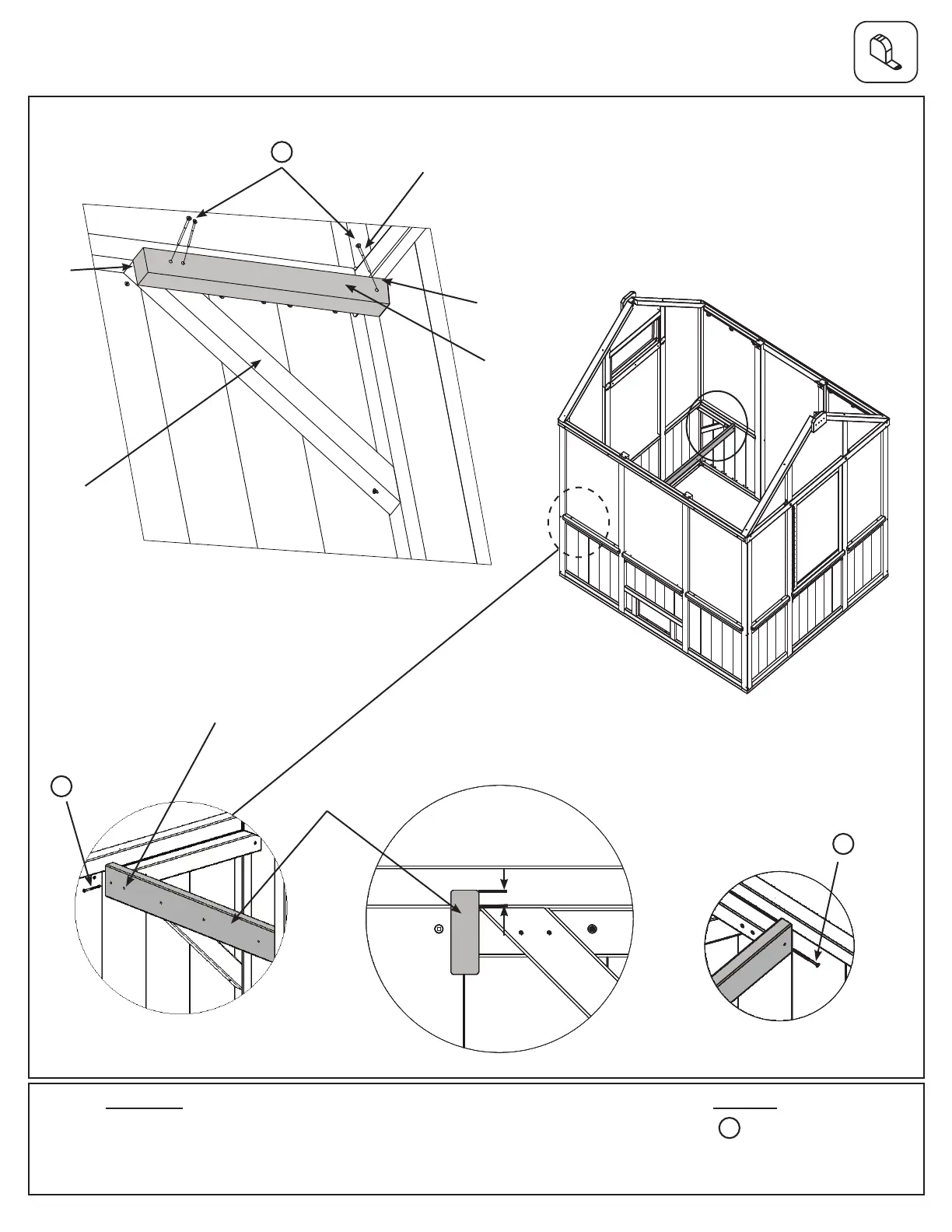

Step 19: Lower Shelf Assembly
Part 2
F19.6
F19.5
F19.7
Inside View
Inside View
Outside View
Inside View
F19.8
F19.9
#8 x 2-1/2” Wood Screws
Connects LONG SHELF JOIST
to the SHELF GUSSET and BACK
POST of the Back Wall.
Tight
Flush
(1137)
(1134)
Notice this
screw installed
on an angle
S3
S3
Note hole orientation
