Yardline 4130 - Page 35

33
SWING

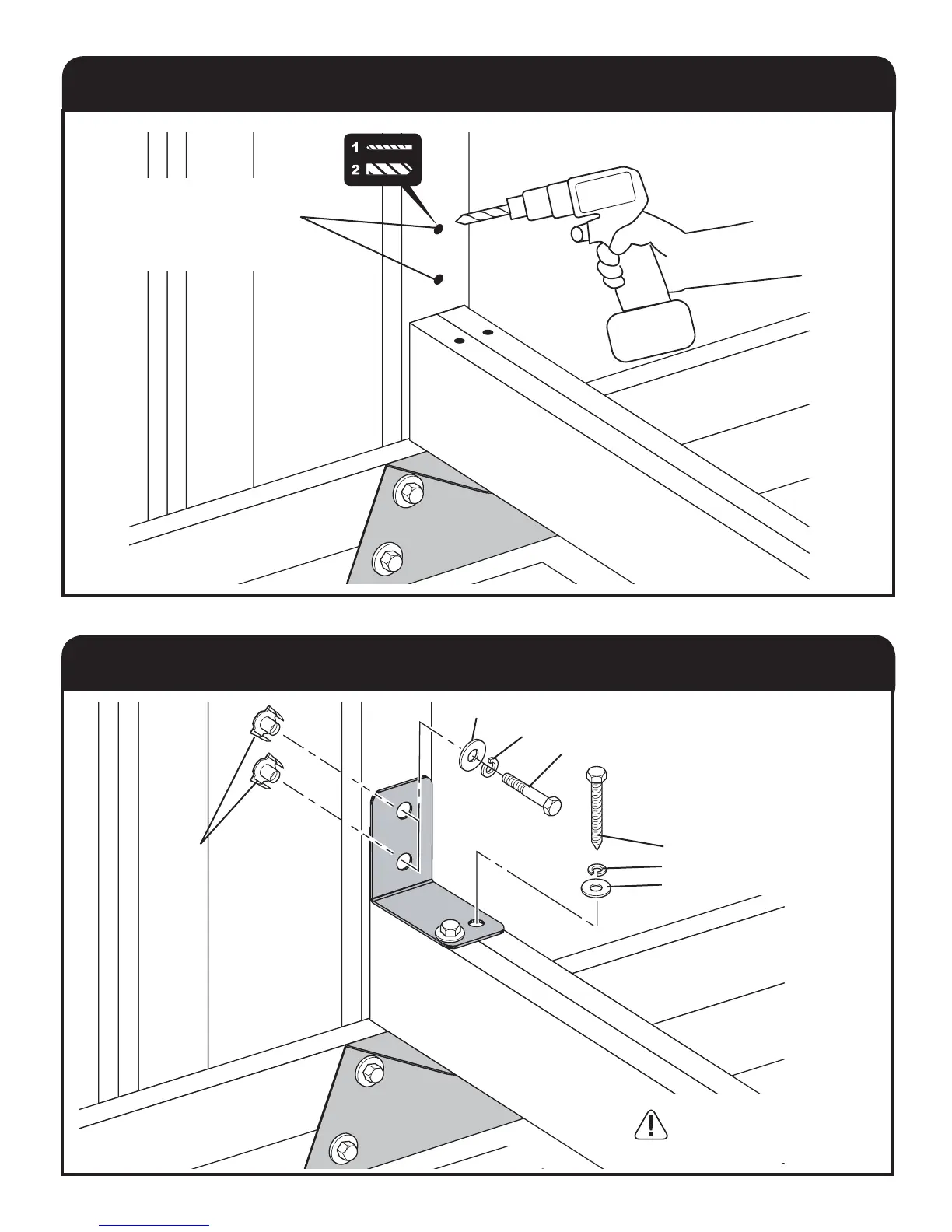

2. Re-drill from opposite side
using 1/2” bit.
1. Pre-drill using 1/4” bit.
TOP BRACKET
SEE PAGE 7
FORT
TOP BRACKET
3/8" x 2-1/2" Lag Bolt
Lock Washer
Flat Washer
Flat Washer
Lock Washer
1-1/2" Hex Bolt
T-Nut x2
x2
x2
You may need to add
washers to make hex
bolt  ush with T-nut.
