Yardline 4130 User Manual

62

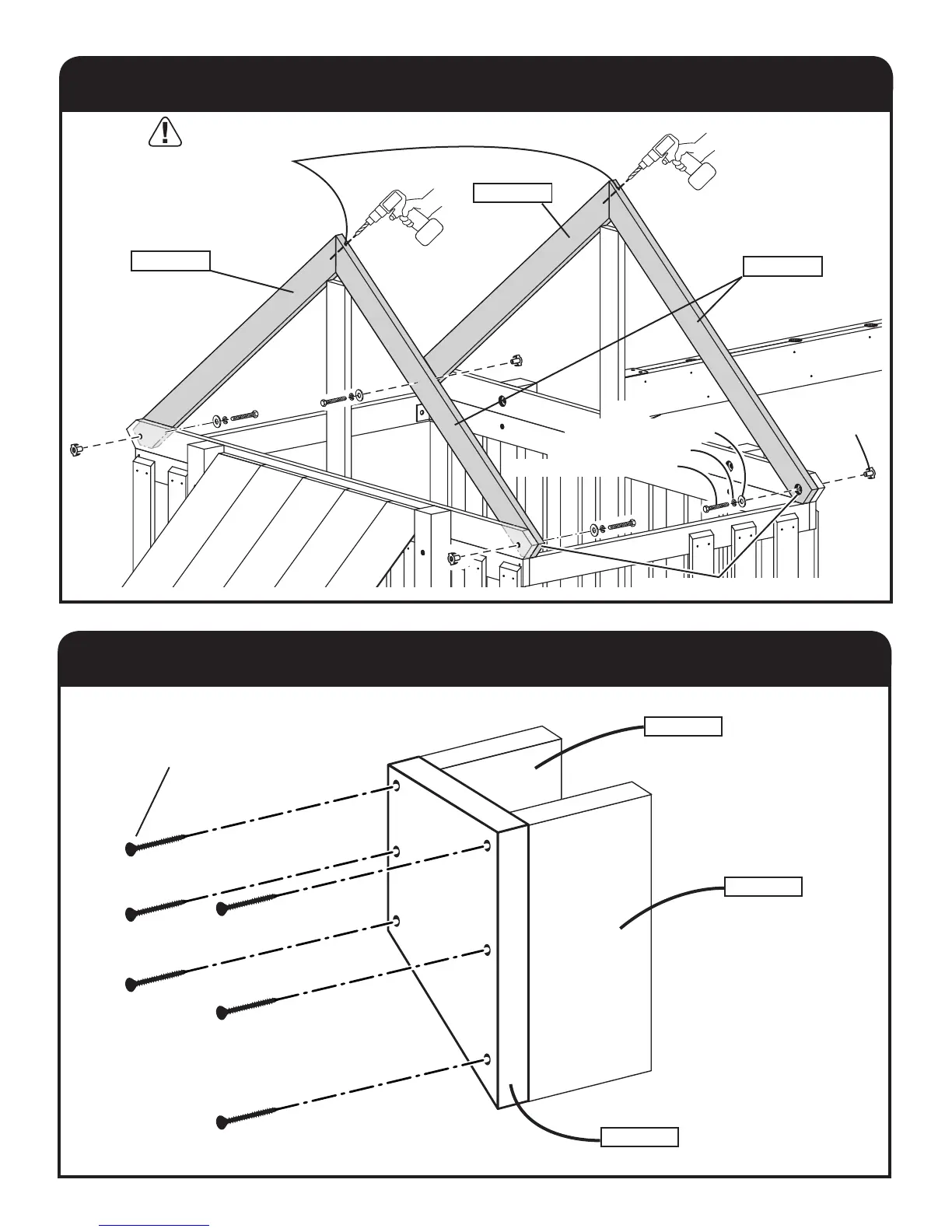

SOLID ROOF INSTALL
T-Nut
x4
3/8 x 1-3/4” Hex Bolt
Lock Washer
Flat Washer
x4
Pre-drill 1/8” pilot holes 2” DEEP.
Install one 3” wood screw to secure
2379-MS and 2380-MS together
Counter-Bores are to inside of roof.
5/4 x 4 x 48-5/8”
x1
2379-MS
5/4 x 4 x 48-5/8”
x1
2379-MS
5/4 x 4 x 48-5/8”
x2
2380-MS
CHIMNEY ASSEMBLE
5/4 x 6 x 7-13/16”
x1
2384-MS
5/4 x 6 x 11-1/2”
x1
2385-MS
5/4 x 6 x 11-1/2”
x1
2383-MS
(6) 2-1/2” Wood screws
