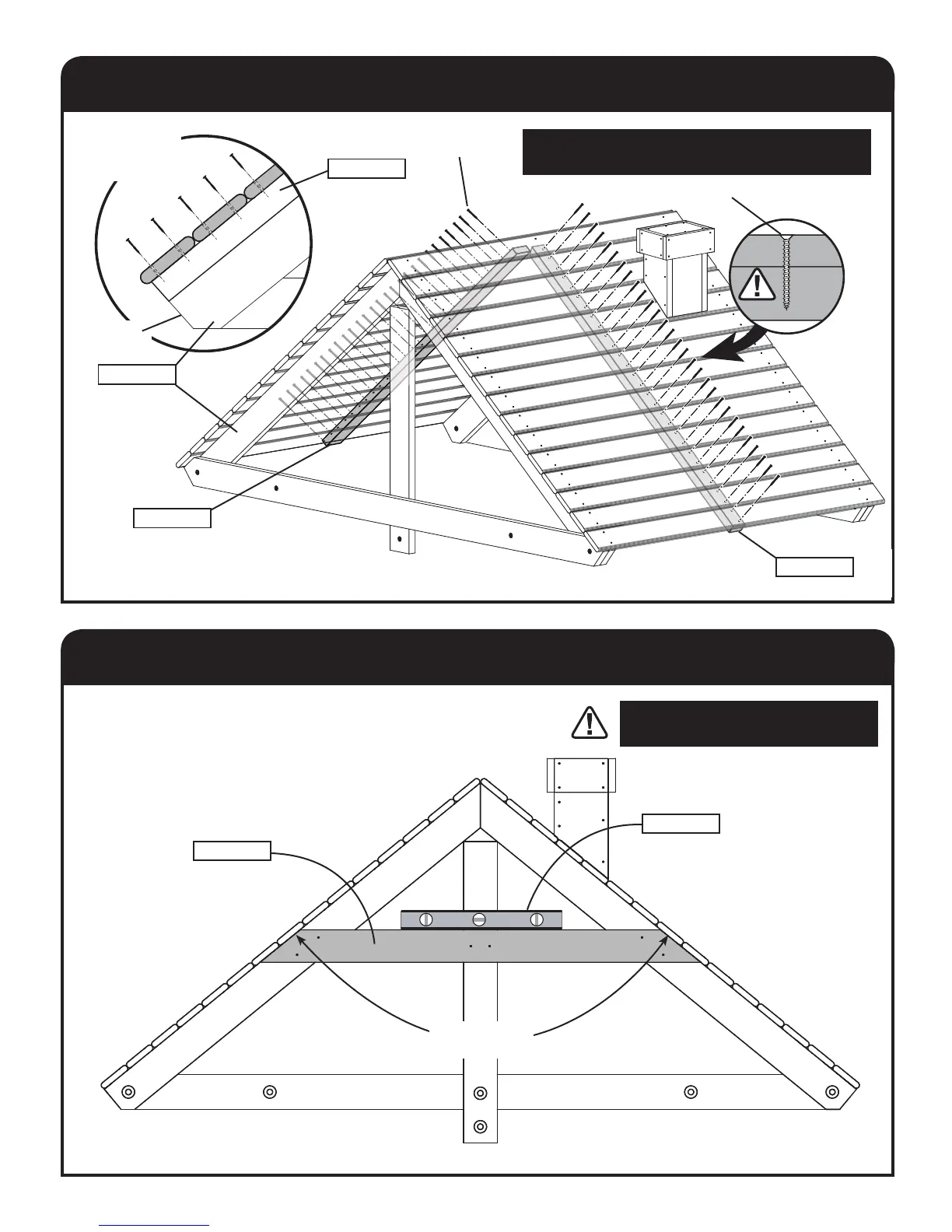

SOLID ROOF INSTALL
(58) 1-1/4”
Wood Screws
1 x 3 x 47-3/8”
x1
2382-MS
2382-MS
2380-MS
1 x 3 x 47-3/8”
x1
2382-MS
Flush
WARNING! Install screws  ush with roof
board to avoid protruding below roof.
Align 2382-MS
with 2379-MS
and 2380-MS
Flush
SOLID ROOF INSTALL
5/8 x 3-1/4 x 43-7/8”
x1
2376-MS
LEVEL
Flush up with
roof slats.
Secure 2376-MS with
(6) 1-1/4” wood screws.
Install on INSIDE of fort.
x2
