Yardline RIDGEPOINTE - VENTS INSTALLATION

66
FINISH
BEGIN
1
2
3
PARTS REQUIRED:

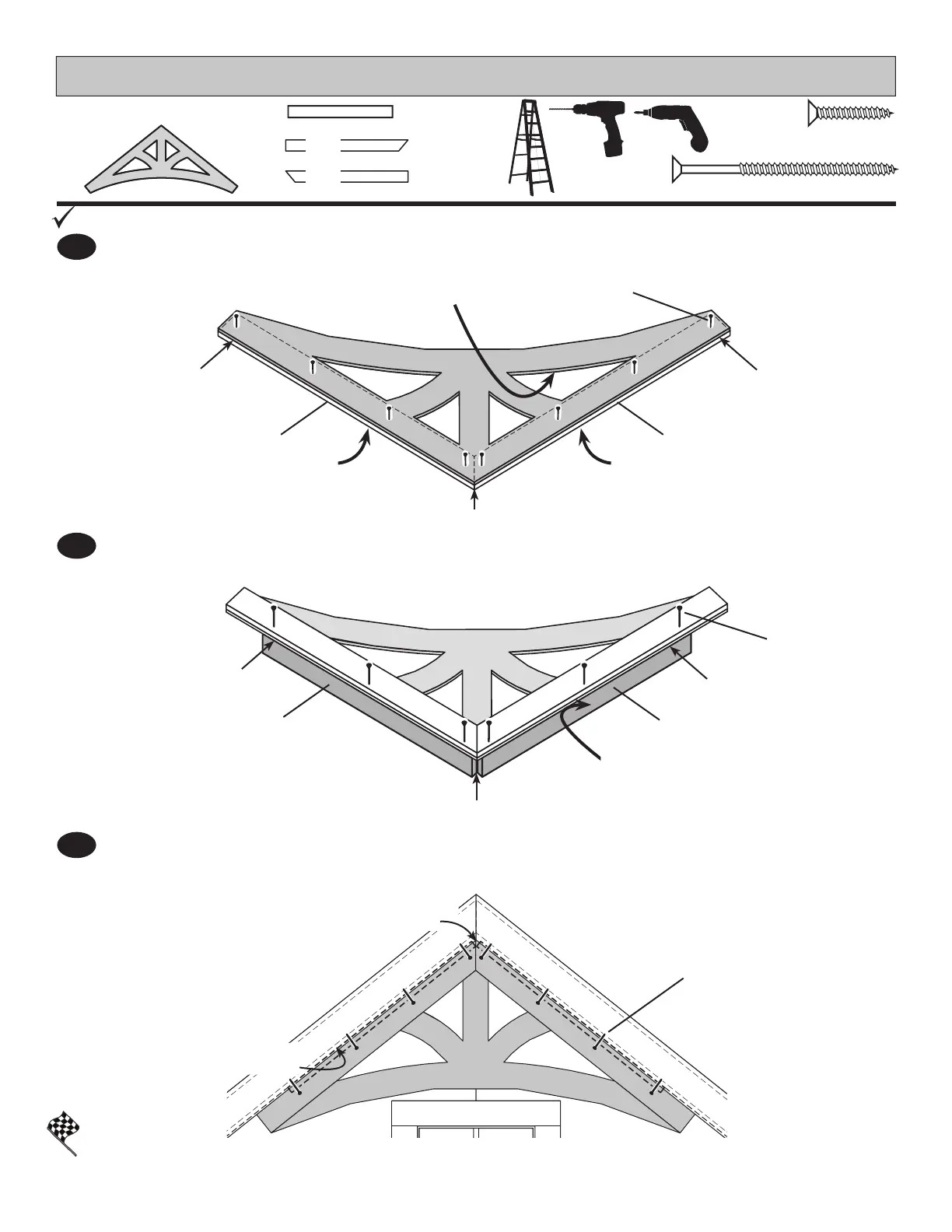

GABLE DECORATIVE TRIM
Position gable decoration primed side facing down on top of BZL and BZR  ush along edges and at peak.
Secure with 3/4" screws.
Turn decoration over. Align gable cleat GI on edge with edge of assembled decoration and  ush at peak.
Fasten with 2" screws spaced evenly. Pre-drill all holes.
Install gable decoration with the primed side facing out,  ush to back side of gable fascia and  ush at peak.
Secure to overhang frame with (8) 2" screws, as shown.
Your front gable decorative trim is installed.
Gable Cleat
x1
19/32 x 2-1/2 x 27-9/16" (1,5 x 6,3 x 70 cm)
BZL
x1
19/32 x 2-1/2 x 27-9/16" (1,5 x 6,3 x 70 cm)
BZR
x1
x8
3/4" (1,9 cm)
Primed
Side
OUT
Flush under

Flush at
PEAK

Screws
Flush
Flush
BZRBZL
Flush

Screws
Primed Side
DOWN
Primed Side
DOWN
Primed Side
DOWN
x2
19/32 x 2-1/2 x 23" (2,5 x 6,3 x 58,4 cm)
GI
x14
2" (5,1 cm)
Flush
Flush
Flush
GI
GI

Screws
Primed
Side
UP
Primed Side
IN
