ASSEMBLING YOUR LAWN MOWER
11

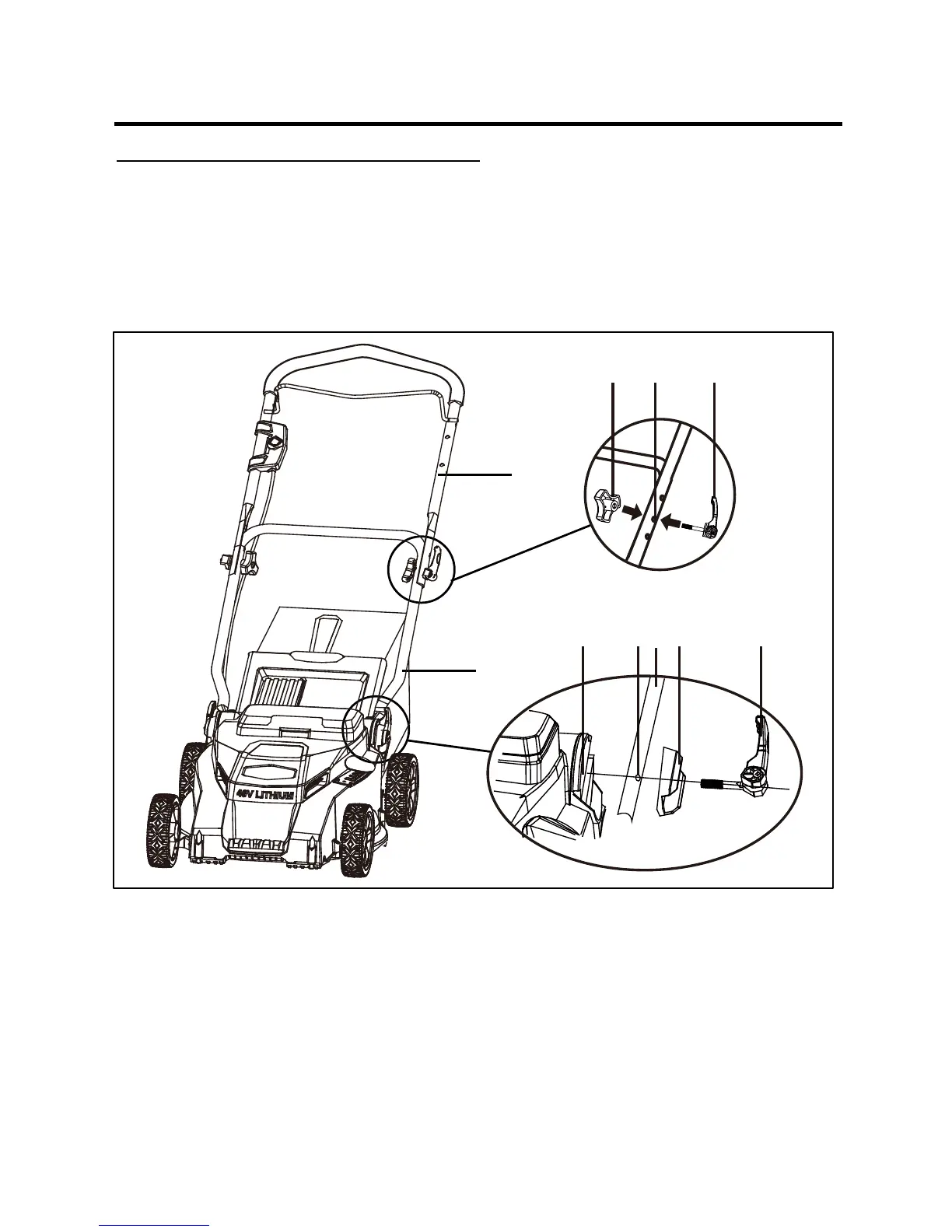

ASSEMBLING THE HANDLE (Fig. 4)
1. Remove any packing material that may have been inserted between the upper and lower
handles for shipping purposes.
3. Align the holes (6) on the upper handle (1) and the lower handle (2).
Insert the cam lock (7), and tighten them using the knobs (8) provided.
2. Align the holes (1) on the lower handle (2) and the handle mounting bracket (3).
Secure the lower handle (2) to the handle mounting bracket with a cam lock (4) and a
spacer (5) in each side.
3
2
Fig. 4
7
3 21
45
8
6
