YASKAWA iQpump1000 - ALARM (ALM) LED Displays; AUTO LED and HAND LED Indications

No. Name Display Content
7
Function Key 2
(F2)
<-
MONITOR-
>
Pressing
F2
displays the next Quick Monitor.
DATA
Pressing
F2
scrolls to the next display.
→
Pressing
F2
scrolls the cursor to the right.
RESET
Pressing
F2
resets the existing drive fault error.
Monitor
Pressing
F2
switches Monitor mode.
8 FWD/REV
FWD Indicates forward motor operation.
REV Indicates reverse motor operation.
9
Function Key 1
(F1)
<-
MONITOR-
>
Pressing
F1
displays the next Quick Monitor.
←
Pressing
F1
scrolls the cursor to the left.
Home
Pressing
F1
returns to the top menu (Frequency Reference).
ESC
Pressing
F1
returns to the previous display.
Monitor
Pressing
F1
switches Monitor mode.
<1> Displayed when in Frequency Reference Mode.
<2> Displayed when in Frequency Reference Mode and Monitor Mode.
u
ALARM (ALM) LED Displays

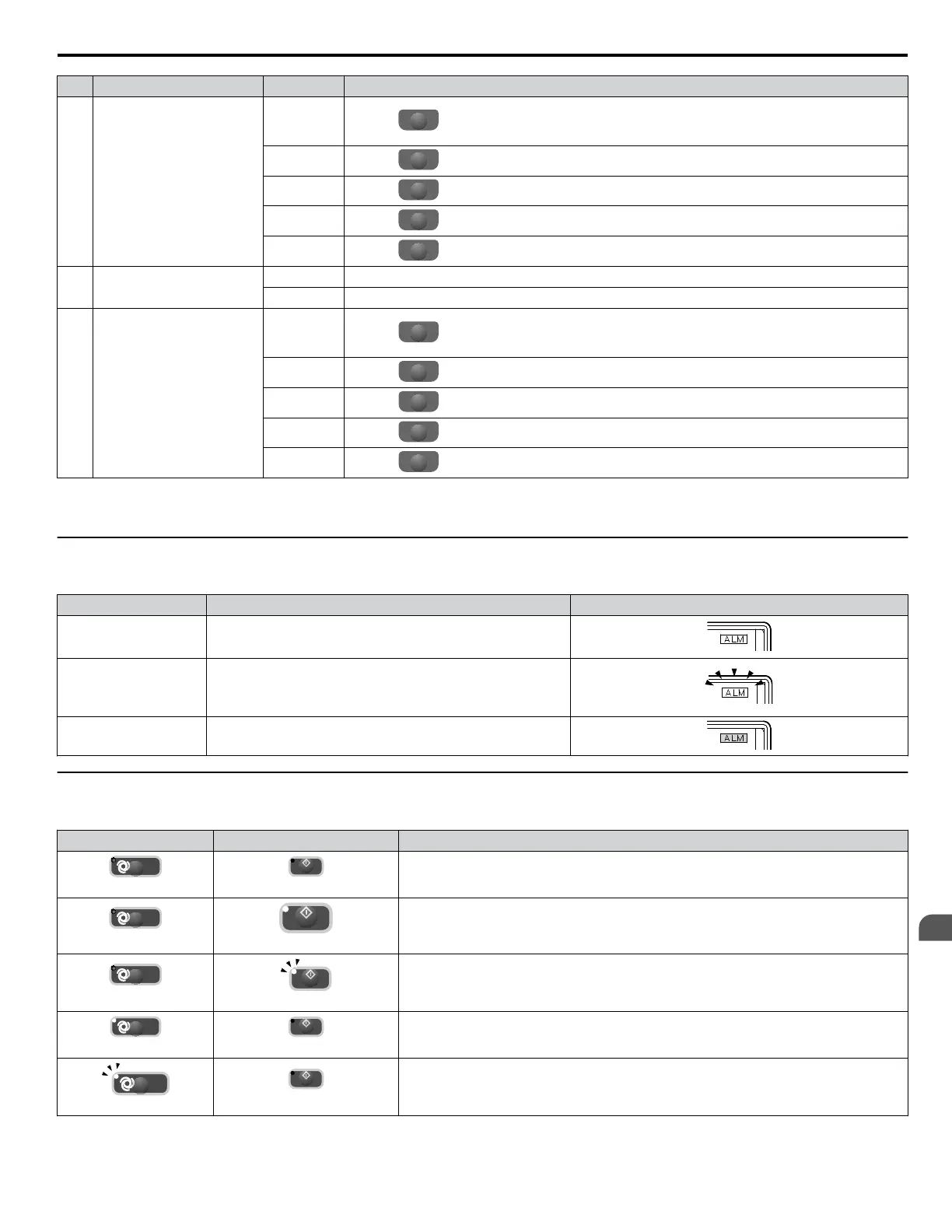

Table 4.4 ALARM (ALM) LED Status and Contents
State Content Display
Illuminated When the drive detects an alarm or error.
Flashing
• When an alarm occurs.
• When an oPE is detected.
• When a fault or error occurs during Auto-Tuning.
Off Normal operation (no fault or alarm).
u
AUTO LED and HAND LED Indications
Table 4.5 AUTO LED and HAND LED Indications
AUTO LED HAND LED State
AUTO
Off
HAND
Off
OFF mode
AUTO
Off
HAND
On solid
HAND mode
AUTO
Off
HAND
Long blink (50% duty)
HAND mode when the Frequency Reference is 0 and/or decelerating in HAND mode.
AUTO
On solid
HAND
Off
Running in AUTO mode
AUTO
Long blink (50% duty)
HAND
Off
Running in AUTO mode when the Frequency Reference is 0 and/or decelerating in AUTO
mode.
4.3 Using the HOA Keypad
