Yealink USB2CAT5E-EXT - Connection Scenarios; Extending USB Peripheral Signal Length; MTouch II to Mini-PC Connection

3
Connection
Extender (Transmitter)
Extender (Receiver)
Power Adapter
MCore
USB peripherals
(for example, USB camera or speaker)
5V
5V
5V

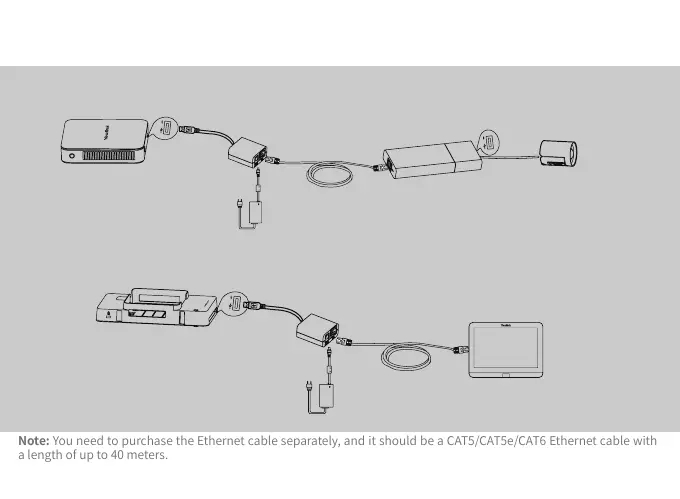

Scene 1: Extend the length of your USB peripheral signal
Scene 2: As an adapter for MTouch
Ⅱ
to connect to a third-party mini-PC
Power Adapter
Extender (Transmitter)
Mini-PC
MTouch
Ⅱ
Note: You need to purchase the Ethernet cable separately, and it should be a CAT5/CAT5e/CAT6 Ethernet cable with
a length of up to 40 meters.
