Page #7 background imageLoading...
Page #7 background image
6
延长线盒子(发送端)
延长线盒子(发送端)
延长线盒子(接收端)
电源适配器
MCore
Mini-PC
USB 外设
(如 USB 摄像头 , USB 扬声器等)

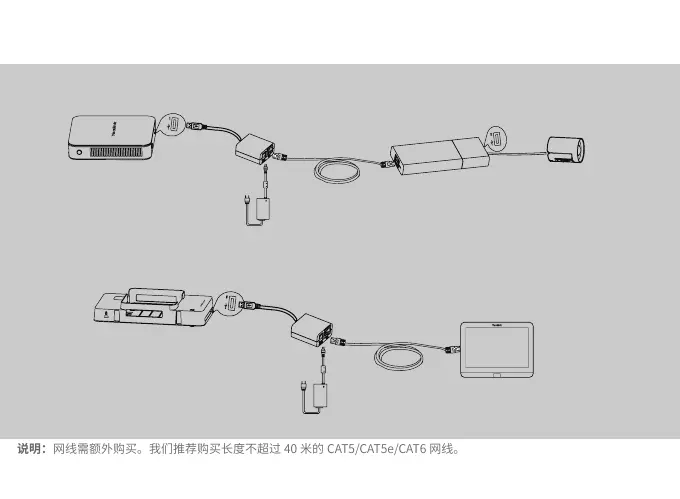

场景 1: 延长 USB 外设信号的传输距离
场景 2: 作为 MTouch Ⅱ连接第三方 mini-PC 的转接器
5V
5V
5V
MTouch
电源适配器
连接
说明:网线需额外购买。我们推荐购买长度不超过 40 米的 CAT5/CAT5e/CAT6 网线
网线
USB-A
网线
USB-A
USB-A
