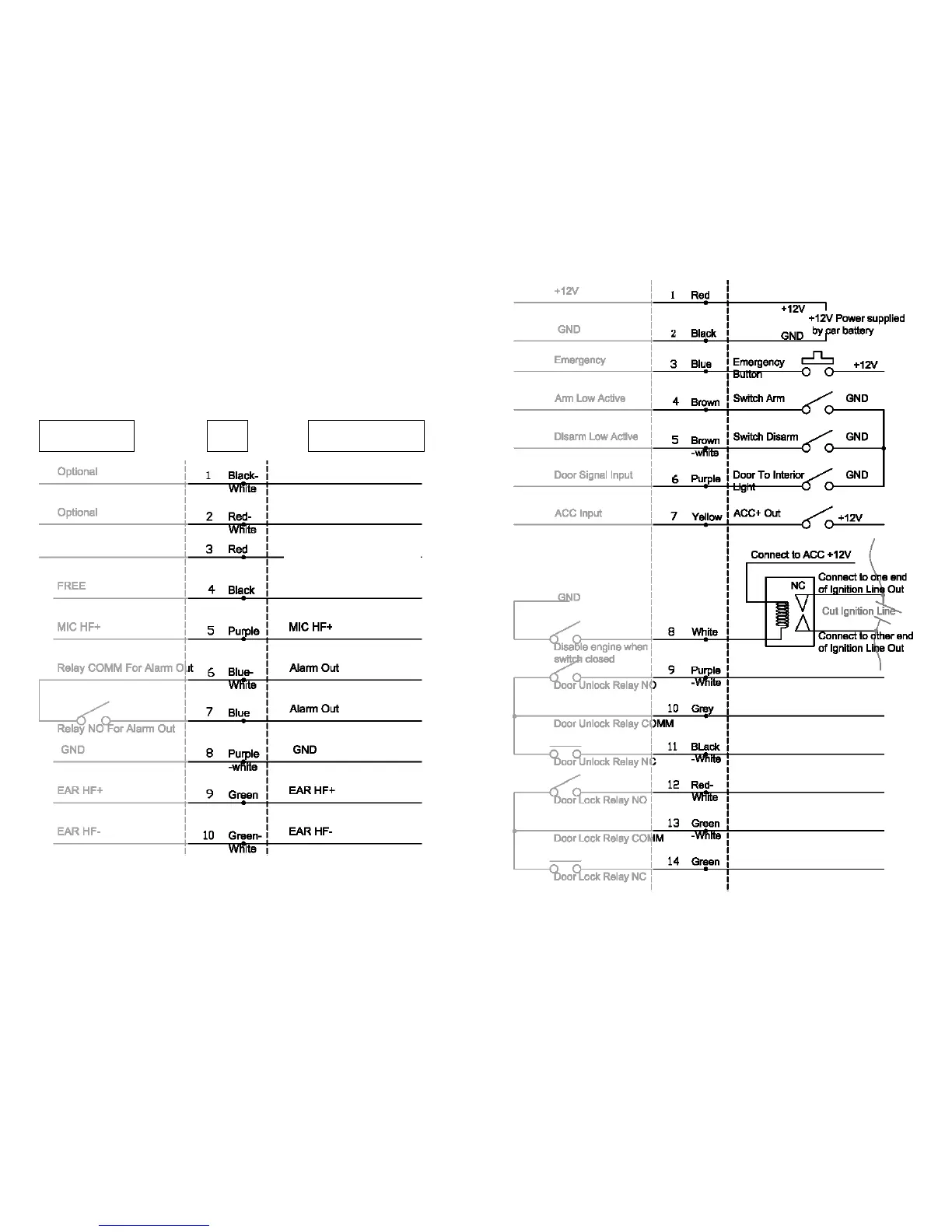

CON 1 Wiring Diagram (CON 2 see opposite side)
¾ When laying the wiring loom
• Try to ' bury' all wiring
•
Avoid abrasive corners and sharp edges
•
Avoid sharp folding and pinching the cables
Make sure that the connections have been made correct before you
connect the Main Connector to the Vehicle Unit.
12
Vehicle Unit Vehicle Wiring PIN
