Handlebar Installation Guide
Route the cable in to
the Junction Box.
Shifter Angle Adjustment

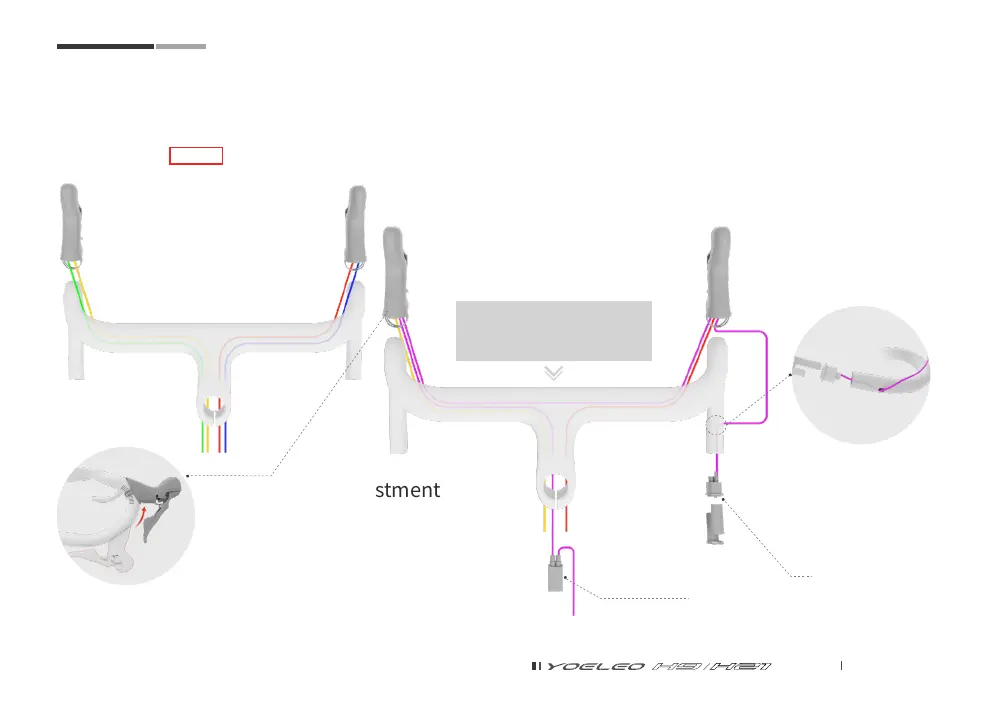

Di2 11-Speed cable
routing diagram
Shifter/Brake lever Installation
Carefully observe the bolt's length before attempting to tighten. Use torque wrench to tighten
the bolt around 6-8Nm
Junction Box B (Optional)
Junction box A
Follow line marks on both side of the
bar to level left and right shifter. Apply
carbon paste for better grip.
To Next Page
