5.19 Analog Out
Procedure

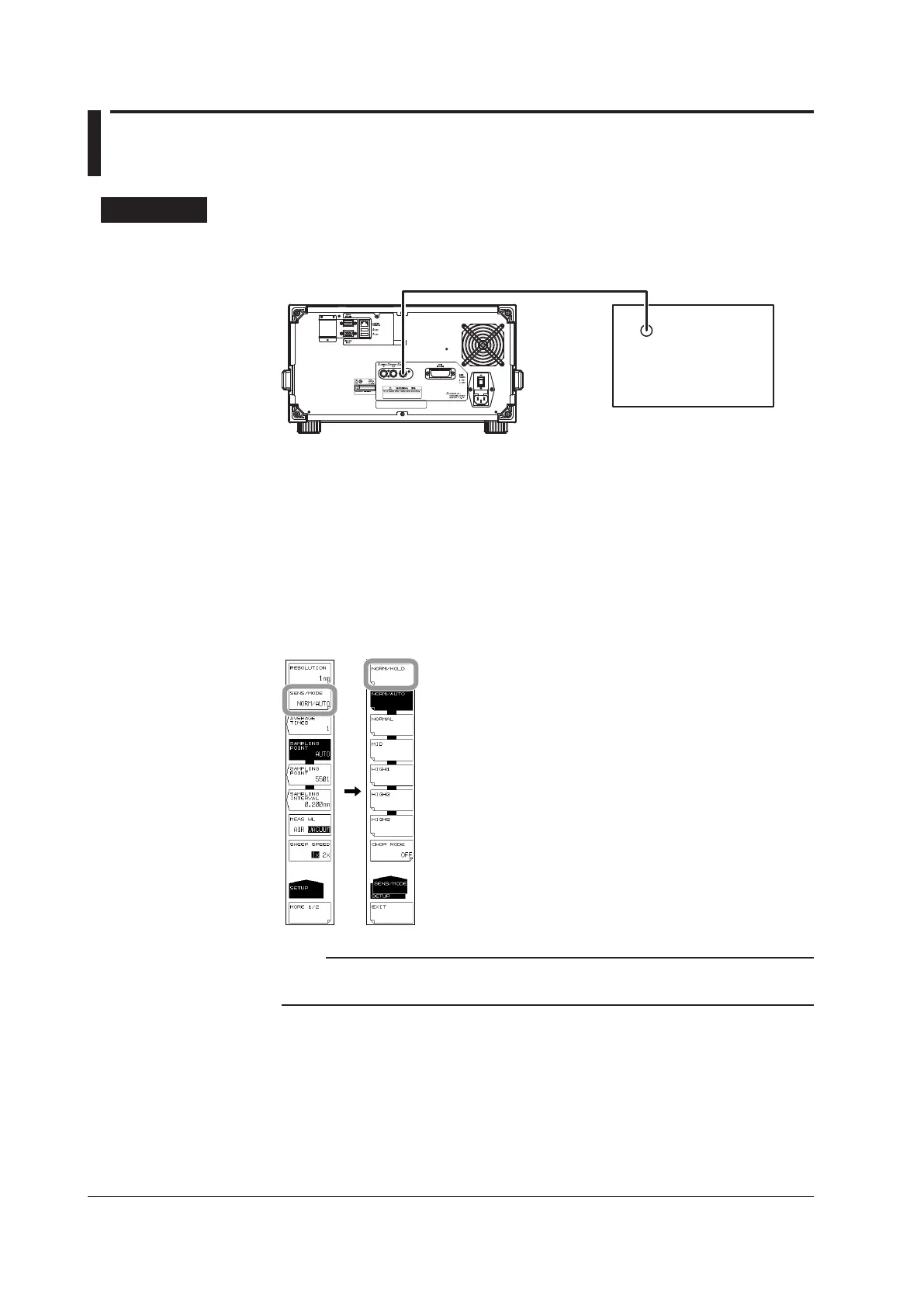

Connecting to the Oscilloscope
AQ6370D
Oscilloscope
INPUT
Coaxial cable
1.
Press SETUP. The soft key menu for sweep condition settings appears.
2.
Press the SENS/MODE soft key. Seven sensitivity choices appear in the soft key
menu.
3.
Press the NORM/HOLD soft key. The screen returns to the previous stage, and
NORM/HOLD is displayed for the SENS/MODE soft key.
4.
Press SWEEP. The soft key menu for sweep appears.
5.
Press the SINGLE or REPEAT soft key. An analog voltage is output corresponding
to the input light.
Note
• The analog out function is enabled only when the sensitivity is set to NORM/HOLD.
• If the level of the input light is high, the output voltage level is saturated.
