5.1 SettingDisplayGroups
Assign channels and set the group name for each display group. Set lines at specified
positions in the waveform display range on the Trend display.

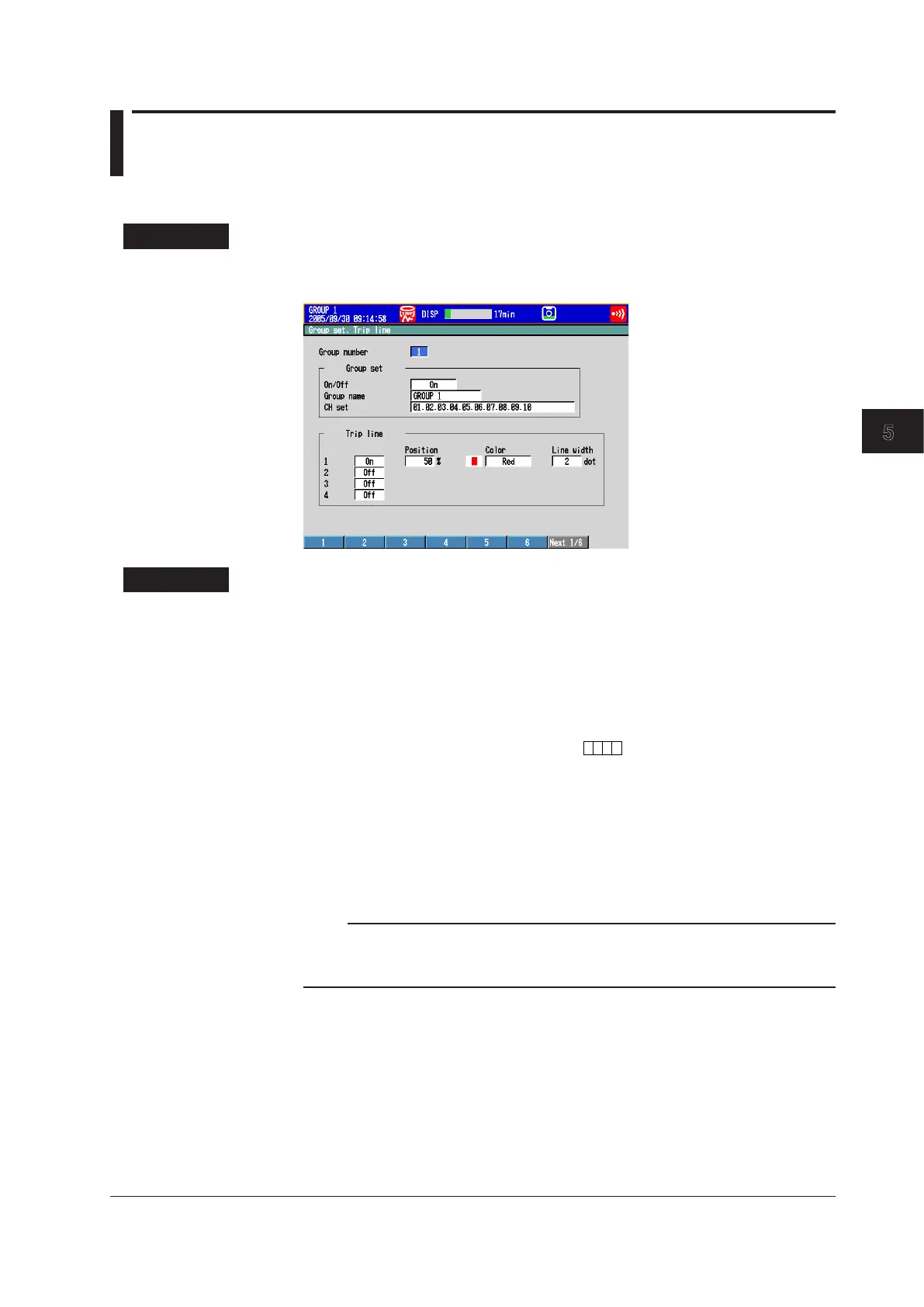

SetupScreen
Press MENU (to switch to setting mode), and select the Menu tab > Groupset,Trip
line.
SetupItems
• Groupnumber
Select the target group number (1 to 36).
• Groupset
 • On/Off
Turn On the groups you want to use.
 • Groupname
Set the group name. (up to 16 characters,
A a # 1
)
 • CHset
Set up to 10 channels from measurement channels, computation channels (/M1
and /PM1 options), and external input channels (/MC1 option).
• Enterthechannelnumberusingtwoorthreedigits.
• Separateeachchannelwithaperiod.
• Tospecifyarangeofconsecutivechannelsnumbers,useahyphen.
Example: To assign channels 1 and 5 to 8, enter “001.005-008.”
Note
• Thetrend,digital,andbargraphdisplaysareshowninthespecifiedorder.
• Achannelcanbeassignedtomultiplegroups.
• Thesamechannelcannotbeassignedmultipletimesinagroup.
