Switching Operation Screens
4-5
IM 04L42B01-01E
1
2
3
4
5
6
7
8
9
10
11
12
13
App
Index

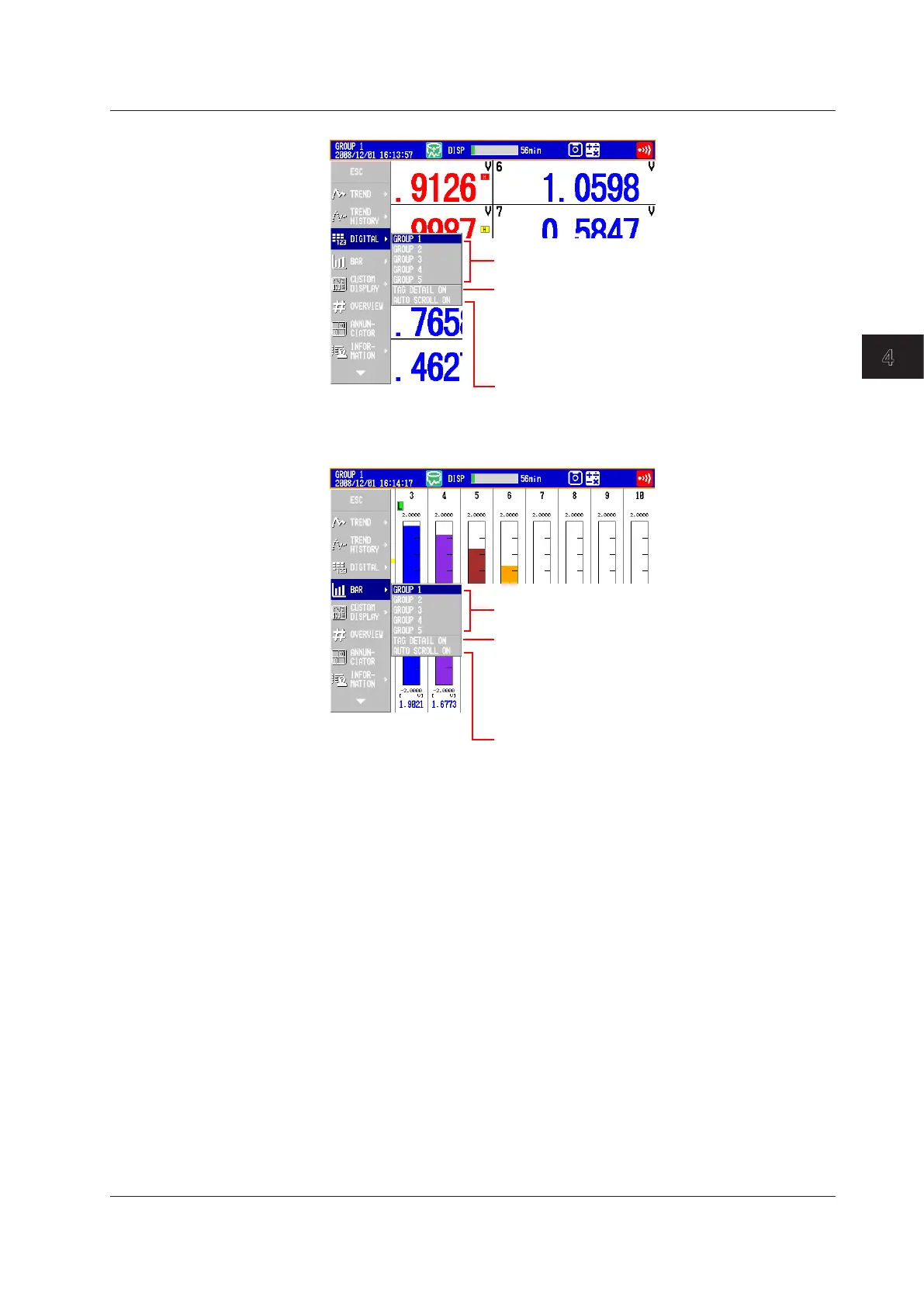

Digital display sub menu
AUTO SCROLL ON: Automatically switches the
displayed groups
AUTO SCROLL OFF: Does not automatically switch
the displayed groups
Group name: Displays the group
TAG DETAIL ON: When a tag does not fit into
the typical tag display space,
the alarm and measured values
are covered so that the tag can
be displayed completely.
TAG DETAIL OFF:
Priority is not given to tag display.
Bar graph display submenu
Group name: Displays the group
AUTO SCROLL ON: Automatically switches the
displayed groups
AUTO SCROLL OFF: Does not automatically switch
the displayed groups
TAG DETAIL ON: When a tag does not fit into
the typical tag display space,
the alarm and measured values
are covered so that the tag can
be displayed completely.
TAG DETAIL OFF:
Priority is not given to tag display.
4.
Press DISP/ENTER to change the displayed contents.
To close the menu without changing the displayed contents, press the
ESC
key.
• StartingtheWaveformDisplayoftheTrendDisplay/Stoppingthe
WaveformUpdating
Press START to start the waveform display of the trend display. Press STOP to stop
the waveform updating.
• WritingMessages
See section 5.4.
• SwitchingtheDisplayedGroupUsingArrowKeys
Press the rightarrowkey to switch the displayed group in ascending order. Press the
leftarrowkey to switch the displayed group in reverse.
• SwitchingtheTrend,Digital,andBarGraphDisplaysUsingtheArrow
Keys
Press the downarrowkey while showing the trend, digital, or bar graph display to
switch the display in the order trend, digital, bar graph, trend, and so on. Press the up
arrowkey to switch the display in reverse order.
4.2DisplayingtheMeasuredDataasWaveforms,Values,orBarGraphs
