Note
The channel settings of a display group can be copied to another group on a DX with release
number 2 or later.
Procedure
1. Select the copy source channel settings.
2. Press the
Copy
soft key.
3. Select the copy destination channel settings.
4. Press the
Paste
soft key. The channel settings are copied.

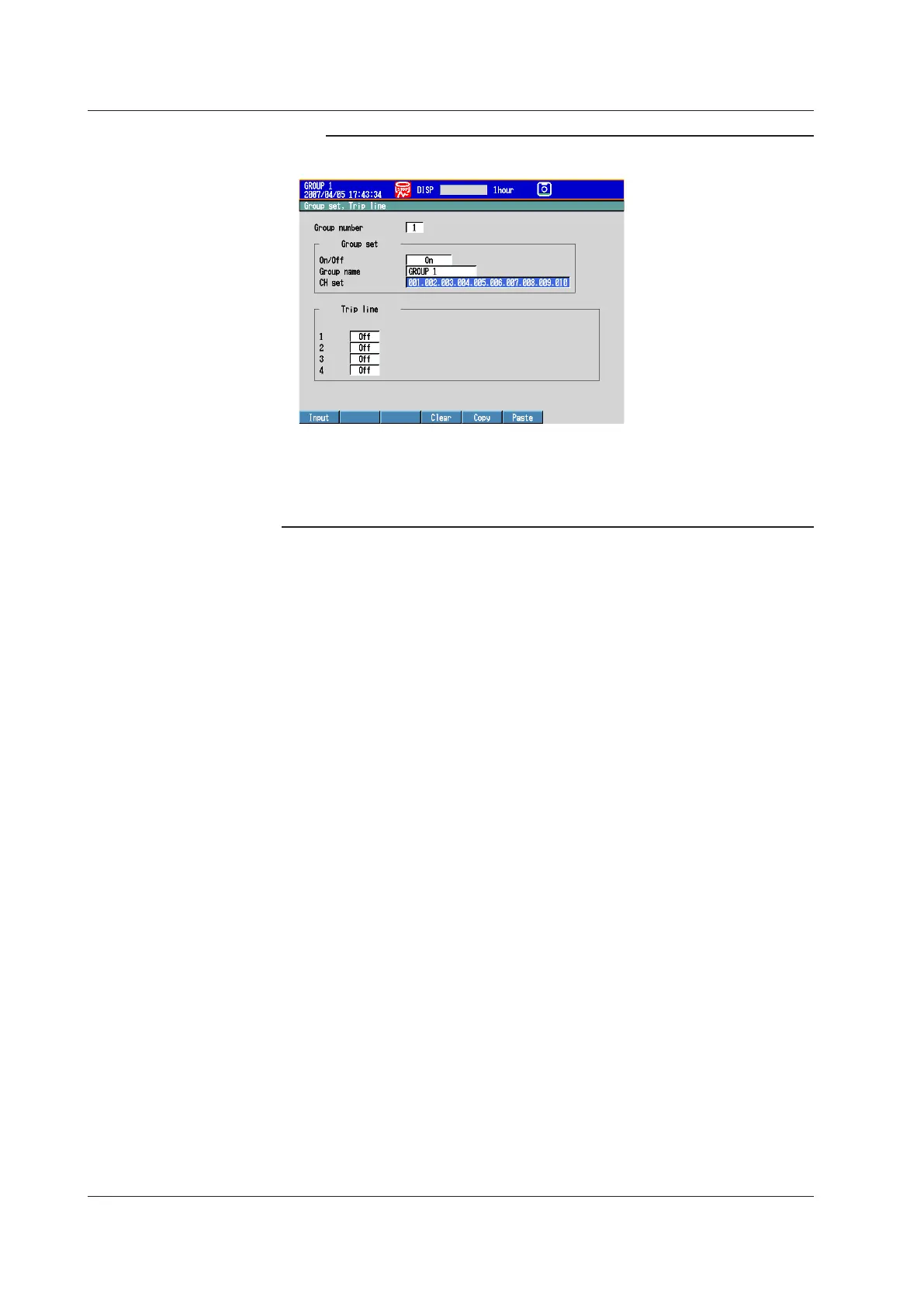

• Tripline
Set lines at specified positions in the waveform display range on the Trend display.
 • On/Off
Turn On the trip lines you want to display.
 • Position
Set the position in the range of 0 to 100% of the display width.
 • Color
The default colors are red, green, blue, and yellow. If you want to change the color,
select from the 24 available colors.
 • Linewidth
Set the line width of the trip line in dots (1 to 3).
