Operations for Changing the Displayed Contents
1
2
3
4
5
6
7
8
9
10
11
12
13
App
Index
• MessageNo.
Select the message number (1 to 100). Messages 1 to 10 are common with free
messages.* If a message is changed as a free message, the old message is
overwritten.
* Messages that are written by creating the message on the spot.
• Message>Characters
Set the message. (up to 32 characters,
A a # 1
)
Procedure
• WritingMessages
Messages cannot be written when the memory sampling is stopped.
1.
Display the group to write the message.
•Ifascreenunrelatedtoagroupsuchastheoverviewisdisplayed,messagesarewrittento
all groups even when Writegroup is set to Separate. For the four panel display, messages
are written to the displayed groups.
•MessagesarewrittentoallgroupsregardlessofthedisplayedscreenwhenWritegroup is
set to Common.
2.
Press FUNC.
The FUNC key menu appears.
3.
Press the Message soft key.
4.
Press the softkey corresponding to the desired message number range
(example: [1-10]).
A list of message is displayed.
5.
Press the softkey corresponding to the number of the message you want to
write.

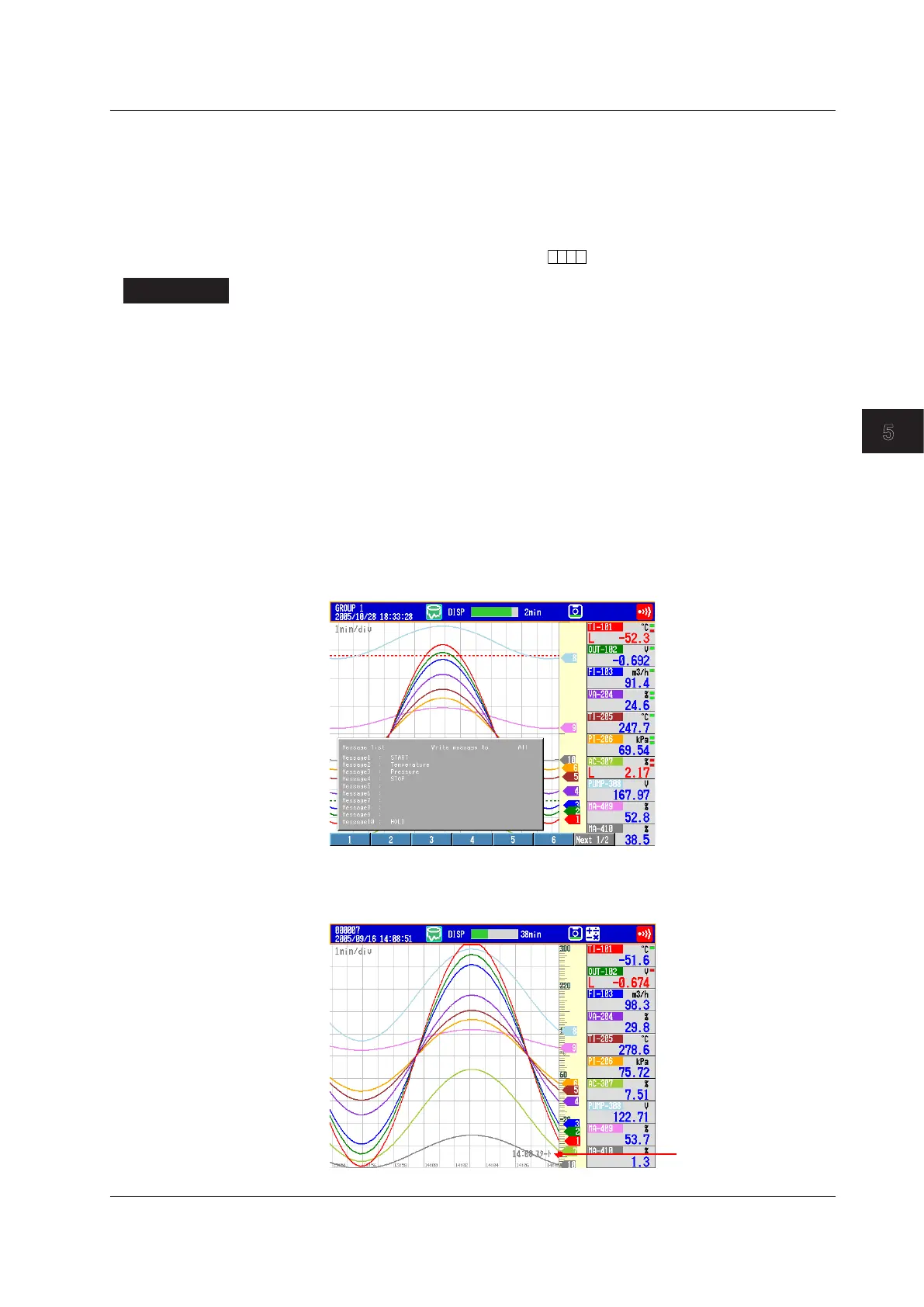

A message mark, time, and message are shown on the trend display.
Message
5.4WritingMessages
