Sensor
(EP16 model)
FS40-S23-DF

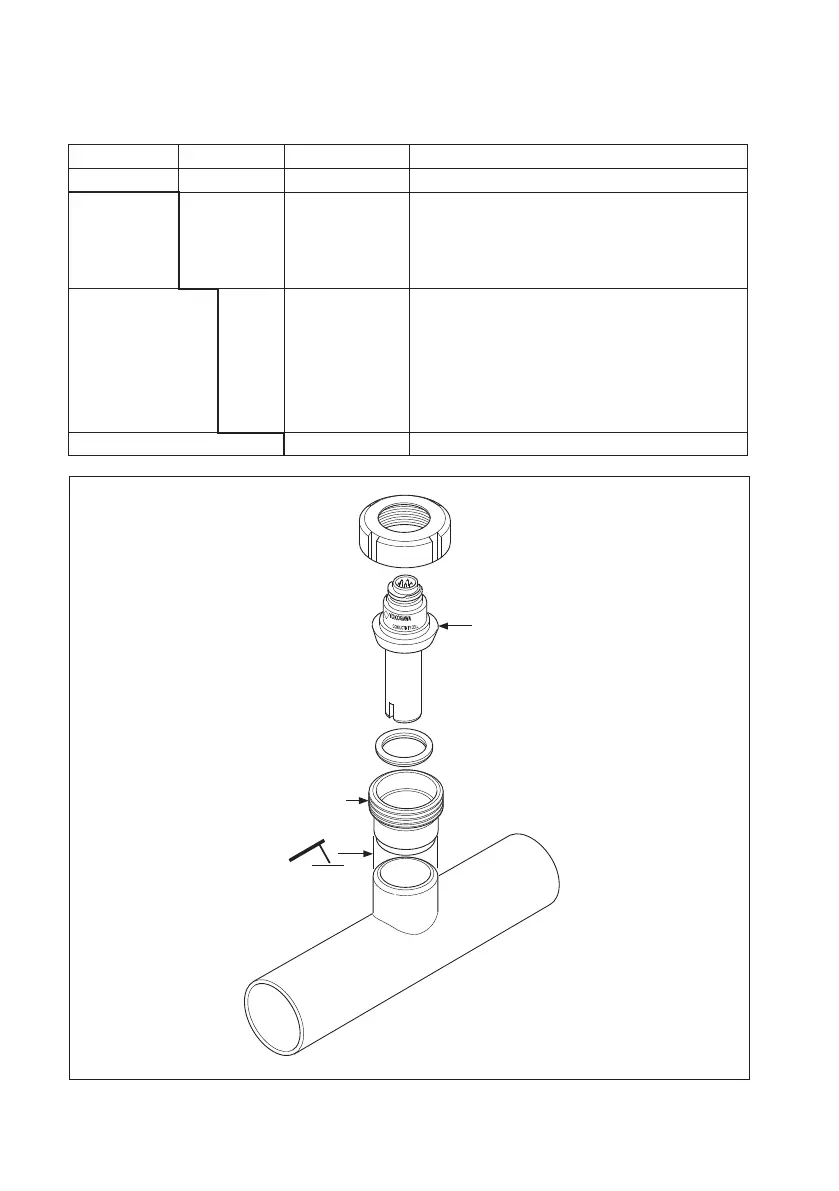

Fig. 18 Installation example of the SC41/SC42/-EP16 sensor
with a FS40-S23-DF subassembly
Modelcode FS40 Subassembly for Flow fitting
Model code Suffix code Option code Description
FS40 Subassembly for Flow fitting
Material - F22 Polyvinylidenefluoride (PVDF)
- S22 Stainless steel (AISI 316)
- S23 Stainless steel (AISI 316) for EP16 model sensor
- V22 Polyvinylchloride (PVC)
Mounting - WE Weld-in socket for - S22 and - S23
Glue-in socket for - V22
- PA Parallel thread, only for - F22, (ISO 228/1-G1
1
/
4
”)
- TP Tapered pipe thread (1
1
/
4
” NPT)
- DF For insertion type sensor with collar piece
DN25 in combination with - S23
Material Certificate /M 3.1 according to EN-10024 on wetted parts
