STT113 TOWER CRANE OPERATION AND SERVICE MANUAL
8B
-
17
4. Tuning and repair
4.1 The electrical circuit inside the wind display has already been adjusted, so
there in no need for further tuning. In the event of sufficient depreciation and
/or rough transport conditions, the display can be inaccurate, or the preset
limit can be biased. In this case, a specialist can open the box and adjust the
corresponding potentiometer;
Each potentiometer has the following purposes:
W1--13m/s limit alarm setup；
W2--20m/s limit alarm setup；
W3—LED bar full capacity adjustment；
W4—wide-angled needle display full capacity adjustment；
W5—test signal magnitude adjustment；

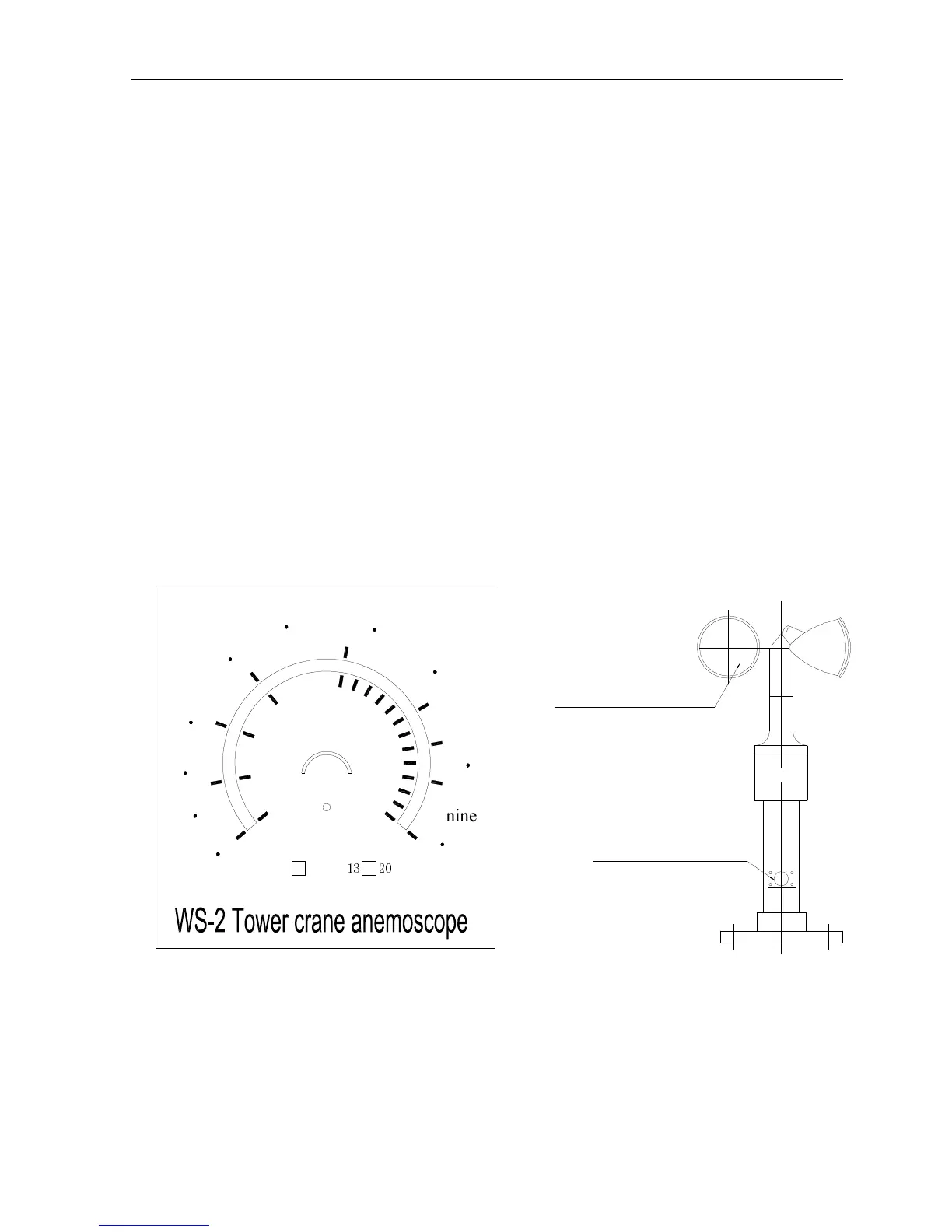

Signal display wind sensor
ONOFF
2013
nine
eight
seven
six
five
four
three
two
one
wind speed
82
72
66
59
43
27
20
10
25
20
13
8.3
6
3
0
0
ft/s
m/s
alarm
limit
night light
three weather vane
same direction
Signal output socket
