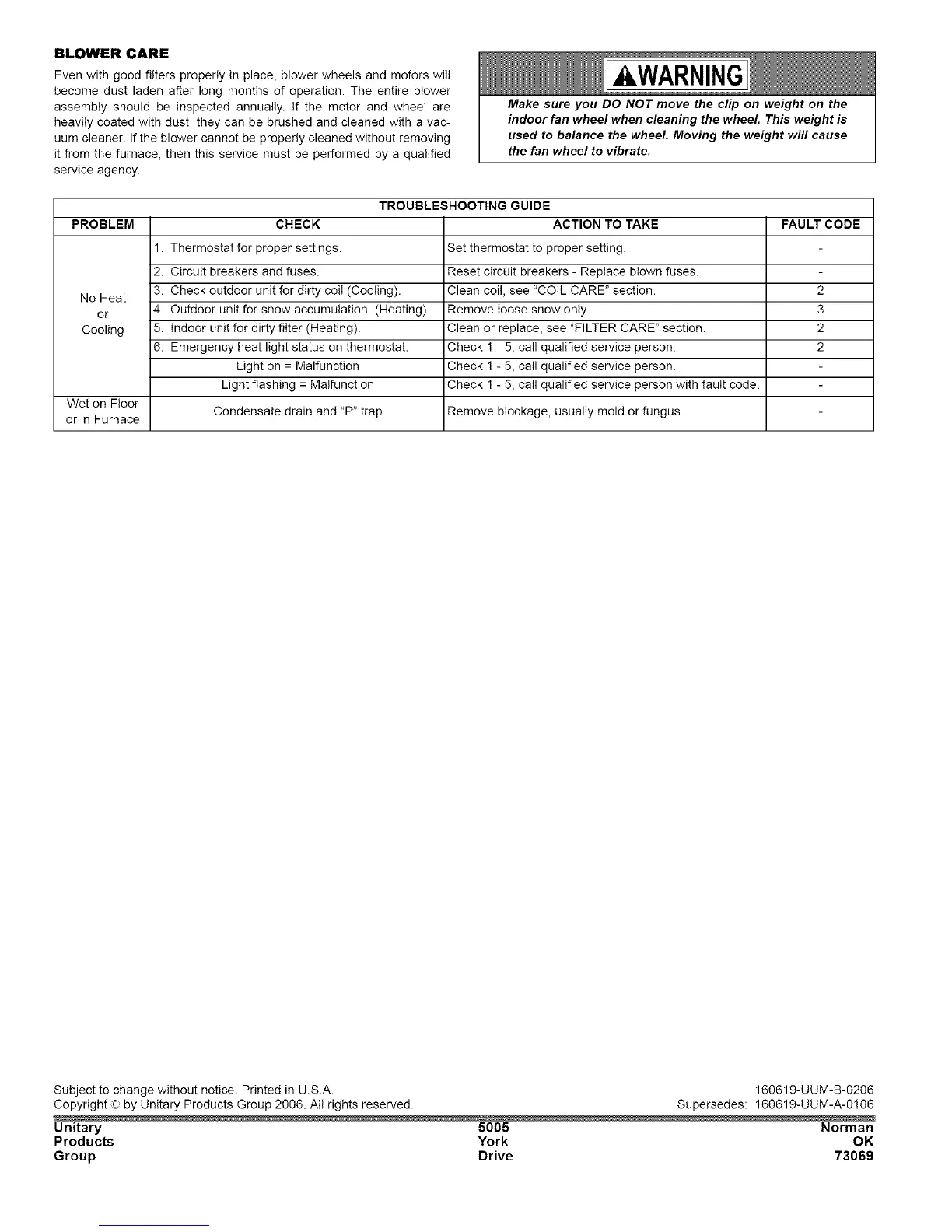

BLOWER CARE
Even with good filters properly in place, blower wheels and motors will
become dust laden after long months of operation. The entire blower
assembly should be inspected annually. If the motor and wheel are
heavily coated with dust, they can be brushed and cleaned with a vac-
uum cleaner. Ifthe blower cannot be properly cleaned without removing
it from the furnace, then this service must be performed by a qualified
service agency.
Make sure you DO NOT move the clip on weight on the
indoor fan wheel when cleaning the wheel This weight is
used to balance the wheel. Moving the weight will cause
the fan wheel to vibrate.
TROUBLESHOOTING GUIDE
PROBLEM CHECK ACTION TO TAKE FAULT CODE
1. Thermostat for proper settings. Set thermostat to proper setting.
2. Circuit breakers and fuses. Reset circuit breakers - Replace blown fuses.
3. Check outdoor unit for dirty coil (Cooling). Clean coil, see "COIL CARE" section. 2
No Heat
or 4. Outdoor unit for snow accumulation. (Heating). Remove loose snow only. 3
Cooling 5. Indoor unit for dirty filter (Heating). Clean or replace, see "FILTER CARE" section. 2
6. Emergency heat light status on thermostat. Check ! - 5, call qualified service person. 2
Light on = Malfunction Check ! - 5, call qualified service person.
Light flashing = Malfunction Check 1 - 5, call qualified service person with fault code.
Wet on Floor
Condensate drain and "P" trap Remove blockage, usually mold or fungus.
or in Furnace
Subjectto change without notice. Printed in U.S.A. 160619-UUM-B-0206
Copyright t_ by Unitary Products Group 2006. All rights reserved. Supersedes: 160619-UUM-A-0106
Unitary 5005 Norman
Products York OK
Group Drive 73069
