York YCAL0043 - FIGURE 21 - Elementary Wiring Diagram Details, Dual Circuit

JOHNSON CONTROLS
69
SECTION 5 – TECHNICAL DATA
FORM 150.67-NM2
ISSUE DATE: 01/31/2019
5

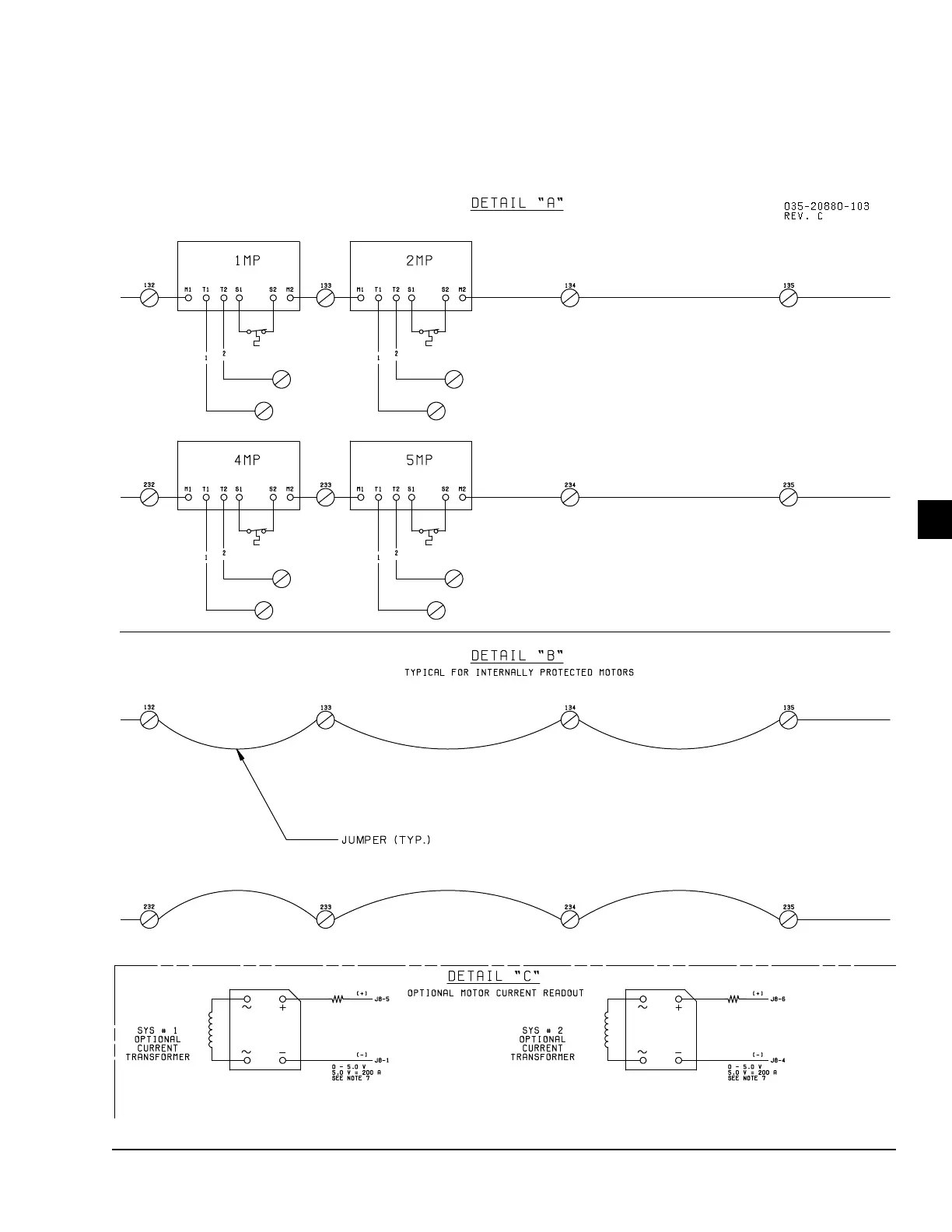

FIGURE 21 - ELEMENTARY WIRING DIAGRAM DETAILS, DUAL CIRCUIT
ELEMENTARY WIRING DIAGRAM DETAILS
LD12689
YCAL0043, 0046, 0052, 0056 & 0066 STANDARD UNITS
YCAL0043, 0046, 0052, 0056 & 0066 STANDARD LOW SOUND UNITS
YCAL0043, 0046, 0052, 0056 & 0066 ULTRA LOW SOUND UNITS
